Wittmann Tempro basic C 90 - Spare Parts of Electric System

Tempro basic C 90 & Tempro primus C 90
Page 61
BASIC & PRIMUS C90 V 3.0 english / 10.04.2012

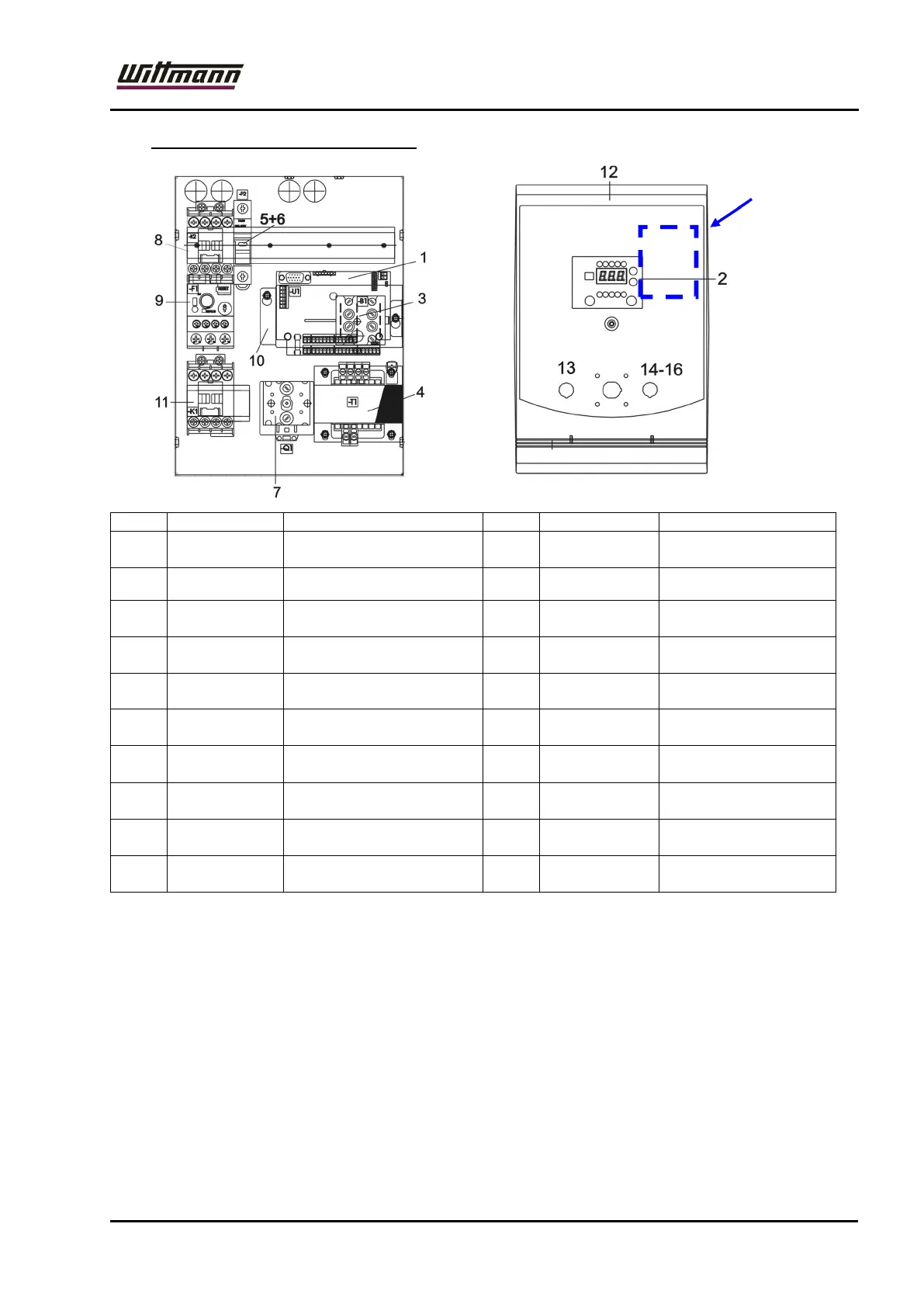

12.3 Spare parts of electric system
Pos.
Art.
-
No
.
Part
Pos.
Art.
-
No
.
Part
1
EA00002175
Board ST04 EW00000768
F1=Thermorelay
4,0 – 6,0 A
2 EA00001949 Board Display 10 EA00001244 Buzzer
3 EA00001197
Safety temperature limiter
11 EW00000721
K1=Contactor 9kW
Heating
4 ET00000211
Trafo 220, 400, 440,
480V /24VAC
12 T700001761 Cover electric
5 EA00001550
F2=Fuse holder
1-pole
13 T500001204 Alarm cable
6 EA00000778 F2=Fuse 500V/0,5A
14 EW00000512
Press key
Button
7 EW00000793
main switch 3x20A
+knob
15 EW00000513
Press key
splash guard
8 EW00000788
K2=Contactor
4kW Pump
16 EW00000514
Press key
cap yellow
9 EW00000590
F1=Thermorelay
1,6 – 2,5 A
17 EA00002072 Interface board
EW00000591
F1=Thermorelay
2,5 – 4,0 A
Pos. 13 – 17 for Tempro primus C 90 not available !!
