11.1.1 Accessories
Art.
-
N
o
.
Description
T5 0000 1338 Option: BASIC external sensor PT 100
D9 0000 0494 external sensor PT 100 diam:6mm/2m with spring and
bayonet plug
D9 0000 0493 external sensor PT 100 diam:6mm/4m with spring and
bayonet plug

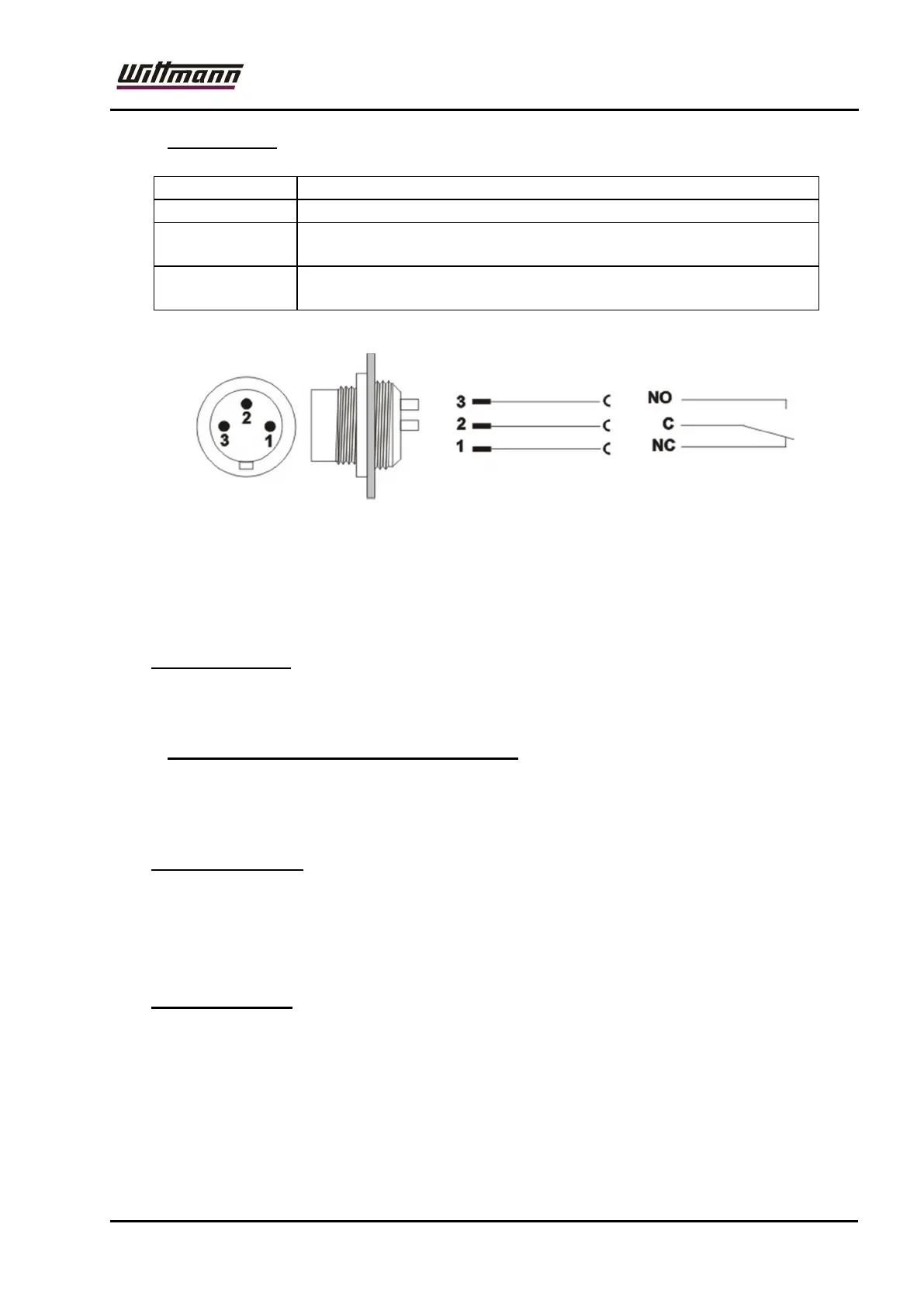

Moreover, a potential-free alarm contact (changeover switch) is activated which
can be reset by pressing any key. (3-pole plug at stabilizer front)
Admissible contact load: 1A at 24V DC / 120V AC
11.2 Serial Interface:
One interface board is required per Tempro basic C 90 .
11.2.1 Interface RS232, RS485, TTY/CL (20mA)
T500001393
This option is installed at works, for the setting to the required interface type, refer
CON-Menu – chapter Operation item 7.17
11.3 Analog Interface:
11.3.1 Interface Basic C / analog
T500001553
4 – 20mA / 0 – 10V / ON-OFF/ALARM
11.4 Interface cables
The standard cable length is 4m, other cable lengths on request.
