Wittmann Tempro basic C 90 - Structure of Mechanic System Tempro Basic C 90

Tempro basic C 90 & Tempro primus C 90
Page 40
BASIC & PRIMUS C90 V 3.0 english / 10.04.2012

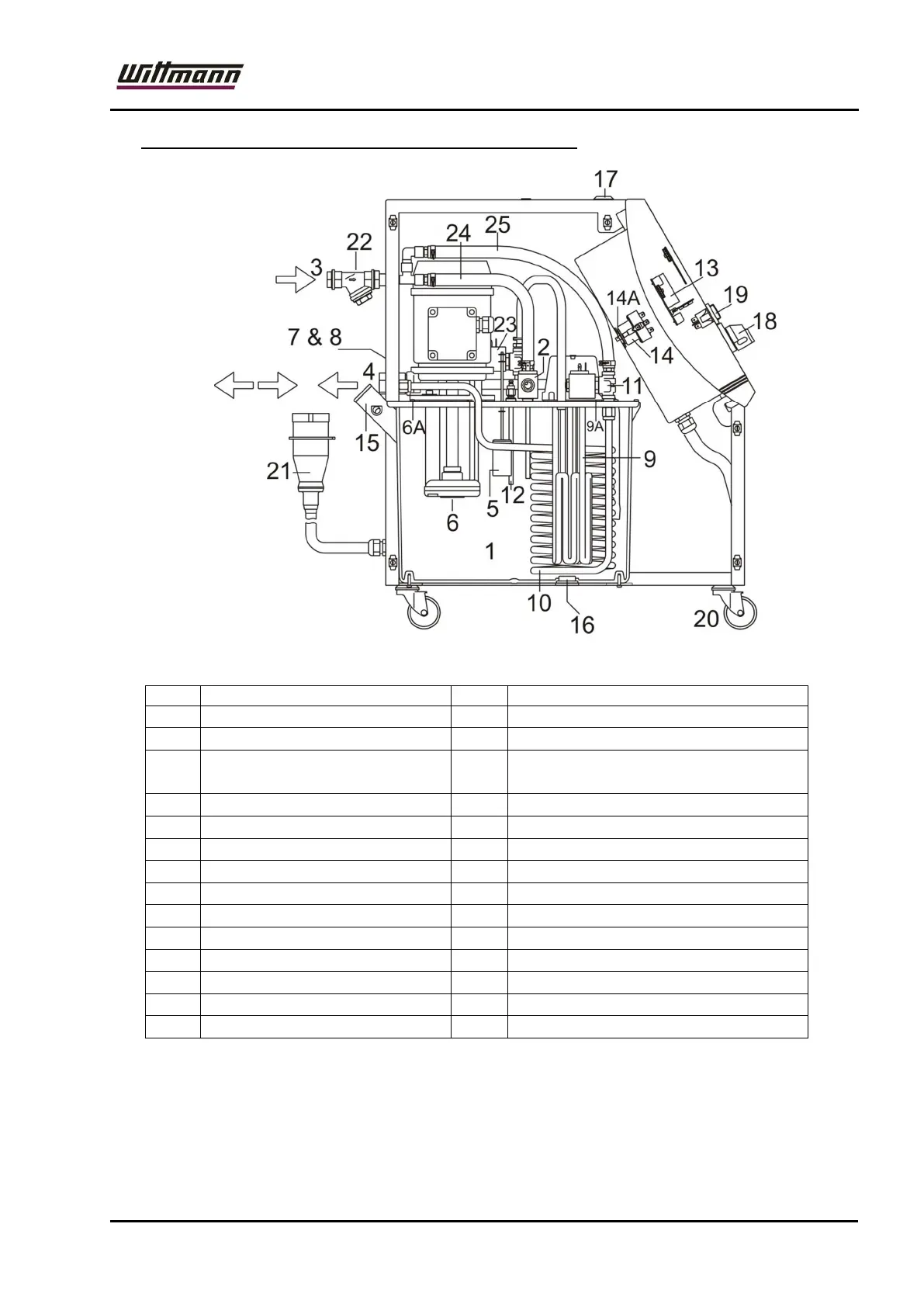

9.3 Structure of mechanic system Tempro basic C 90
N
o
.
Description
N
o
.
Description
1 Heat exchanger 13 Microprocessor controller
2 Filling valve 14 Safety Temperature Limiter
3
Cooling water inlet
14A
Reset button for safety
temperature limiter
4 Cooling water outlet 15 Manual filling (filling socket)
5 Level switch 16 Drain plus
6 Pump 17 Bolt lock
6A Seal for pump 18 Main switch
7 Mould connection-feed 19 Key switch for evacuating
8 Mould connection -return 20 Guide roll
9 Heater element 21 Main connection
9A Seal for heater element 22 Coarse filter
10 Cooling helix 23 Ventilation valve empty suction
11 Cooling valve 24 Hose cold water supply FILLING
12 Temperature sensor PT100 25 Hose cold water supply COOLING
