Wittmann Tempro basic C 90 - Connections on the Rear Side

Tempro basic C 90 & Tempro primus C 90
Page 18
BASIC & PRIMUS C90 V 3.0 english / 10.04.2012
The mains connection cable (4 m) is already mounted on all stabilizers and
provided with a plug (CEE 16A). (Special voltage without plug).
The wiring of the temperature stabilizer is designed for a right-hand 3-phase
network.
In main switch position 1 the pump is running in pressurized operation. (Right-
hand orientation)
Check: Fan wheel of pump motor is running in the arrow direction.
If this is not the case, two phases in the plug of the main connection must be
interchanged.
For safety reasons, the proper function of the protective conductor terminal
should be examined thoroughly.

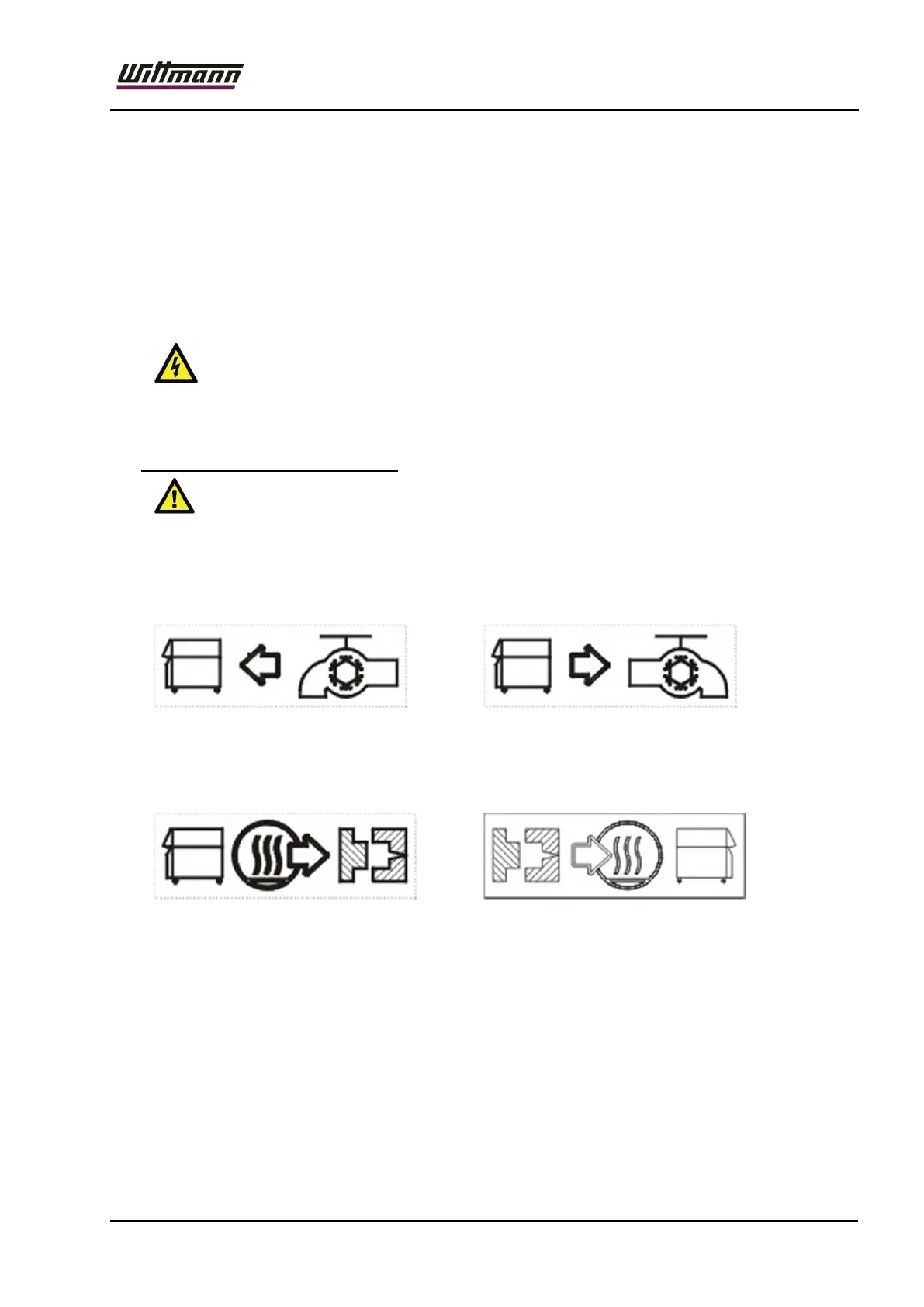

5.4 Connections on the rear side
High temperatures (above 70°C) occur at the exposed parts at the
connection locations of the stabilizer !
RISK OF BURNS!!
(1) COOLING WATER – INLET (2) COOLING WATER – OUTLET
(3) MOULD CONNECTION – FEED (4) MOULD CONNEECTION – RETURN
