Wittmann Tempro basic C 90 - Ferromatik 20 Ma; Krauss Maffei 20 Ma; Battenfeld 20 Ma

Tempro basic C 90 & Tempro primus C 90
Page 53
BASIC & PRIMUS C90 V 3.0 english / 10.04.2012

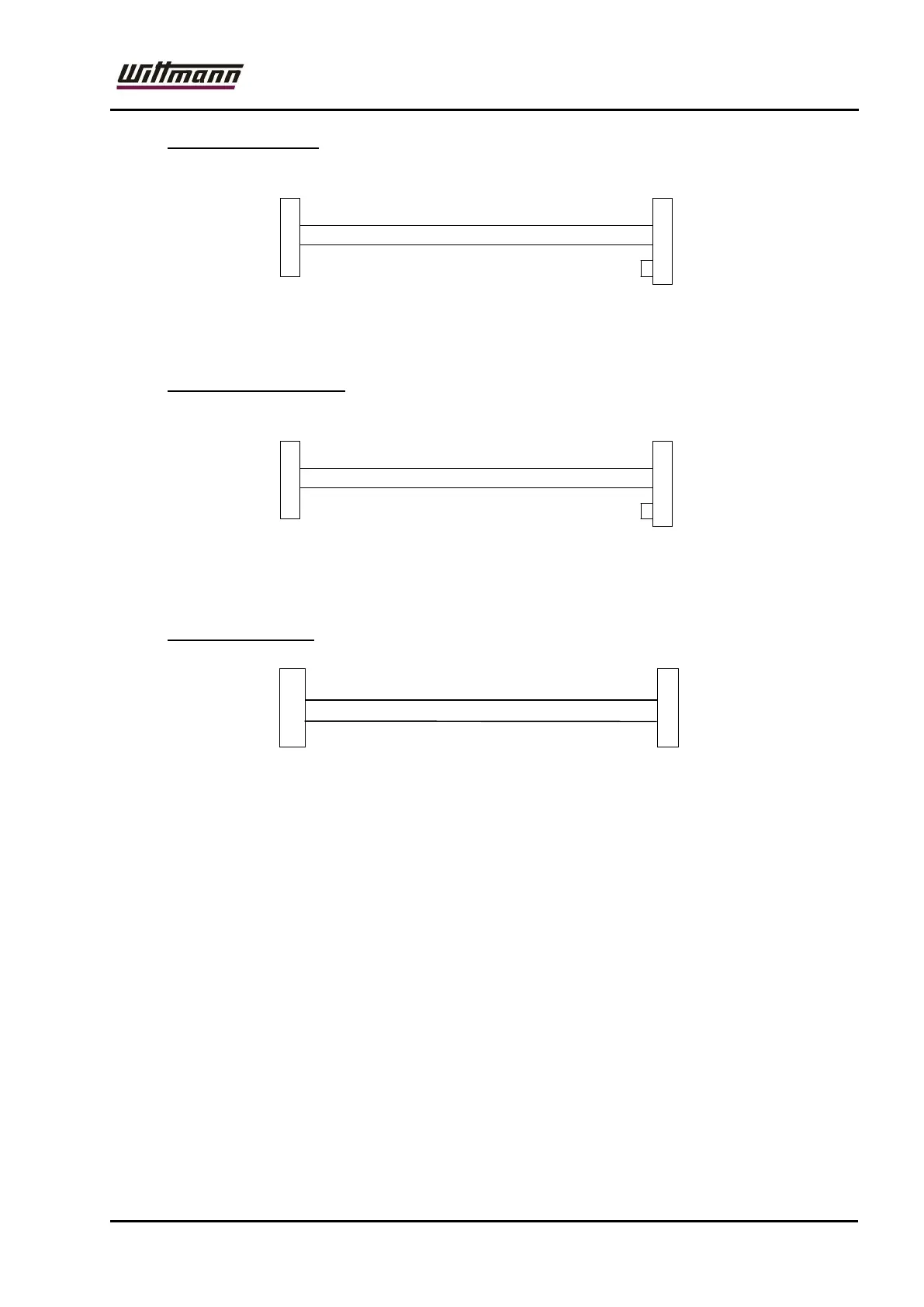

11.4.6 Ferromatik 20mA
T5 0000 1622
TxD + (White)
RxD - (Brown)
13
19
3
7
4
6
IMM: SubD 25-pin MTC: SubD 9-pin
11.4.7 Krauss Maffei 20mA
T5 0000 1626
TxD + (White)
RxD - (Brown)
24
10
3
7
4
6
IMM: SubD 25-pin MTC: SubD 9-pin
housing HAN10A with adapter
11.4.8 Battenfeld 20mA
T5 0000 1618
TxD + (White) 2 3
RxD - (Brown) 3 7
IMM: SubD 9-pin MTC: SubD 9-pin
Other interfaces cables for other machine manufacturers and designs on request.
