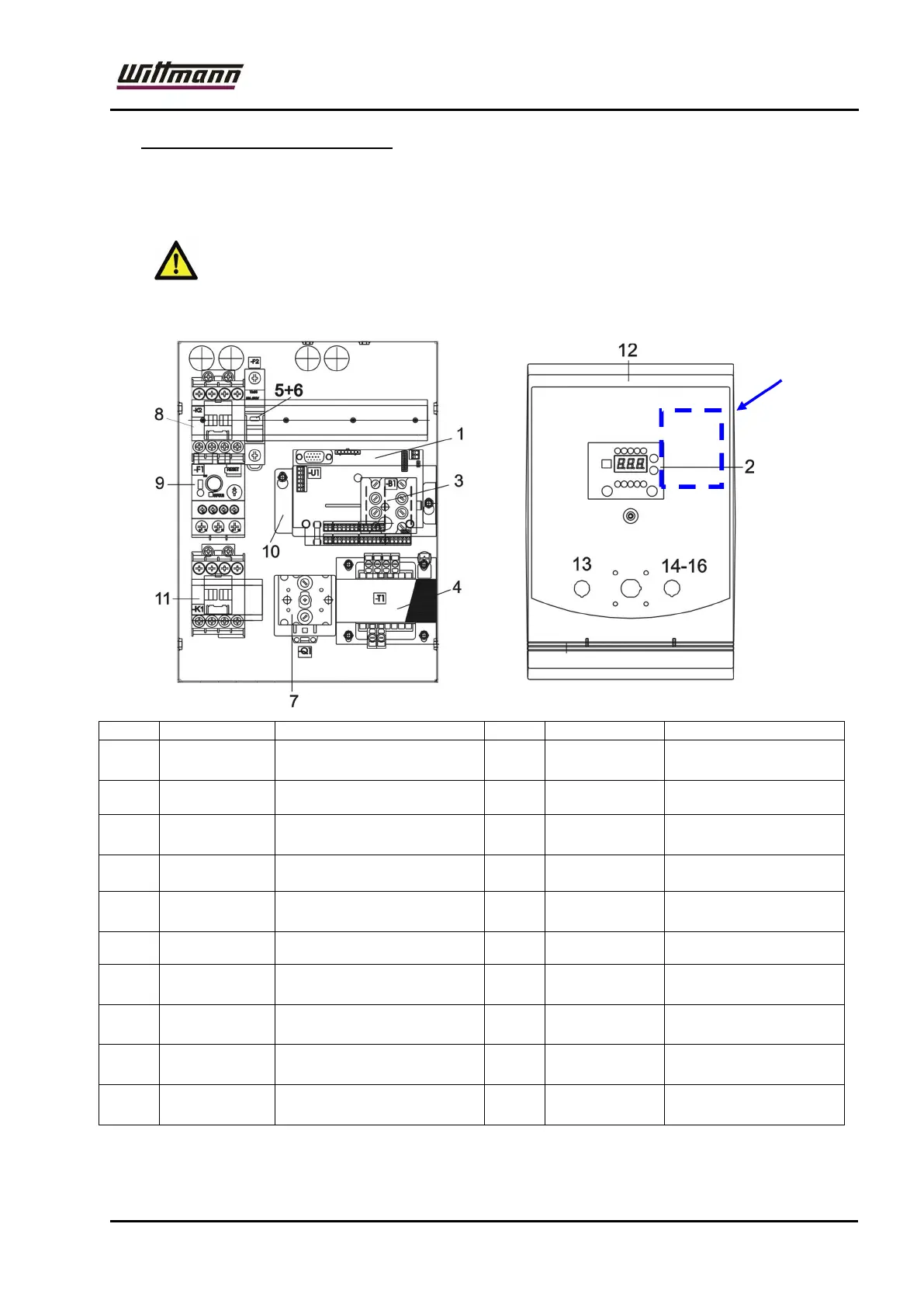

9.8 Structure of electric system:
The electric system can be opened after the main switch has been switched off
and the lock at the stabilizer top has been opened.
Before opening, unplug mains plug!
The stabilizer must be secured externally at the mains (circuit-breaker and
residual- current - operated circuit breaker)
Pos.
Art.
-
N
o
.
Part
Pos.
Art.
-
N
o
.
Part
1
EA00002175
Board ST04
EW00000768
F1=Thermorelay
4,0 – 6,0 A
2 EA00001949
Board Display
10 EA00001244
Buzzer
3 EA00001197
Safety Temperature
Limiter
11 EW00000721
K1=Contactor 9kW
heating
4 ET00000211
Trafo 220, 400, 440,
480V /24VAC
12 T700001761
Cover Electric
5 EA00001550
F2=Fuse holder
1-pole
13 T500001204
Alarm cable
6 EA00000778
F2=Fuse 500V/0,5A
14 EW00000512
Press key button
7 EW00000793
Main switch 3x20A+knob
15 EW00000513
Press key
splash guard
8 EW00000788
K2=Contactor
4kW pump
16 EW00000514
Press key
cap yellow
9 EW00000590
F1=Thermorelay
1,6 – 2,5 A
17 EA00002072 Interface board
EW00000591
F1=Thermorelay
2,5 – 4,0 A
Pos. 13, 14 – 17 not available for Tempro primus C!!
