Installation InformationCT Hoods and DD Ventilation
CT WALL HOOD DUCTWORK INSTALLATION
CONNECT DUCTWORK
Use the screws and wall anchors provided to secure the
upper brackets to the ceiling. Position the upper brackets
based on the dimension of the telescopic chimney fl ue.
(See Figure 2-13)
Use an 8” (203) round metal duct to connect the duct collar
on the hood to the ductwork above. Use duct tape to make
all joints secure and air tight.
Connect the upper section of the telescopic chimney fl ue to
the brackets with the screws provided. (See Figure 2-14)
Nest the bottom of the telescopic chimney fl ue into the
relief in the hood shell.

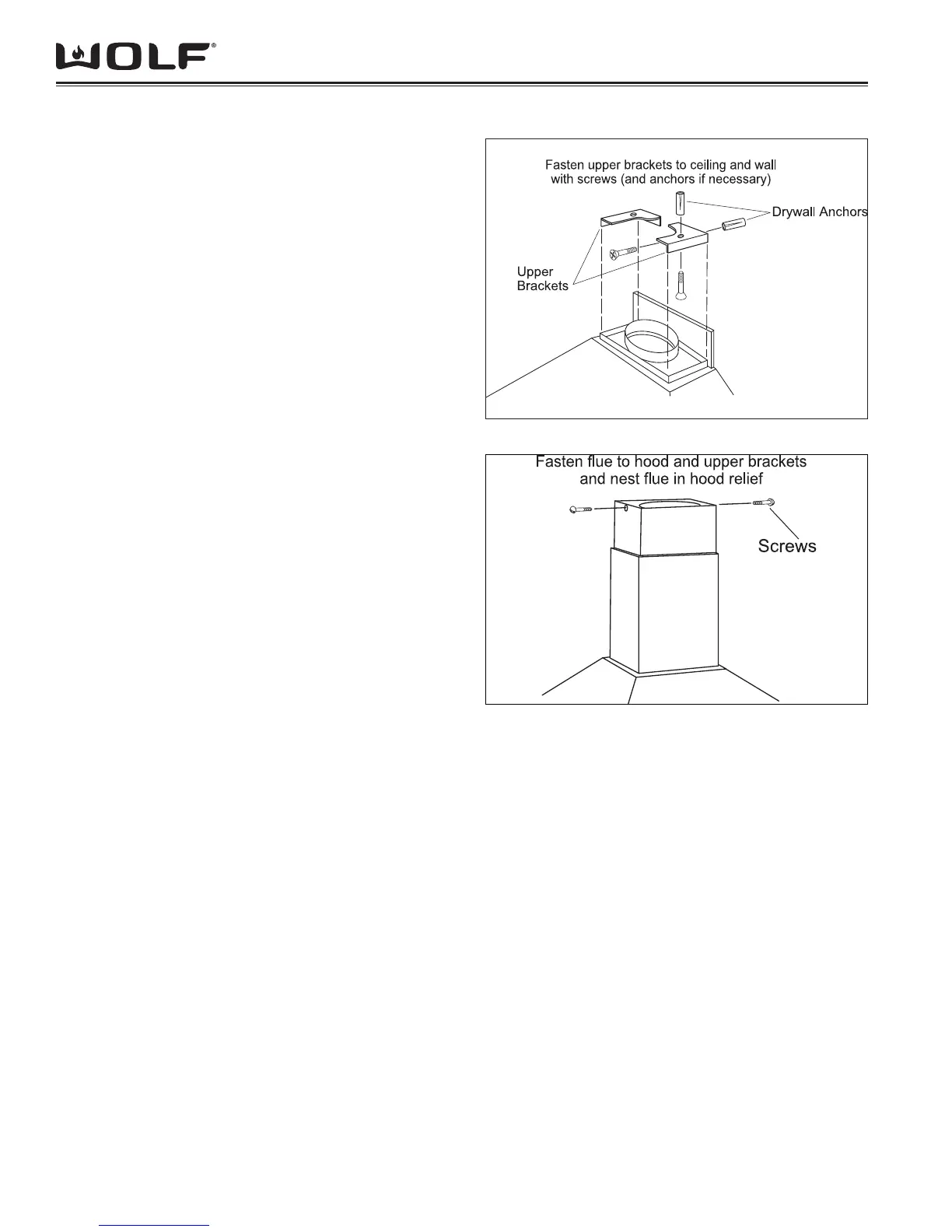

Figure 2-13 Upper Flue Bracket Installation
Figure 2-14 Securing Inner Flue to Upper Flue Bracket
