DOWNDRAFT DIMENSIONS
NOTE: Wolf downdraft ventilation systems are recommended for use with Wolf framed electric, gas, induction and
multi-function cooktops. They cannot be used with unframed electric cooktops and are not recommended for use with
the electric grill, steamer and fryer modules. A Pro ventilation hood must be used with Wolf dual fuel ranges, gas
ranges and rangetops.
Wolf downdraft ventilation systems are available in 30” (762), 36” (914) and 45-1/2”(1156) widths. The downdraft
should be at least as wide as the cooktop. Models DD30I, DD36I and DD45I include a 500CFM internal blower. Mod-
els DD30R, DD36R and DD45R are shipped without a blower assembly.
TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, THIS VENTILATION HOOD SHOULD ONLY BE
INSTALLED WITH BLOWERS MANUFACTURED BY WOLF APPLIANCE INC. AND SPECIFIED FOR USE WITH
THESE VENTILATION MODELS.

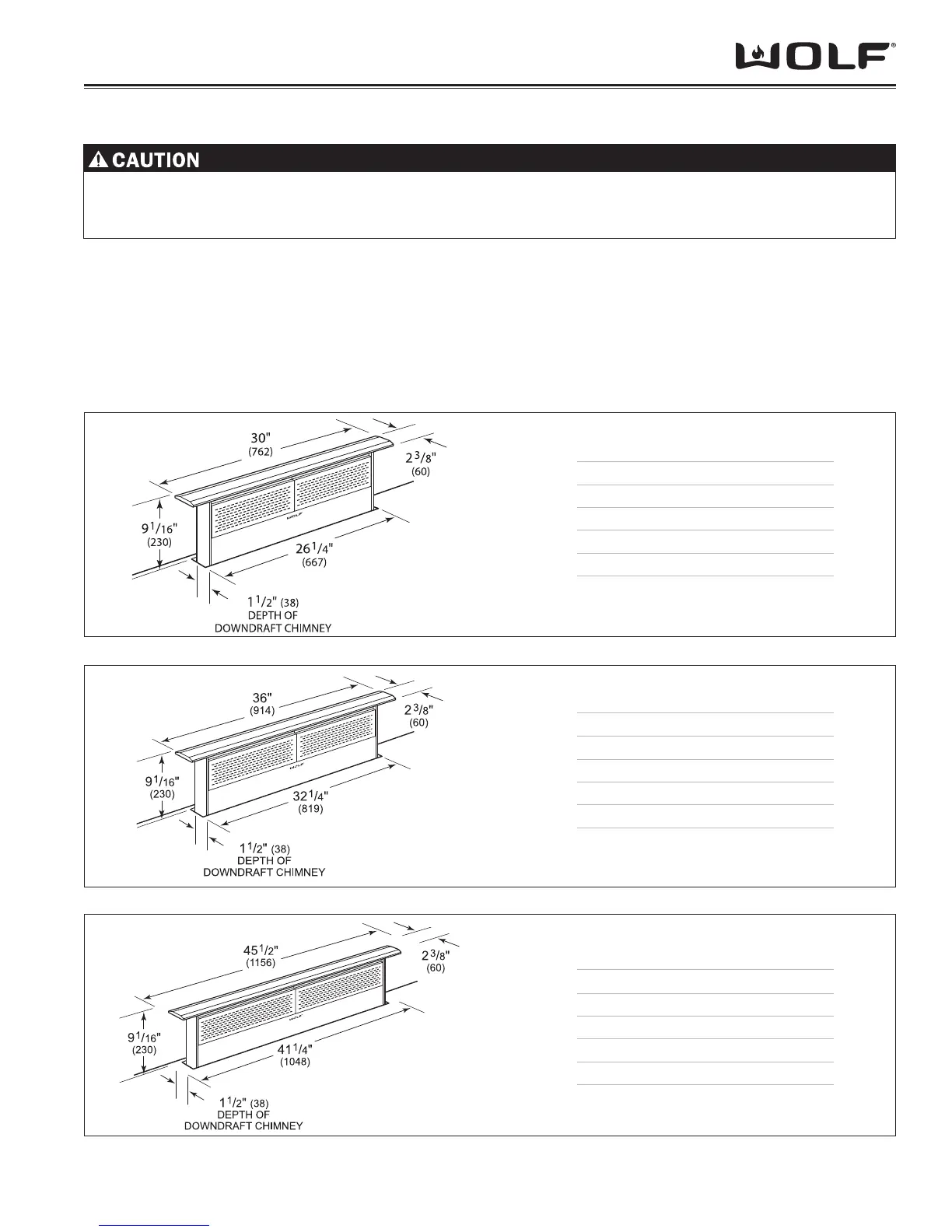

Figure 2-41 Models DD30I & DD30R
Figure 2-42 Models DD36I & DD36R
Figure 2-43 Models DD45I & DD45R
MODELS DD30I AND DD30R
O )267("03htdiW llarev
Width of Chimney 26
1
/4"(667)
Overall Height (above countertop) 9
1
/16"(230)
2htpeD llarevO
3
/8"(60)
Depth of Chimney 1
1
/2"(38)
MODELS DD36I AND DD36R
)419("63htdiW llarevO
Width of Chimney 32
1
/4"(819)
Overall Height (above counter top) 9
1
/16" (230)
Overall Depth 2
3
/8"(60)
Depth of Chimney 1
1
/2"(38)
MODELS DD45I AND DD45R
Overall Width 45
1
/2" (1156)
Width of Chimney 41
1
/4" (1048)
Overall Height (above countertop) 9
1
/16" (230)
Overall Depth 2
3
/8"(60)
Depth of Chimney 1
1
/2"(38)
Dimensions may vary to
+
–
1
/8"(3).
Dimensions may vary to
+
–
1
/8"(3).
Dimensions may vary to
+
–
1
/8"(3).
