2-22
Installation InformationCT Hoods and DD Ventilation
INSTALLATION SPECIFICATIONS
Wolf downdraft Model DD30 will fi t most 30”
(762) wide cabinets, Model DD36 will fi t most
36” (914) wide cabinets and Model DD45 will
fi t most 45-1/2”(1156) wide cabinets. It is
recommended that oversized cabinets be used
for easier installation. Cabinet backs may need
to be removed. Wolf downdraft ventilation
systems can be mounted in an island, peninsula
or standard wall location.
NOTE: To install a downdraft system and a
Wolf cooktop, you must allow for a minimum
25-1/8”(638) fl at counter space from front
to back. A countertop with a raised lip or
backsplash may not allow enough space for
proper installation. 2-3/8”(60) of fl at countertop
is required behind the cooktop and 1-3/4”(44)
is necessary between the back edge of the
cooktop and inside of cabinet back.
If downdraft Model DD30 is installed in
combination with two cooktops or integrated
modules, an integrated module support
(available as a sales accessory) for downdraft
ventilation is required. Model DD45 does not
require this accessory. If optional fi ller strips are
used with the cooktops or modules, be aware
that they are different for the Model DD30 and
DD45. Be sure to use the correct fi ller strip.
For installation of a downdraft system with
a cooktop, refer to the cooktop installation
instructions for the dimensions of the cooktop,
countertop cut-out and cabinet requirements.
The depth of the cooktop may vary and will
affect the location of the downdraft in the
countertop. Figure 2-45 provides countertop
cut-out dimensions for downdraft Models DD30,
DD36 and DD45 installed with a Wolf 30”(762)
or 36” (914) cooktop or combination of cooktop
and/or modules.

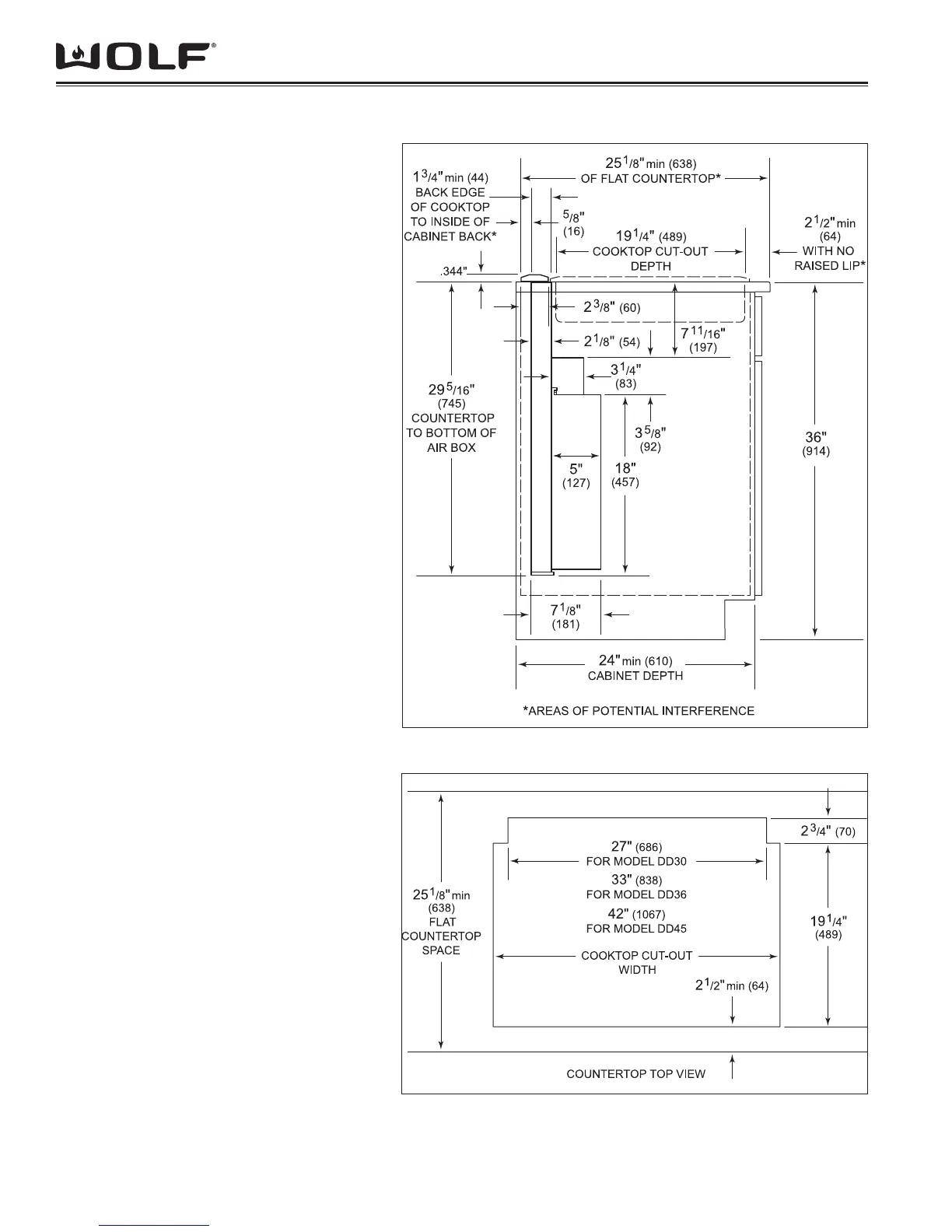

Figure 2-44 Side View Installation Dimensions
Figure 2-45 Top View Installation Dimensions
DOWNDRAFT INSTALLATION SPECIFICATIONS
