Wolf CT - Internal Blower Removal

Access & Removal CT Hoods and DD Ventilation
4-9
INTERNAL BLOWER REMOVAL
Disconnect electrical supply. (see WARNING above)1.
NOTE: For Island Hood Internal Blower Removal
Skip to Step 6. Motor connector located inside motor
housing and should be disconnected there.
Slide the bottom section of chimney fl ue up to gain 2.
access to the controls. (See Figure 20)
Remove the Control Board housing cover, cable 3.
clamp and cable tie that secure the motor harness.
Unplug CN1 by gripping the connector and pulling
straight out. (See Figure 21)
Remove the nut from the grounding stud and free the 4.
blower ground wire. (See Figure 21)
Feed the blower wire harness and ground wire down 5.
through the wire routing hole. (See Figure 22)
Remove the Drop Plate and Filter(s) (Page 4-7). 6.
Remove the Inner Panel. 7.
NOTE: Do not forget to unplug Heat Sentry once
Inner Plate screws are removed.
Remove screws (4) that fasten the bottom bracket to 8.
the hood. (See Figure 4-23)
(Continued on next page)
TO AVOID ELECTRIC SHOCK, POWER TO THE
VENTILATION UNIT MUST BE DISCONNECTED
WHENEVER PERFORMING THE FOLLOWING
REPAIRS.
CN1 Connector
Motor Ground
Wire
Control
Board
Housing

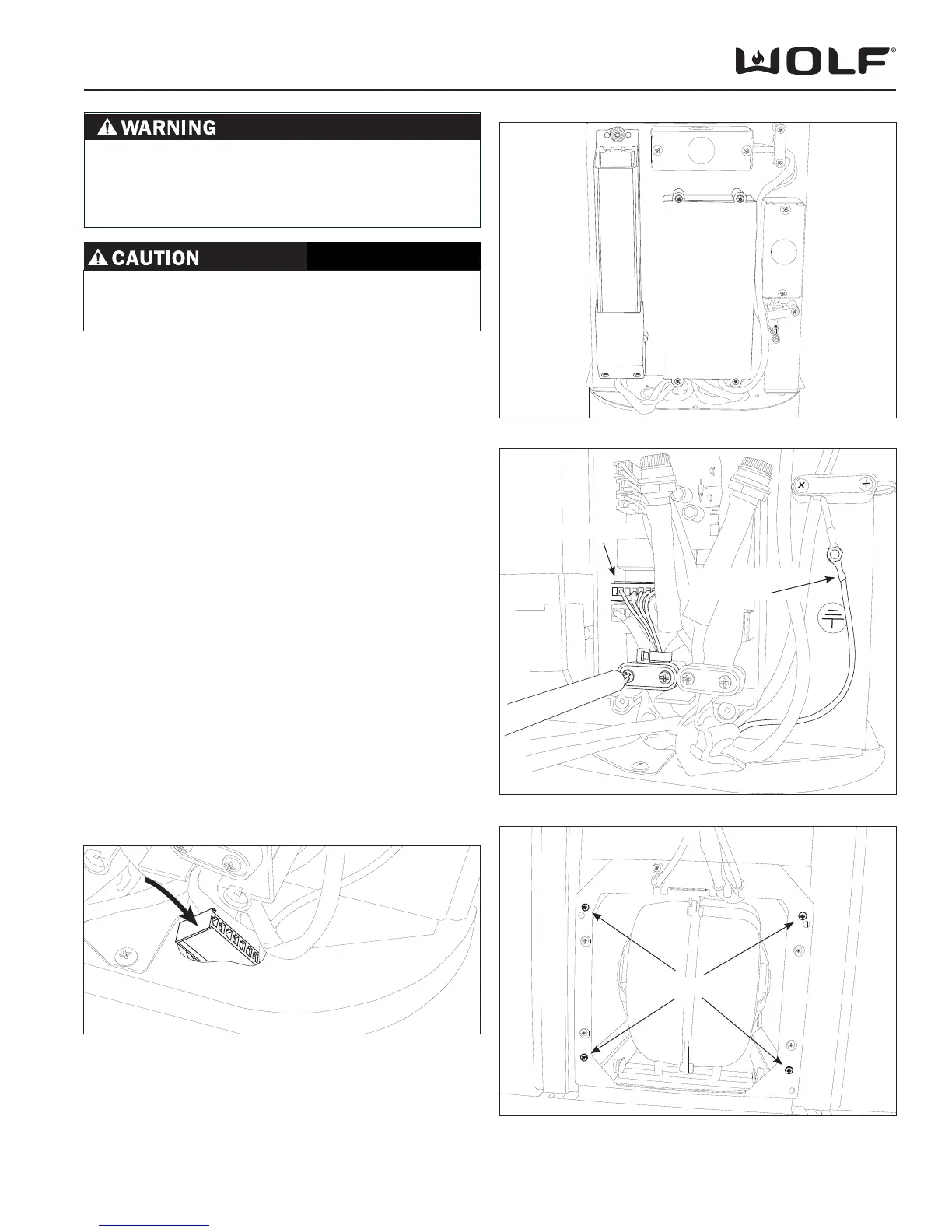

Figure 4-20 Control Panel Location
Figure 4-21 Motor Connector and Ground Wire
Figure 4-22 Connector
Figure 4-23 Bottom Bracket Screws
Screws (4)
ALWAYS WEAR GLOVES WHEN HANDLING SHEET
METAL DUE TO THE POSSIBILITY OF SHARP
EDGES.
