Wolf CT - Transformer

Access & RemovalCT Hoods and DD Ventilation
4-6
TRANSFORMER REMOVAL
NOTE: Refer to all WARNINGS and CAUTIONS at be-
ginning of this section.
To access the transformer the lower section of the tele-
scoping chimney fl ue must be raised off of the hood and
temporarily secured in place. The transformer is located
on the top right side of the hood frame and is secured to
the hood with screws.
To replace the transformer, (See Figure 9 & 10):
Raise lower section of chimney fl ue off of hood frame 1.
and temporarily secure in position.
Extract screws securing the transformer wire cover to 2.
transformer and remove from unit.
With a fl at bladed screwdriver, loosen set screws se-3.
curing wires to transformer terminals. Pull wire leads
out of transformer.
Extract screw from front of transformer. Slide trans-4.
former out from under mounting bracket.
FUSE REMOVAL
NOTE: Electrical shock hazard. Refer to WARNING at
beginning of section.
To access the fuse the lower section of the telescoping
chimney fl ue must be raised off of the hood and tempo-
rarily secured in place. The control box is located on the
upper right side of the hood frame. The fuse is located in
a fuse holder inside the control box.
To remove the fuse,
Raise lower section of chimney fl ue off of hood frame 1.
and temporarily secure in position.
Extract screws 2. securing the control panel cover
to control box and remove cover. (See Figure 11)
Grasp top section of fuse holder with fi ngers and 3.
turn counterclockwise. Pull cap and fuse out of fuse
holder. (See Figure 12)

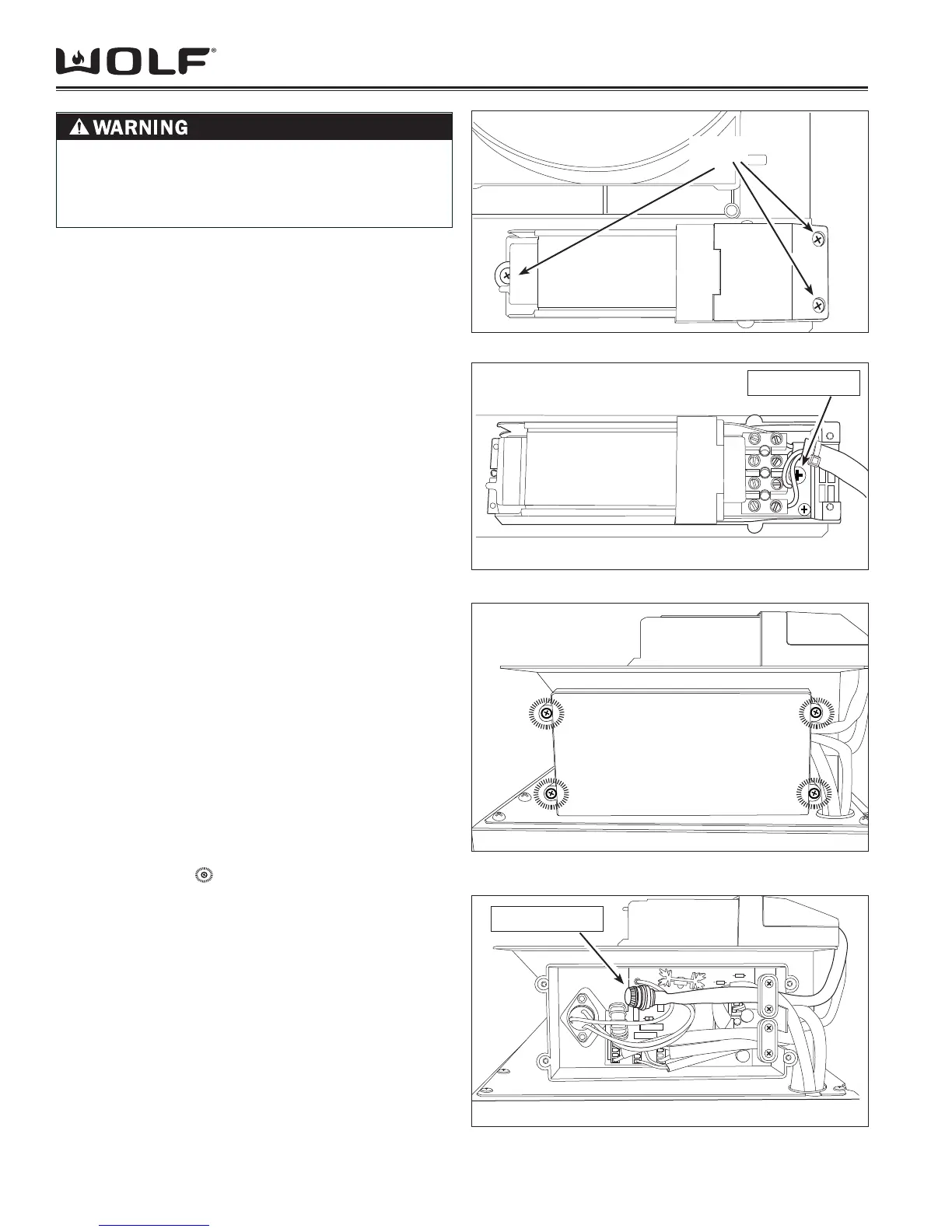

Figure 4-9 Transformer Removal
Figure 4-12 Fuse Removal
Figure 4-11 Control Box Cover Removal
Figure 4-10 Disconnect Wire Harness
Control Box
Cover
Wire
Cover
Screws
Mounting Screw
Fuse Holder
TO AVOID ELECTRIC SHOCK, POWER TO THE
VENTILATION UNIT MUST BE DISCONNECTED
WHENEVER PERFORMING THE FOLLOWING
REPAIRS.
