HALOGEN BULB AND LIGHT ASSEMBLY REMOVAL
NOTE: See Caution above.
The halogen bulb may be removed without removing
the lamp assembly. With a small fl at bladed screwdriver
or fi ngernails, pry out metal retaining clip securing the
lens to the lamp assembly, using care not to damage the
retainer or lens. (See Figure 2)
The halogen bulb has two metal electrodes that press
into the socket of the lamp assembly.
To remove the light assembly, the fi lters must be removed
fi rst, then (See Figure 3):
Reach inside of hood cavity behind lamp assembly, 1.
depress the retaining clips and push lamp assembly
through lamp-holder support.
Turn lamp assembly 90 degrees and slide lamp as-2.
sembly through the clearance slots cut in the lamp-
holder support.
With wire cutters, cut wire leads leading to lamp as-3.
sembly.
Splice wires from new lamp assembly to wire har-4.
ness. Use shrink wrap to seal wire splice.

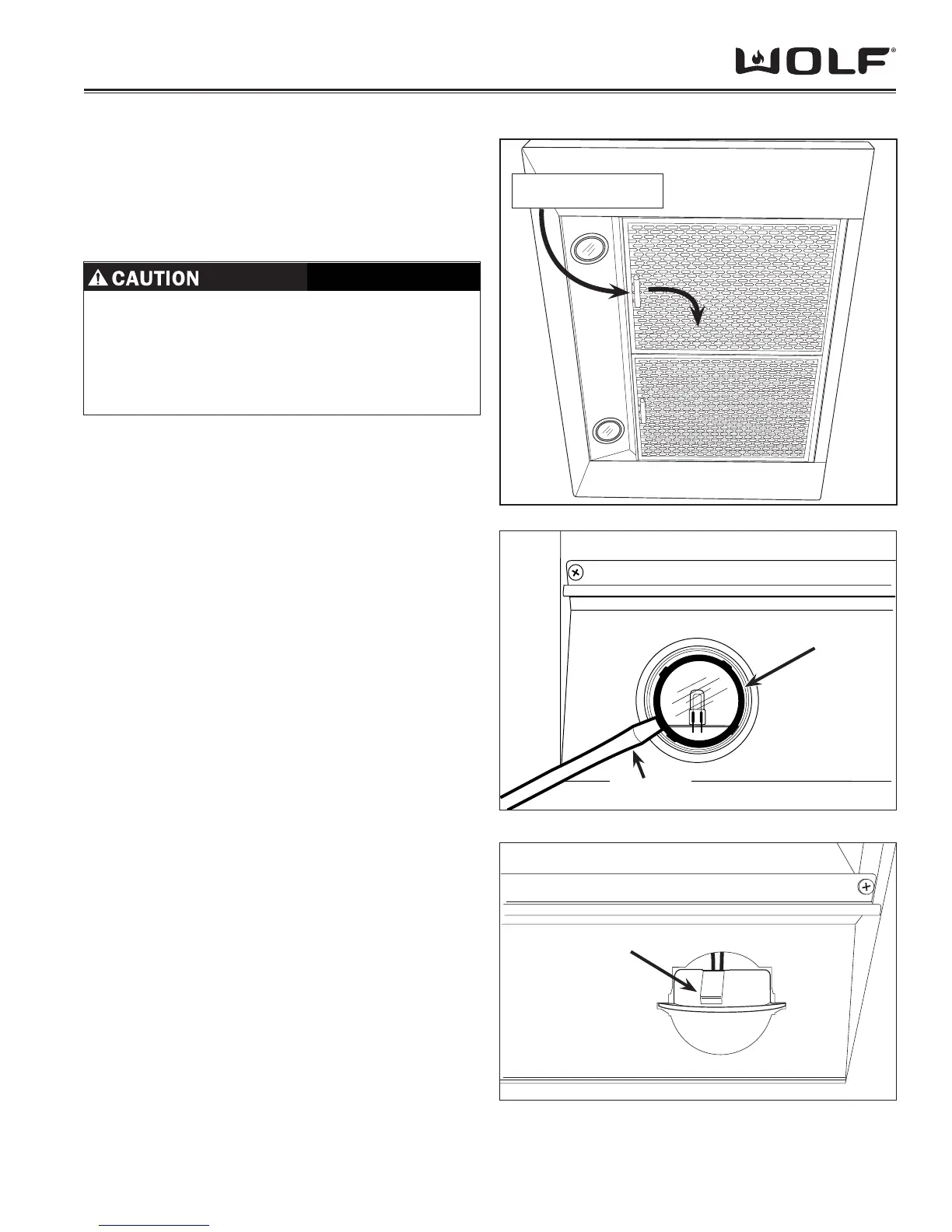

Figure 4-1 Filter Removal
COMPONENT ACCESS AND REMOVAL FOR MODELS CTWH & IH
FILTER REMOVAL
NOTE: See
Caution at the beginning of this section.
From the underside of wall hood, grab onto fi lter handle
and push back against the spring retainer, then pull down
and out of the wall hood. (See Figure 1)
Make sure bulb is cool before touching. Halogen bulbs
get hot instantly and adjacent parts may retain heat.
Do not touch replacement bulb with bare hands. Use a
paper towel or cloth when handling bulb to keep oil from
fi ngers from touching bulb.
Figure 4-2 Lens Retainer Clip Removal
Figure 4-3 Lamp Assembly Removal
Push toward the rear of
the unit, then pull down
Screwdriver
Retaining Clip
Retaining Clip
