Wolf CT - Page 73

Wiring / Schematics CT Hoods and DD Ventilation
7-7

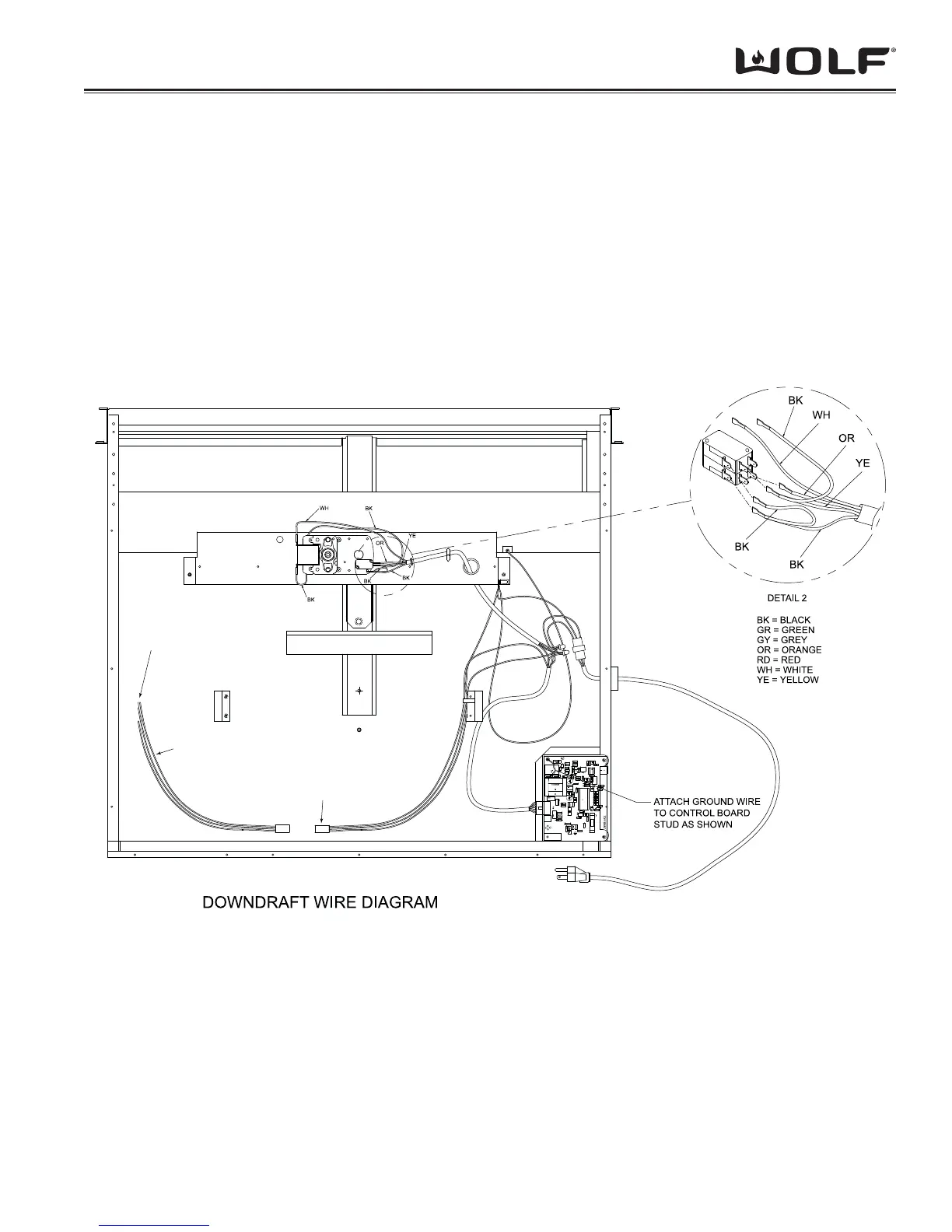

MODEL DD30 & DD36 WIRING DIAGRAM
THIS HARNESS IS
USED IN UNITS
W/REMOTE BLOWER
* see note
THIS END OF WIRE HARNESS
IS TO BE CONNECTED TO
INTERNAL BLOWER
THIS END IS TERMINATED
IN JUNCTION BOX IN
ADAPTER PLATE
* NOTE: Remote Blower harness contains a black
wire that connects to a red wire in the internal
blower harness.
