7.5.3 Installation
Apply lubricating grease onto the bottom bearing steel
bowl and confirm the number of steel balls (23balls).
Steering handle shall not be rotated in case of steel ball
falling off; then install steering rod.
Support the steering handle and apply lubricating
grease on to the top bearing steel bowl and confirm the
number of steel balls (19 balls)
Apply lubricating grease on the top holder race.
Turn steering handle left and right to have steel balls
closely fit.
Tools:
Locknut wrench
Rotate the front fork left and right to be sure of its
smoothness and there shall be no looseness.
Procedures：
Install it in the reverse order of removal.
Before installing the front fork, tighten pinch bolt first.
Make sure that the end of inner fork pipe is parallel and level with handle head.
Tighten lower bracket pinch bolt（6）and steering stem pinch bolt（17）.

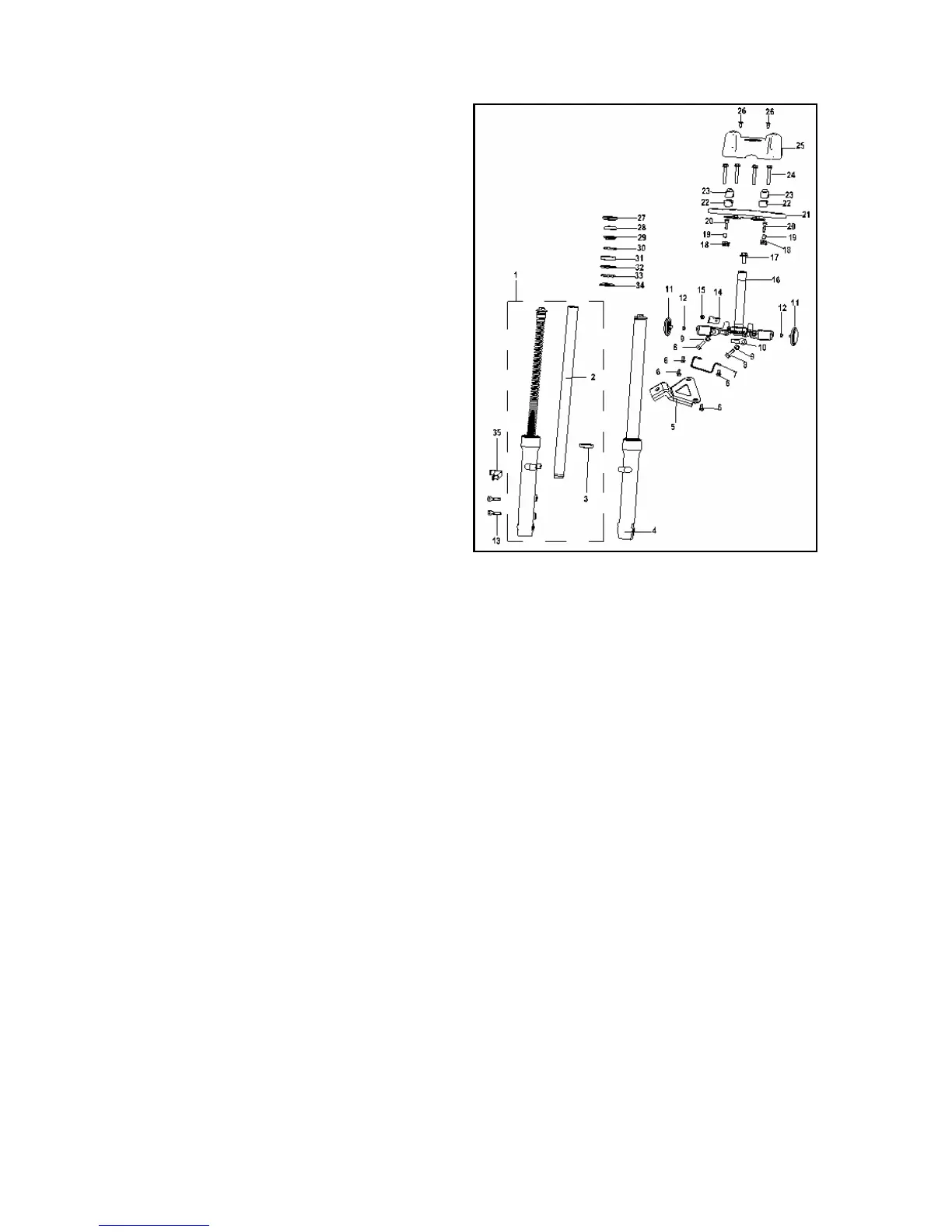

* Note: Refer to Page 97 of the manual for QJ125 Motorcycle front fork disassembly and assembly diagram.
