Rear Wheel/Rear Suspension

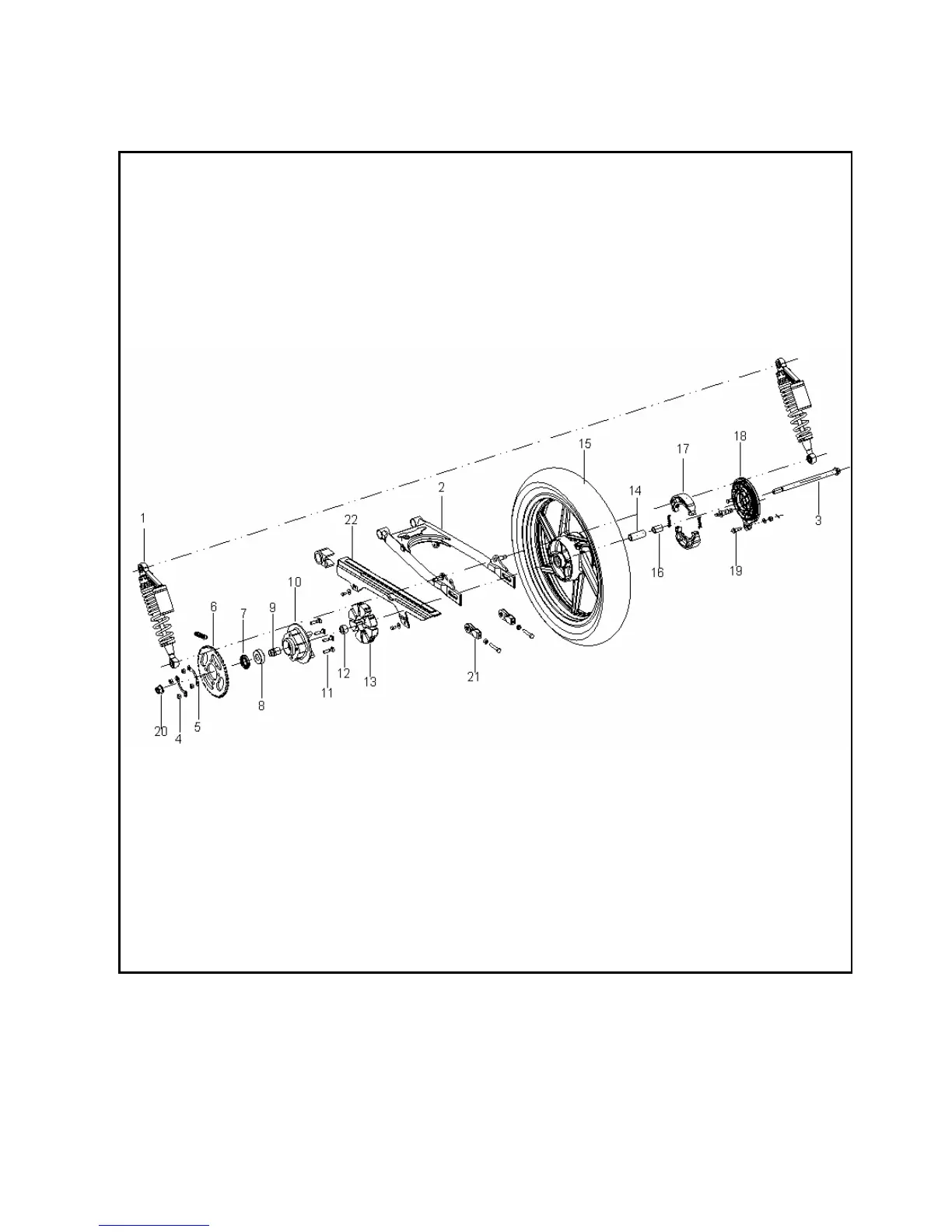

1 Rear shock absorber assembly 2 Rear brake rocker arm 3 Rear shaft 4 Nut M8 5 Sprocket stopper 6

Sprocket 43 teeth 7 Oil seal 8 Rolling bearing 6204-2RS 9 Chain drive sleeve 10 Sprocket hub 11

Sprocket mounting bolt 12 Rear wheel left sleeve assembly 13 Rear wheel buffer 14 Bearing spacer 15

Tubeless tyre 16 Rear wheel left sleeve 17 Rear braking shoe 18 Rear wheel hub 19 Bolt 20 Locking nut

M14×1.5 21 Chain adjuster assembly 22 Chain guard
