Remove gear display.
Remove cam shaft limit plate and take down cam assembly.
Remove bearing locating device.

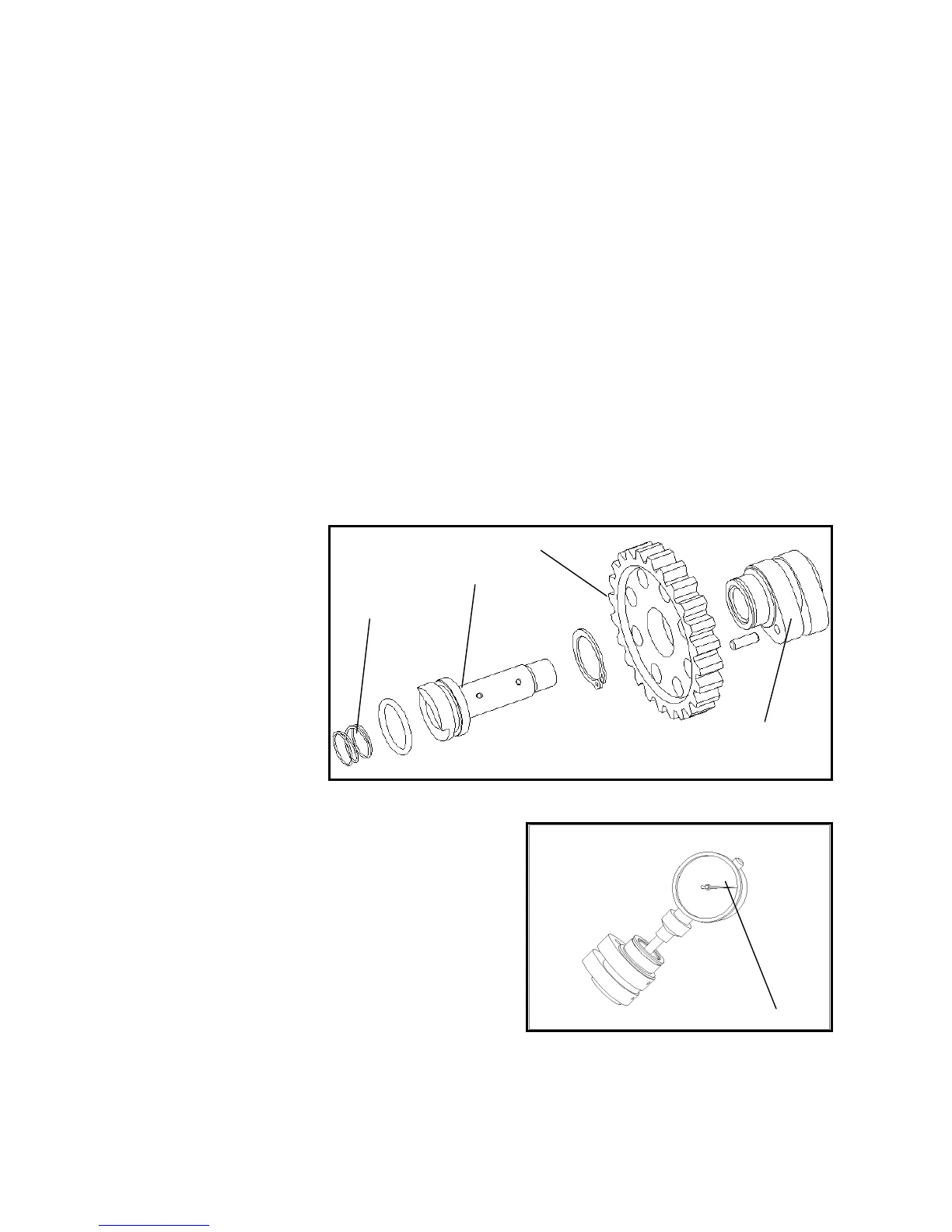

16.3.2 Exploded View of Cam Assembly
Measure cam bush ID.
Allowable limit: 14.10mm.
Measure cam height
Allowable limit: 32.5mm.
Cam shaft spring
Cam mechanism shaft
Camshaft gear
Cam
