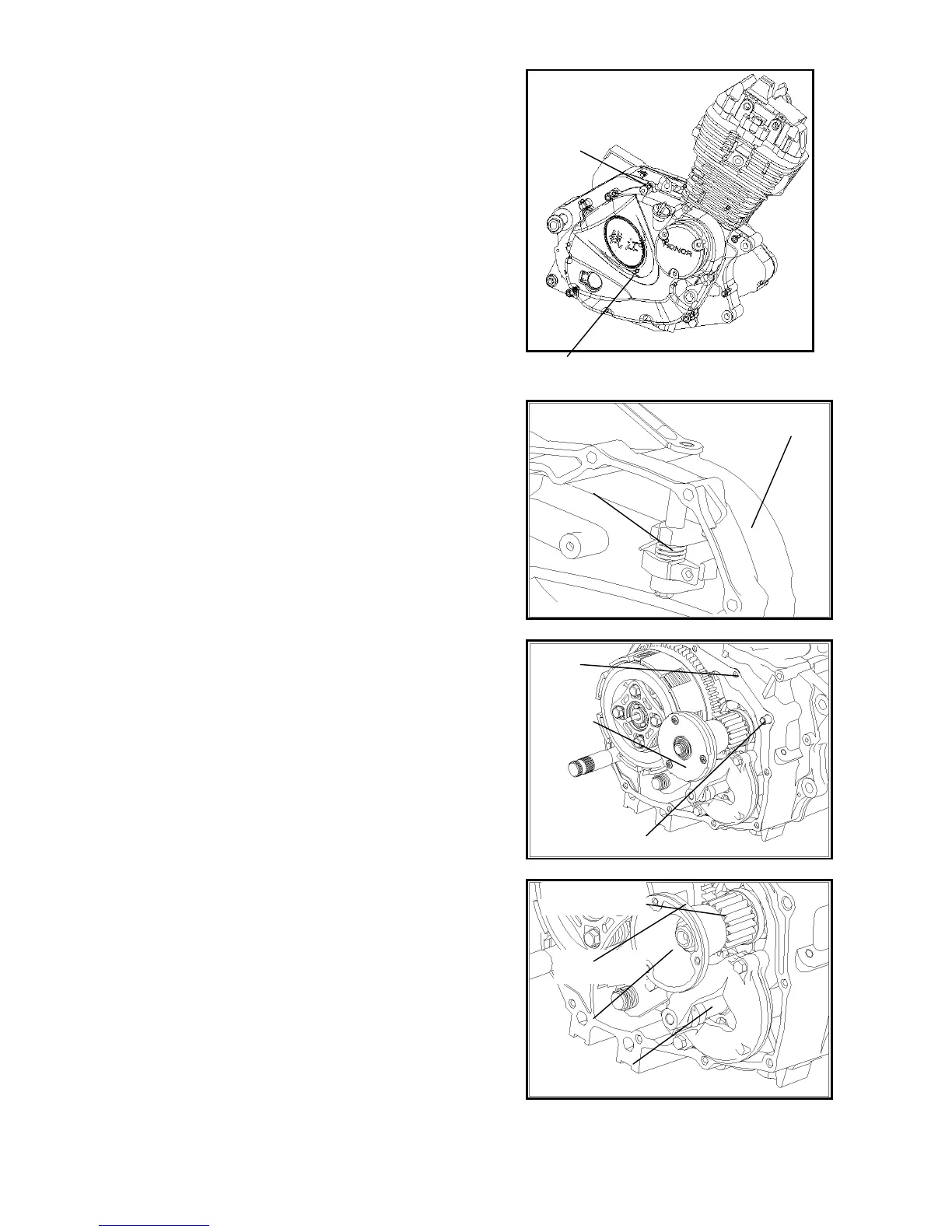

16.3.3 Crankcase Right Cover Removal
Screw off mounting bolt and take down the crankcase right
cover.
Remove clutch release lever assembly from the right cover.
Remove screws, engine oil filter roller cover and its cover
washer.
Remove washer and location pin.
Use an electric or pneumatic tool to screw off locknut.
Remove oil filter roller and take down the drive gear.
Screw off engine oil pump screws and remove oil pump
assembly.
Tester
Release lever
assembly
Right cover
Washer
Cover of oil
filter roller
Drive chain
Locknut
Oil filter roller
Oil pump
Location pin
Bolt
Right cover
