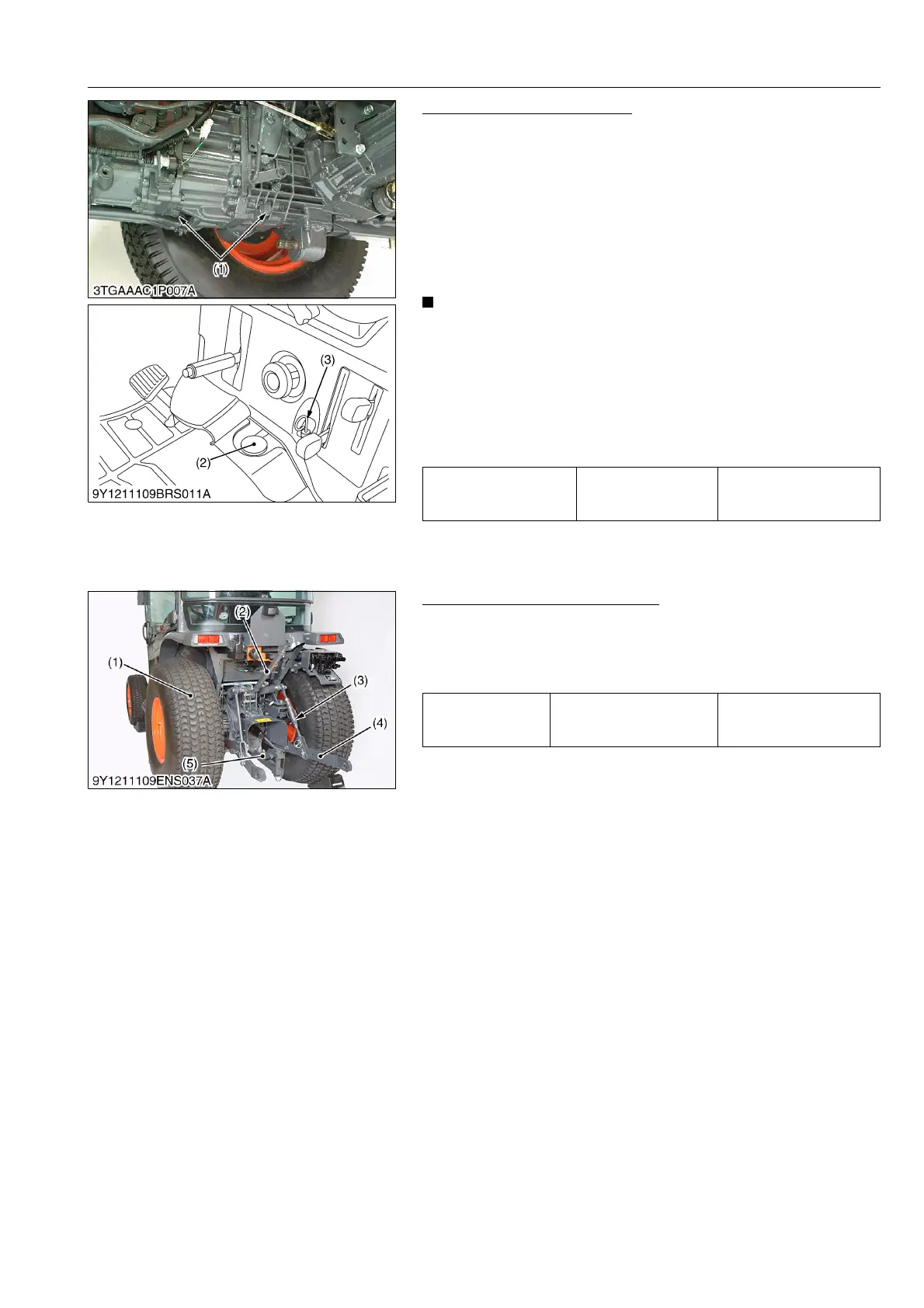

Draining Transmission Fluid
1. Place an oil pan underneath the transmission case, and remove
the drain plugs (1).
2. Drain the transmission fluid.
3. Reinstall the drain plugs (1).
(When reassembling)
• Fill new oil from filling port after removing the filling plug (2) up
to the upper notch on the dipstick (3).
• After running the engine for few minutes, stop it and check the
oil level again, if low, add oil prescribed level.
• Use only KUBOTA SUPER UDT fluid. Use of other oils may
damage the transmission or hydraulic system.
Refer to "4. LUBRICANTS, FUEL AND COOLANT" on page
G-8.
• Never work the tractor immediately after changing the
transmission oil. Keeping the engine at medium speed for
a few minutes to prevents damage to the transmission.
• Do not mix different brands oil together.
9Y1211109ENS0131US0
Rear Wheel and 3-Point Linkage
1. Place the disassembling stand under the transmission case.
2. Remove the rear wheels (1).
3. Remove the top link (2), lift rods (3) and lower links (4).
4. Remove the drawbar (5).
9Y1211109ENS0037US0
Transmission fluid Capacity
24 L
6.3 U.S.gals
5.3 Imp.gals
(1) Drain Plug
(2) Filling Plug
(3) Dipstick
Tightening torque
Rear wheel mounting
screw and nut
196.1 to 225.6 N·m
20.0 to 23.0 kgf·m
145 to 166 lbf·ft
(1) Rear Wheel
(2) Top Link
(3) Lift Rod
(4) Lower Link
(5) Drawbar
