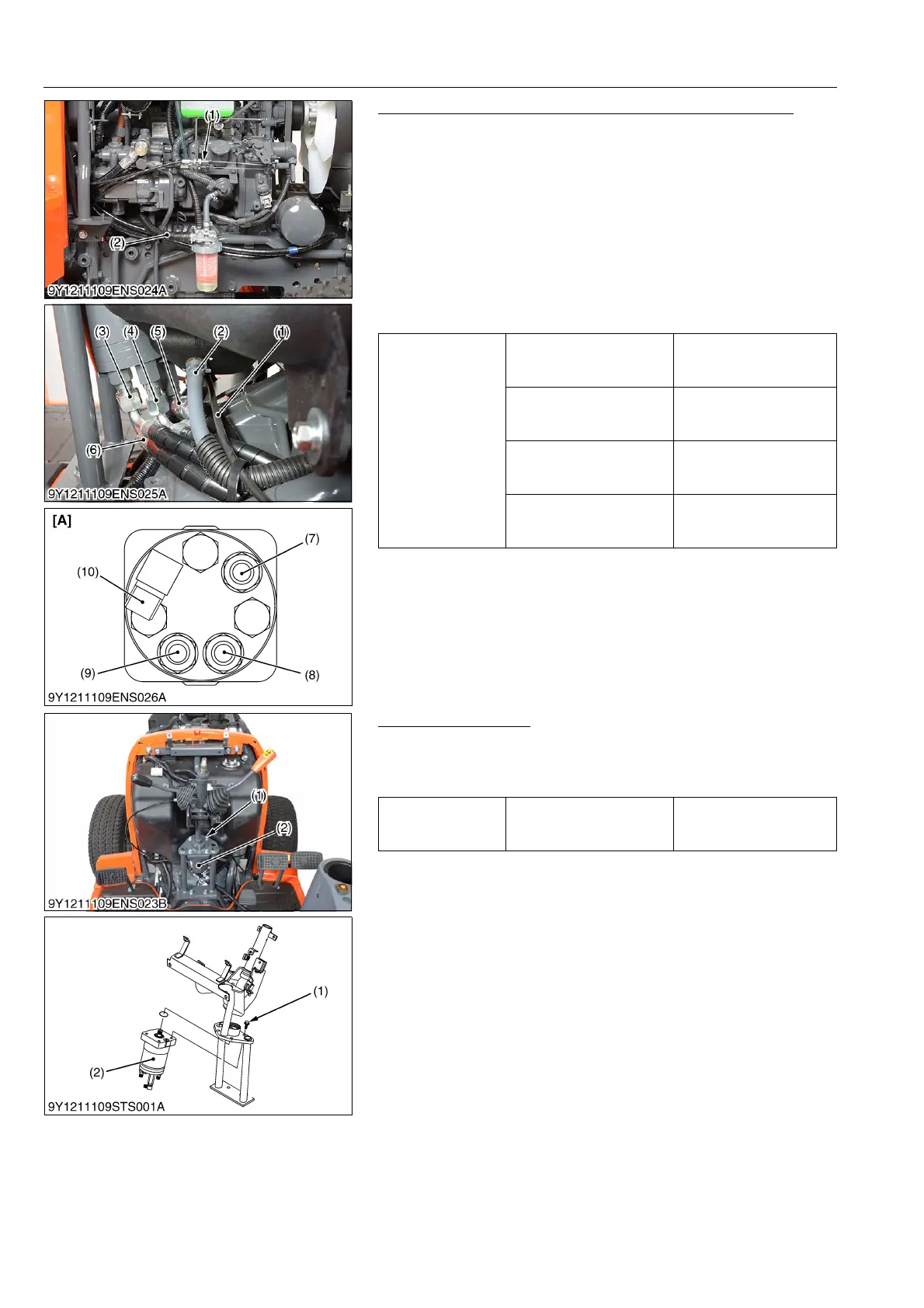

Power Steering Hoses and Accelerator Wire (Right Side)
1. Disconnect the accelerator wire (1) from the engine.
2. Disconnect the fuel hose (2).
3. Disconnect the delivery hose L.H. (3) and delivery hose R.H. (4)
from the steering controller.
4. Disconnect the power steering delivery hose (6) from the
steering controller.
5. Disconnect the power steering return hose (5) from the steering
controller.
(When reassembling)
• Be sure to connect the each hose to original position.
• Be sure to check the hose joints do not interfere in other joints.
9Y1211109ENS0028US0
Controller Assembly
1. Remove the steering controller mounting screws (1) and then
remove the steering controller assembly (2).
(When reassembling)
9Y1211109STS0010US0
Tightening torque
Delivery hose R.H. (4)
retaining nut
24.5 to 29.4 N·m
2.5 to 3.0 kgf·m
18.1 to 21.7 lbf·ft
Delivery hose L.H. (3)
retaining nut
24.5 to 29.4 N·m
2.5 to 3.0 kgf·m
18.1 to 21.7 lbf·ft
Return hose retaining nut
34.3 to 44.1 N·m
3.5 to 4.5 kgf·m
25.3 to 32.5 lbf·ft
Delivery hose joint screw
45.1 to 53.0 N·m
4.60 to 5.40 kgf·m
33.3 to 39.0 lbf·ft
(1) Accelerator Wire
(2) Fuel Hose
(3) Delivery Hose L.H.
(4) Delivery Hose R.H.
(5) Power Steering Return Hose
(6) Power Steering Delivery Hose
(7) P Port
(8) LT Port
(9) RT Port
(10) T Port
[A] Viewed from Bottom Side
Tightening torque
Steering controller
mounting screw
24 to 27 N·m
2.4 to 2.8 kgf·m
18 to 20 lbf·ft
(1) Steering Controller Mounting Screw (2) Steering Controller Assembly
