CABIN
STW34, STW37, STW40, WSM
10-S55
[3] SERVICING

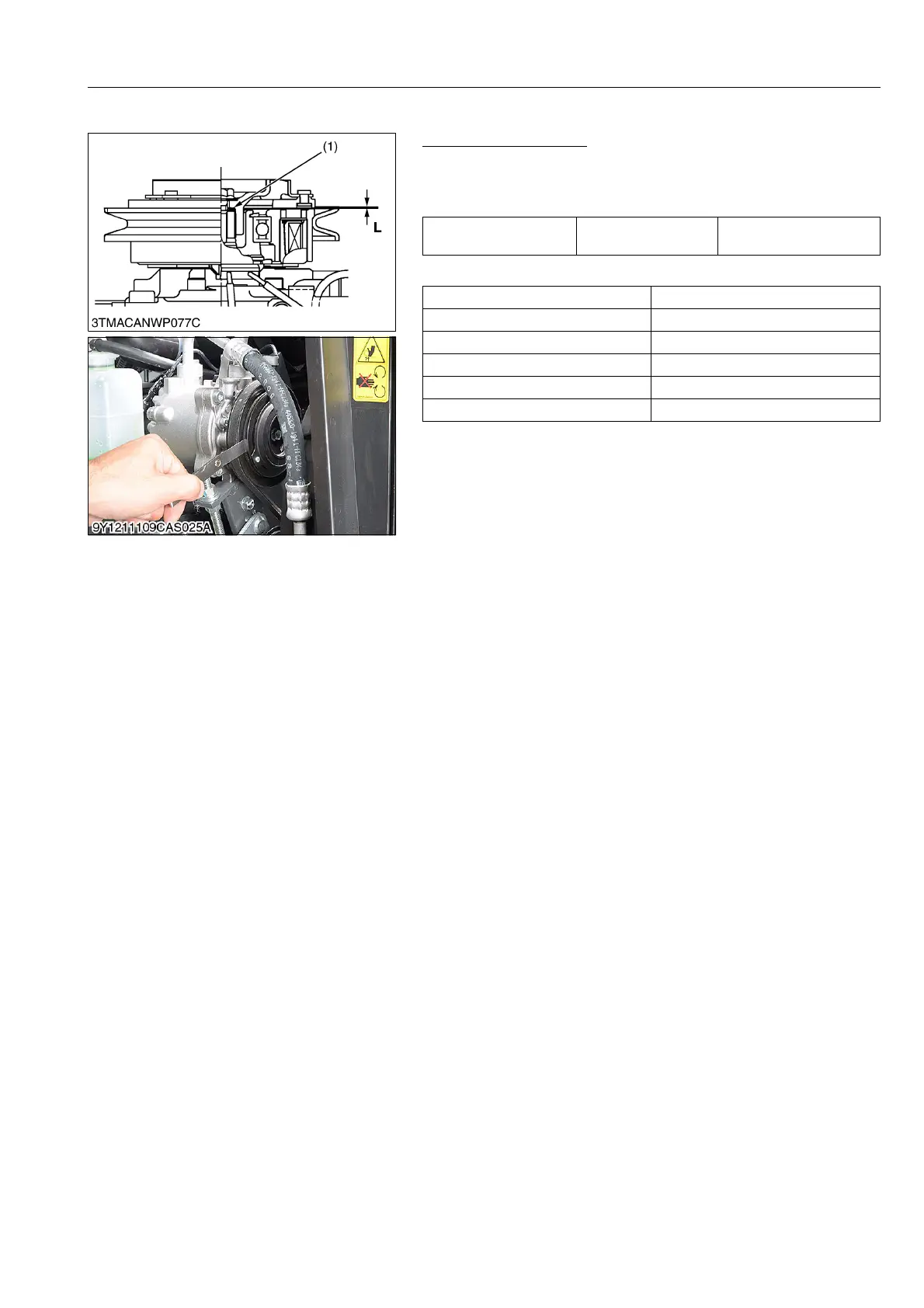

Adjustment of Air Gap
1. Measure the air gap with a feeler gauge.
2. When the measurement value comes off from factory
specification, adjustment shim (1) is added or deleted.
(Reference)
9Y1211109CAS0081US0
Air gap "L" Factory specification
0.30 to 0.65 mm
0.012 to 0.025 in.
Adjusting Shim Size Code No.
0.10 mm (0.0039 in.) T1065-87340
0.15 mm (0.0059 in.) T1065-87350
0.40 mm (0.016 in.) T1065-87360
0.60 mm (0.024 in.) T1065-87370
1.00 mm (0.0394 in.) T1065-87380
(1) Shim L: Air Gap
