wsm STW37 - Structure

STEERING
STW34, STW37, STW40, WSM
7-M1
1. STRUCTURE

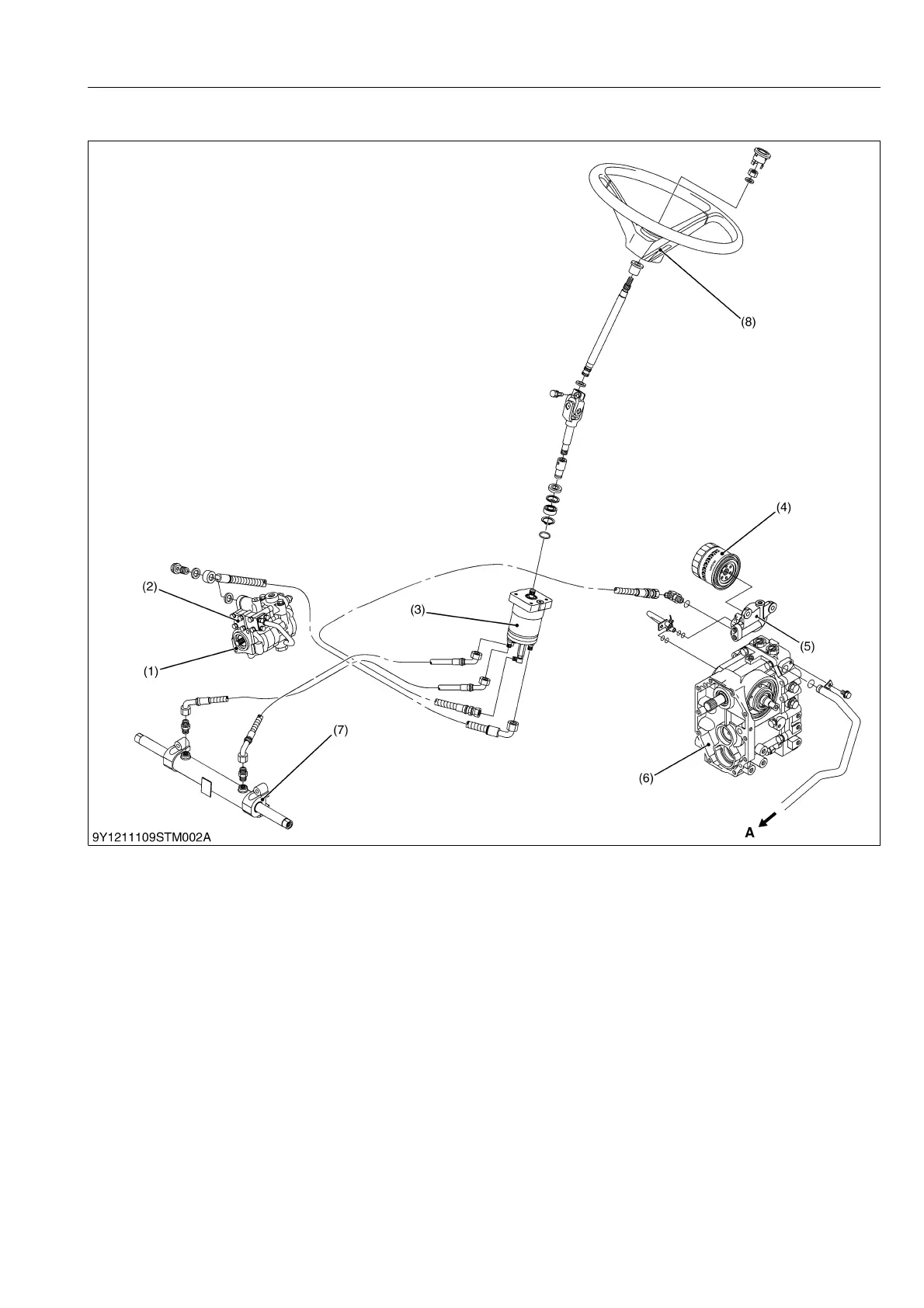

This tractor is equipped with a full hydrostatic power steering. The steering controller (3) is connected to the
steering cylinder (7) with the hydraulic hose only, therefore it is simple in construction.
9Y1211109STM0001US0
(1) Hydraulic Pump
(2) Regulating Valve
(3) Steering Controller
(4) HST Oil Filter
(5) Filter Bracket
(6) HST (Hydrostatic
Transmission)
(7) Steering Cylinder
(8) Steering Wheel
A: To Oil Cooler
