1. AIR CONDITIONER SYSTEM
[1] OUTLINE OF AIR CONDITIONING SYSTEM
(To be continued)

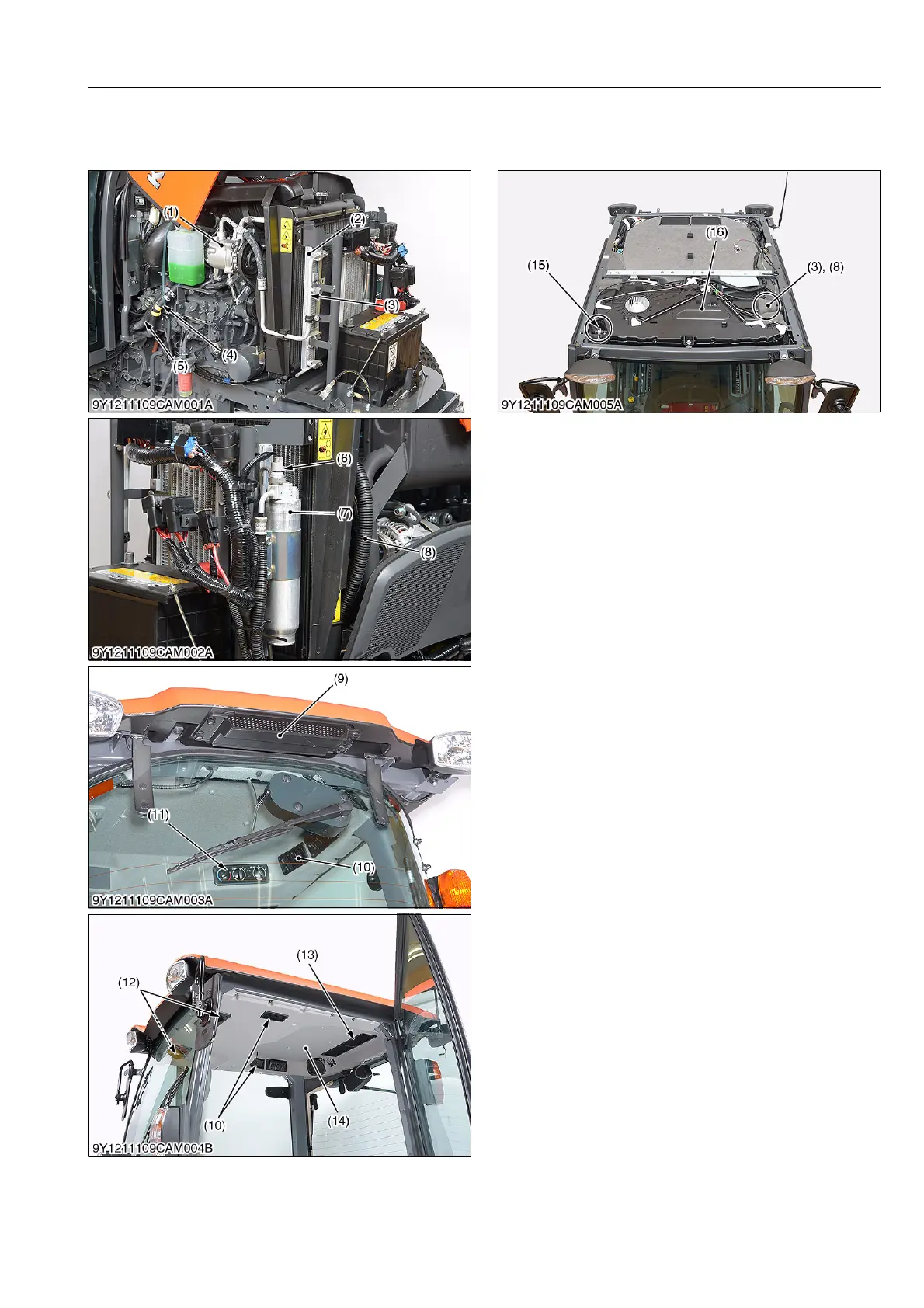

(1) Compressor
(2) Condenser
(3) High Pressure Pipe
(4) Heater Hose (Inlet Side)
(5) Heater Hose (Outlet Side)
(6) Pressure Switch
(7) Receiver
(8) Low Pressure Pipe
(9) Outside Air Filter
(10) Side Air Outlet
(11) Control Panel
(12) Front Air Outlet
(13) Inside Air Filter
(14) Inner Roof
(15) Water Valve
(16) Air Conditioner Unit
