GENERAL
STW34, STW37, STW40, WSM
G-33
[6] CHECK POINTS OF EVERY 400 HOURS
Replacing Hydraulic Oil Filter Cartridge
• See page G-19.
9Y1211109GEG0028US0
Replacing Fuel Filter Element
• See page G-25.
9Y1211109GEG0029US0
Changing Transmission Fluid / Replacing hydraulic Oil Filter
• See page G-18.
9Y1211109GEG0083US0

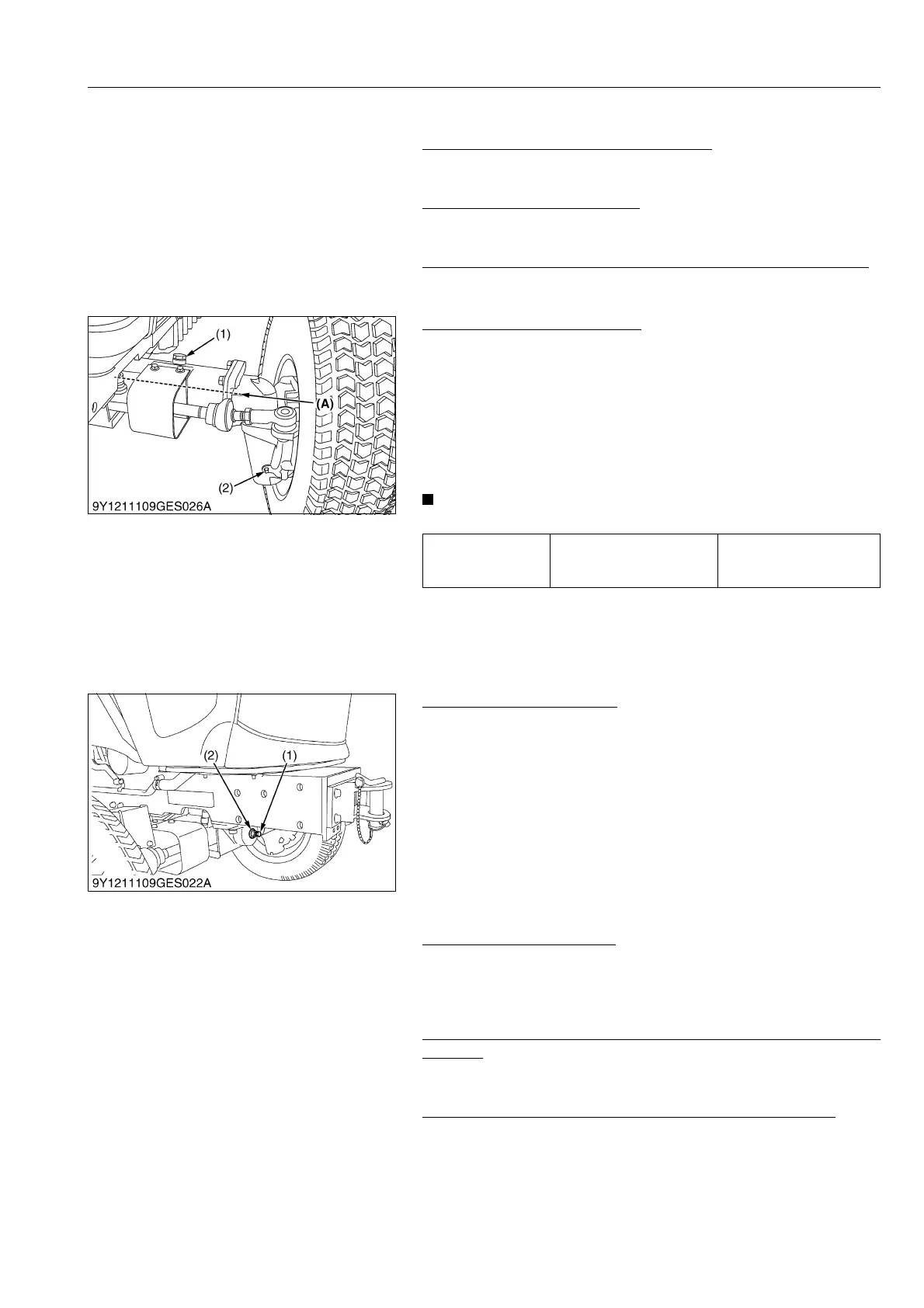

Changing Front Axle Case Oil
1. To drain the used oil, remove the right and left drain plugs and
filling plug at the front axle case and drain the oil completely into
the oil pan.
2. After draining reinstall the drain plugs.
3. Fill with the new oil.
(Refer to "4. LUBRICANTS, FUEL AND COOLANT" on page
G-8.)
4. After filling reinstall the filling plug.
NOTE
• Make sure the oil level is at the center of the front axle.
9Y1211109GEG0031US0
[7] CHECK POINT OF EVERY 600 HOURS
Adjusting Front Axle Pivot
If the front axle pivot pin adjustment is not correct, front wheel
vibration can occur causing vibration in the steering wheel.
 Adjusting procedure
Loosen the lock nut, screw-in the adjusting screw until seated,
then tighten the screw with an additional 1/6 turn.
Re-tighten the lock nut.
9Y1211109GEG0032US0
[8] CHECK POINT OF EVERY 800 HOURS
Checking Valve Clearance
• See page 1-S14.
9Y1211109GEG0033US0
[9] CHECK POINTS OF EVERY 1 YEAR
Replacing Air Cleaner Element (Primary) and Secondary
Element
• See page G-24.
9Y1211109GEG0034US0
Checking Air Conditioner Pipes and Hoses [CAB Model]
• See page G-32.
9Y1211109GEG0084US0
Front axle case oil Capacity
4.5 L
4.8 U.S.qts
4.0 Imp.qts
(1) Filling plug
(2) Drain plug
(A) Oil level
(1) Adjusting Screw (2) Lock Nut
KiSC issued 11, 2014 A
