wsm STW37 - MID Case

TRANSMISSION
STW34, STW37, STW40, WSM
3-S57
(3) Mid Case
Removing Hydraulic PTO Clutch

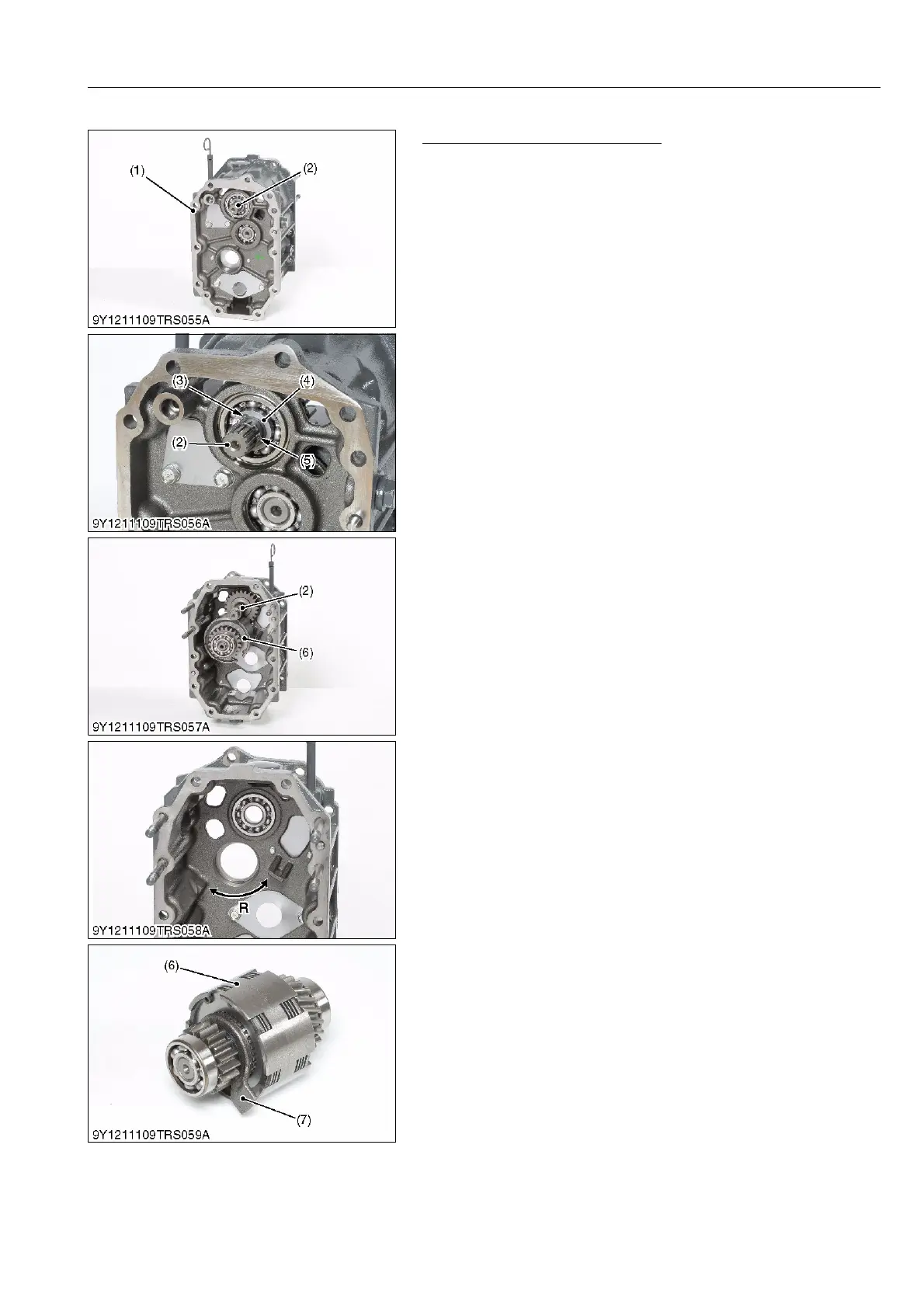

1. Remove the external snap rings (3), (5) and collar (4) on the 24T
gear shaft (2).
2. Tap out the 24T gear shaft (2) with the hydraulic PTO clutch
assembly (6).
(When reassembling)
• • Install the hydraulic clutch assembly (6) so that the stopper (7)
enters a range "R".
9Y1211109TRS0055US0
(1) Mid Case
(2) 24T Gear Shaft
(3) External Snap Ring
(4) Collar
(5) External Snap Ring
(6) Hydraulic Clutch Assembly
(7) Stopper
R: Range
KiSC issued 11, 2014 A
