wsm STW37 - Removing Air Conditioner Unit

CABIN
STW34, STW37, STW40, WSM
10-S46
(3) Removing Air Conditioner Unit
Draining Coolant
• See page 10-S32.
9Y1211109CAS0059US0
Discharging Refrigerant
• See page 10-S18.
9Y1211109CAS0060US0
Outer Roof and Stay
1. Remove the outer roof (1).
2. Remove the stay (3).
9Y1211109CAS0061US0
Tightening torque Outer roof mounting screw
3.5 to 4.0 N·m
0.36 to 0.40 kgf·m
2.6 to 2.9 lbf·ft

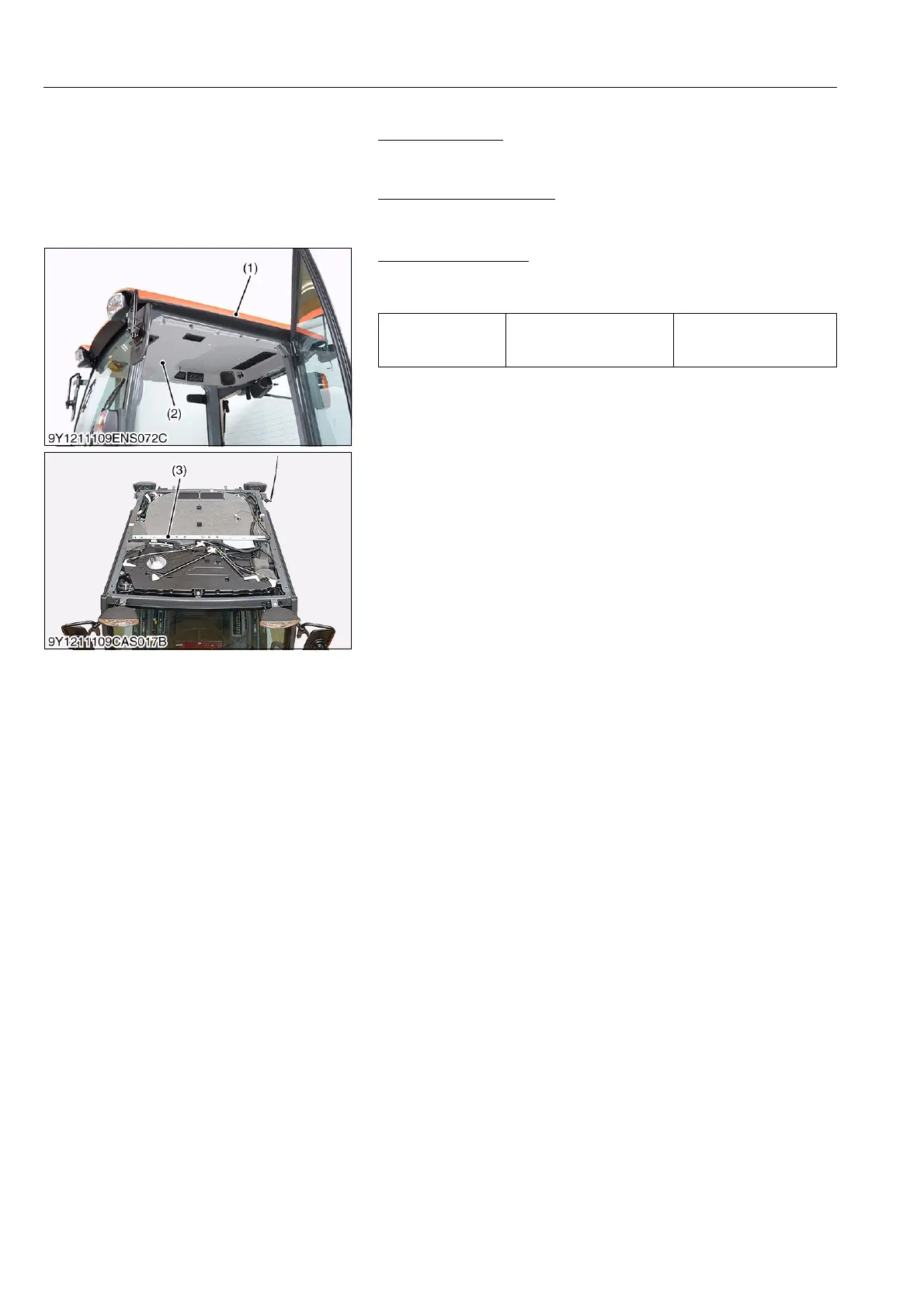

(1) Outer Roof
(2) Inner Roof
(3) Stay
