wsm STW37 - Cabin Windshields

CABIN
STW34, STW37, STW40, WSM
10-S51
Heater Hoses

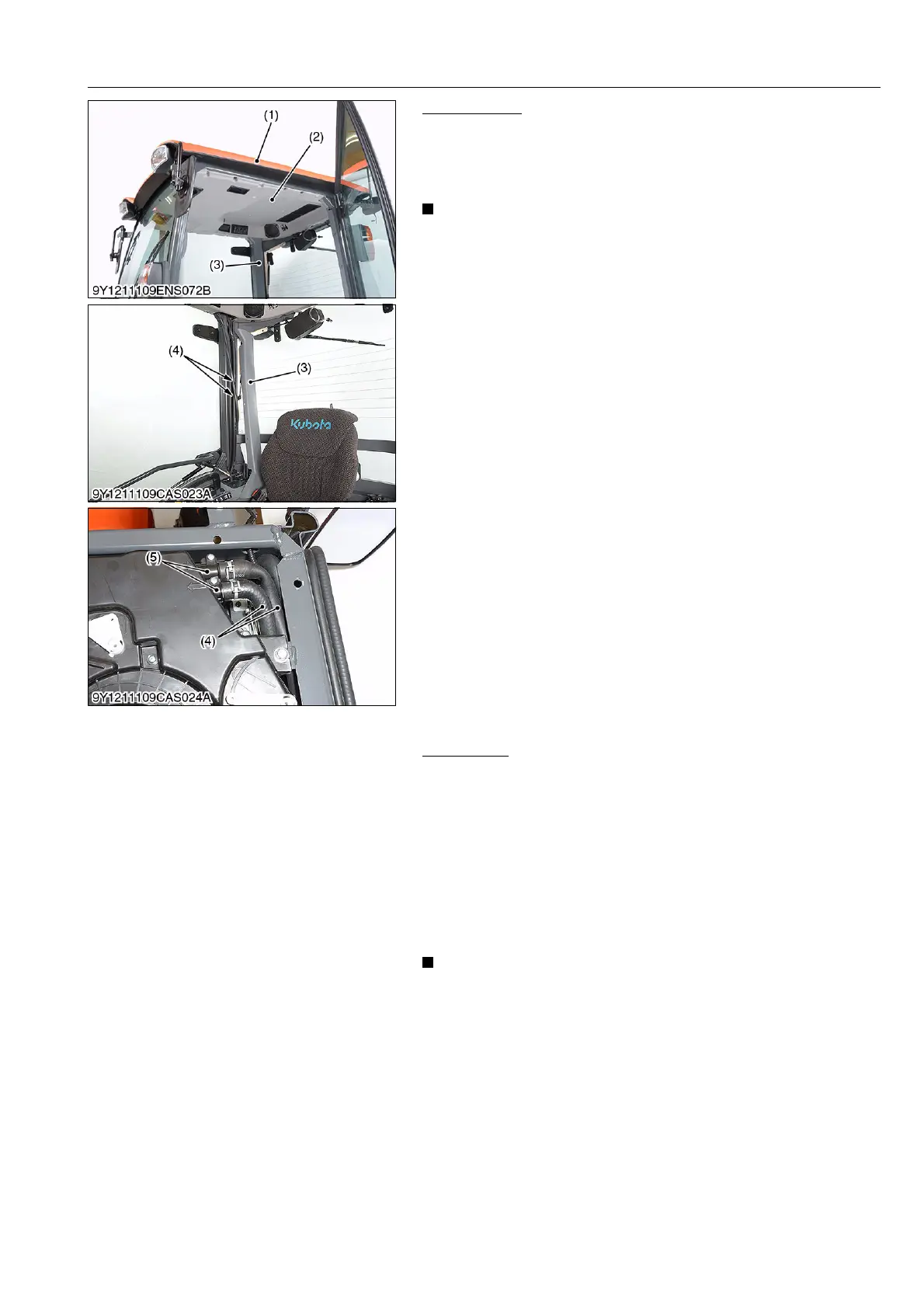

1. Remove the outer roof (1), inner roof (2) and inner cover (3).
2. Disconnect the heater hoses (4) from the hose pipes (5).
3. Pull out the heater hoses (4) from the bottom of the cabin.
4. Remove the heater hoses (4).
NOTE
• Before disconnecting the heater hoses (4), put the parting
marks on the hoses for marking proper reconnecting.
(When reassembling)
• Connect the heater hoses at their original positions.
• When connecting the heater hoses with A/C unit, the insert
amount should do more than 10 mm (0.39 in.). For the other
locations, the hose insert amount should be more than 20 mm
(0.79 in.)
9Y1211109CAS0073US0
(6) Cabin Windshields
Preparation
1. Prepare the followings.
• Cutter knife:1 piece
• Scraper: 1 piece
• Gun for coating: 1 piece
• Sika Flex 250PC or equivalent
• Gummed tape
• Sika primer 206G + P or equivalent
• Shin Etsu silicon KE420 or equivalent
• Sika Aktivator or equivalent
• Sika Coating Aktivator
NOTE
• Sika product are made by Sika Corporation.
• Shin Etsu silicon KE420 is made by Shin Etsu Polymer
Corporation.
• These materials can't be provided by Kubota Corporation.
• Therefore, please find the local made equivalent materials
in your country and use them when you need.
9Y1211109CAS0074US0
(1) Outer Roof
(2) Inner Roof
(3) Inner Cover
(4) Heater Hose
(5) Heater Pipe
