GENERAL
STW34, STW37, STW40, WSM
G-52

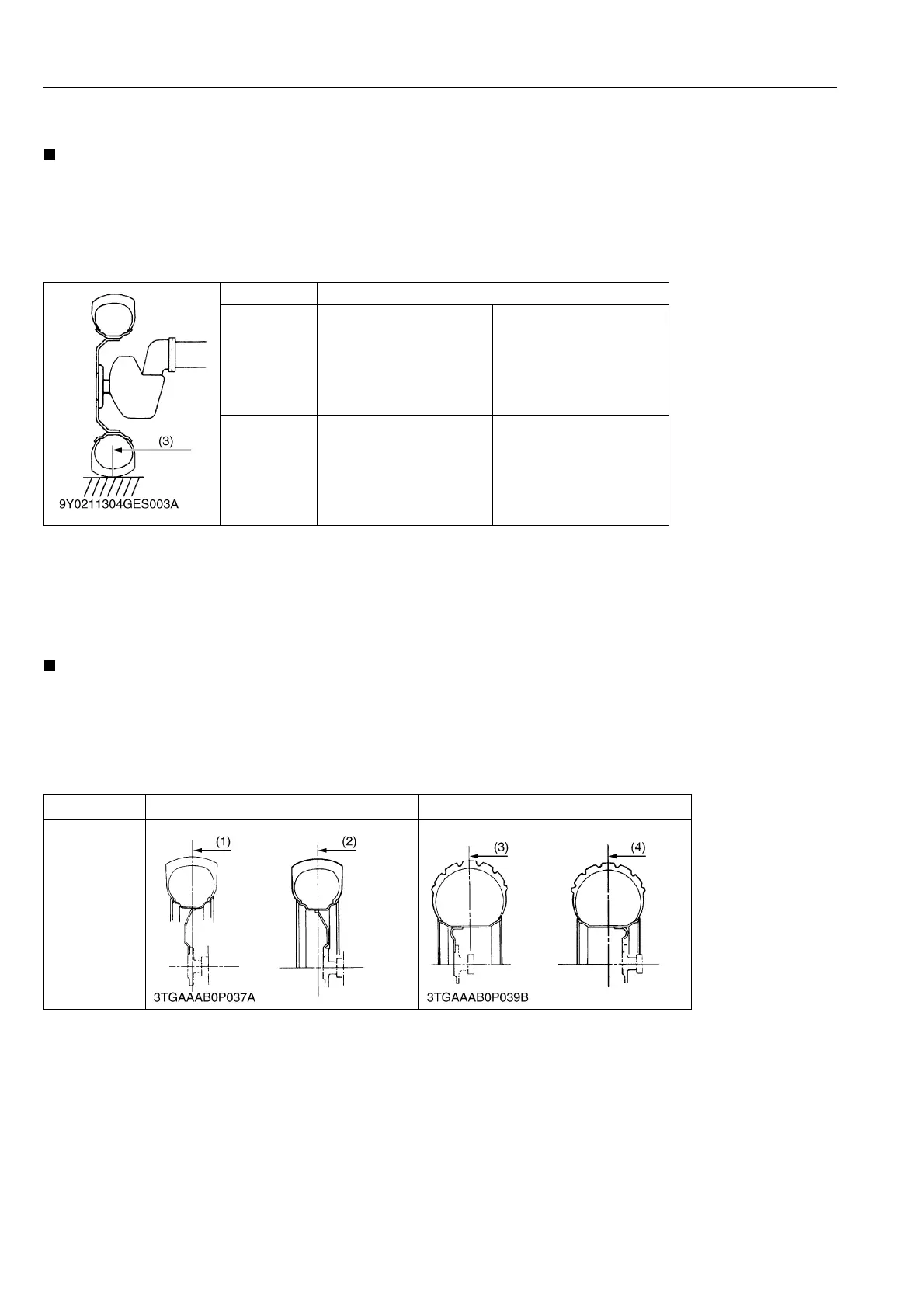

(1) Front Wheels
Front wheel tread can not be adjusted.
• Do not turn front discs to obtain wider tread.
• When re-fitting or adjusting a wheel, tighten the bolts to the following torques then recheck after driving
the tractor 200 m (219 yards) and 10 times of shuttle movement by 5 m (5 yards), and thereafter according
to service interval.
• Do not turn front discs to obtain wider tread. In setting up the front wheels, make sure that the inflation
valve stem of the tires face outward.
9Y1211109GEG0066US0
(2) Rear Wheels
Rear tread width can be adjusted as shown with the standard equipped tires.
To change the tread width
1. Remove the wheel rim and / or disk mounting bolts.
2. Change the position of the rim and / or disk (right and left) to the desired position, and tighten the bolts.
• Always attach wheels as shown in the drawing.
• If not attached as illustrated, transmission parts may be damaged.
• When re-fitting or adjusting a wheel, tighten the bolts to the following torques then recheck after driving
the tractor 200 m (219 yards) and 10 times of shuttle movement by 5 m (5 yards), and thereafter according
to service interval.
• To attach 13.6-16 rear tires, need to use rear tire spacer.
9Y1211109GEG0067US0
Models STW34, STW37, STW40
Tires 6.00-12 Farm 24 × 8.50-14 Turf
Tread 1020 mm (40.16 in.) 1020 mm (40.16 in.)
Tires 9.5-22 Farm 13.6-16 Turf
Tread
(1) 950 mm (37.40 in.) (2) 1070 mm (42.13 in.) (3) 990 mm (39.0 in.) (4) 1055 mm (41.54 in.)
