wsm STW37 - Page 481

ELECTRICAL SYSTEM
STW34, STW37, STW40, WSM
9-S44

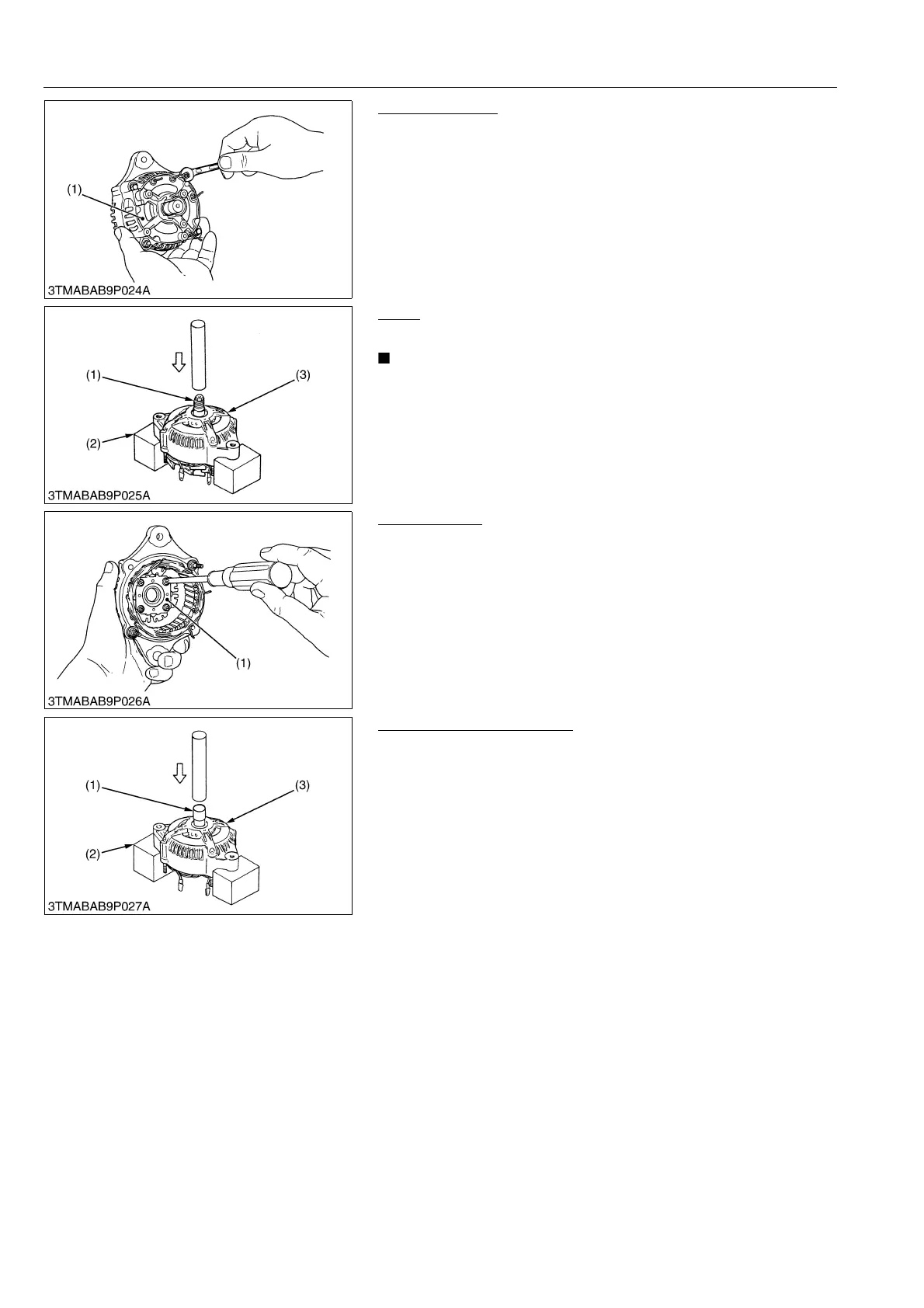

Rear End Frame
1. Remove the two nuts and two screws holding the drive end
frame and the rear end frame.
2. Remove the rear end frame (1).
WSM000001ELS0028US0
Rotor
1. Press out the rotor (1) from drive end frame (3).
IMPORTANT
• Be very careful not to drop the rotor and damage the slip
ring or fan, etc..
WSM000001ELS0029US0
Retainer Plate
1. Remove the four screws holding the retainer plate, and remove
the retainer plate (1).
WSM000001ELS0030US0
Bearing on Drive End Side
1. Press out the bearing from drive end frame (3) with a press and
jig (1).
WSM000001ELS0031US0
(1) Rear End Frame
(1) Rotor
(2) Block
(3) Drive End Frame
(1) Retainer Plate
(1) Jig
(2) Block
(3) Drive End Frame
KiSC issued 11, 2014 A
