wsm STW37 - Page 98

ENGINE
STW34, STW37, STW40, WSM
1-S19
CAUTION
• Check the injection pressure and condition after making sure that there is nobody standing in the
direction the fume goes.
• If the fume from the nozzle directly contacts the human body, cells may be destroyed and blood
poisoning may be caused.
9Y1211109ENS0014US0

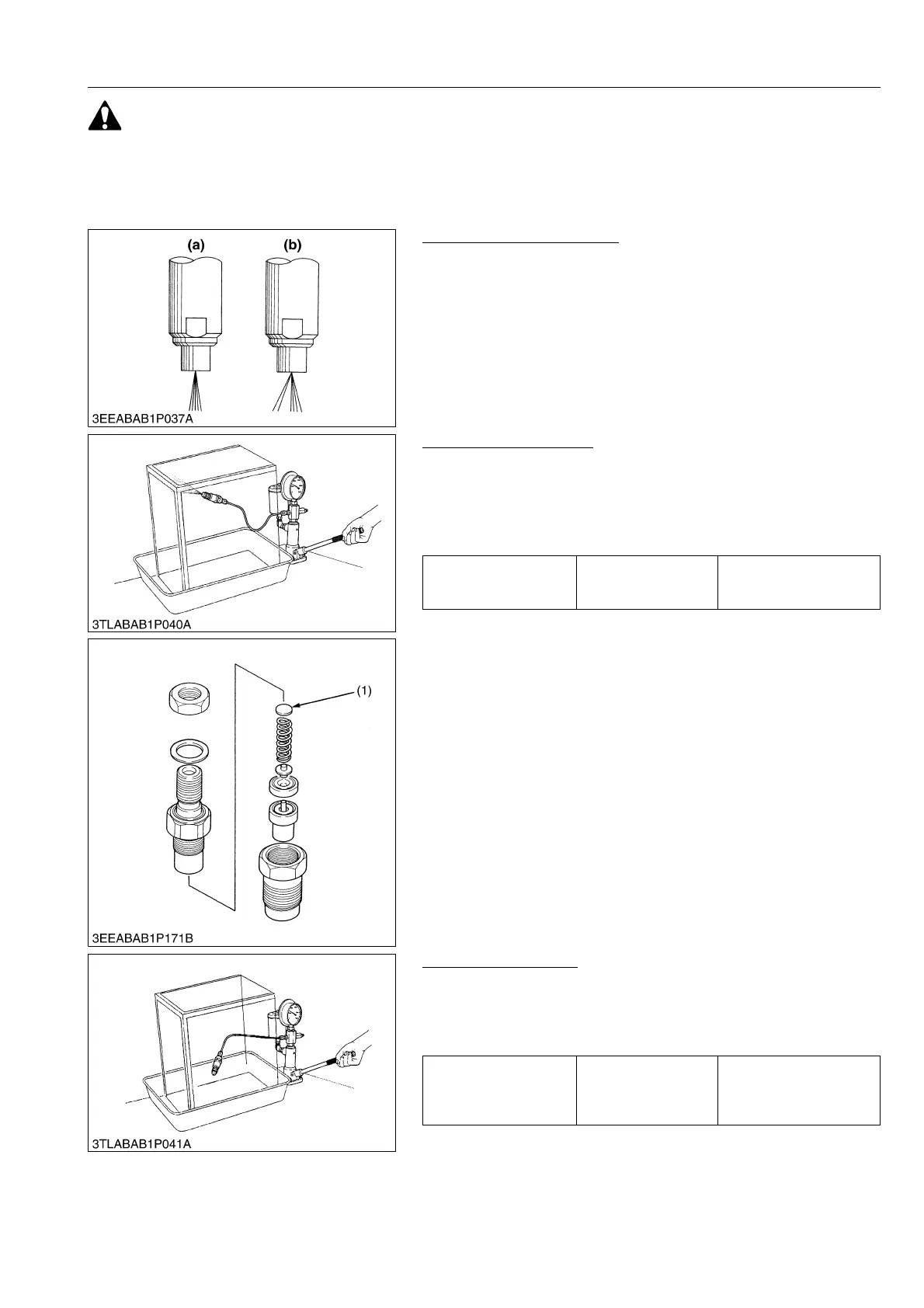

Nozzle Spraying Condition
1. Set the injection nozzle to a nozzle tester, and check the nozzle
spraying condition.
2. If the spraying condition is damaged, replace the nozzle piece.
9Y1211109ENS0015US0
Fuel Injection Pressure
1. Set the injection nozzle to a nozzle tester.
2. Slowly move the tester handle to measure the pressure at which
fuel begins jetting out from the nozzle.
3. If the measurement is not within the factory specifications,
replace the adjusting washer (1) in the nozzle holder to adjust it.
(Reference)
• Pressure variation with 0.01 mm (0.0004 in.) difference of
adjusting washer thickness.
Approx. 235 kPa (2.4 kgf/cm
2
, 34 psi)
9Y1211109ENS0016US0
Valve Seat Tightness
1. Set the injection nozzle to a nozzle tester.
2. Raise the fuel pressure, and keep at 12.75 MPa (130 kgf/cm
2
,
1849 psi) for 10 seconds.
3. If any fuel leak is found, replace the nozzle piece.
9Y1211109ENS0017US0
(a) Good (b) Bad
Fuel injection pressure Factory specification
13.8 to 14.7 MPa
140 to 150 kgf/cm
2
2000 to 2130 psi
(1) Adjusting Washer
Injection pressure Factory specification
No fuel leak at
12.7 MPa
130 kgf/cm
2
1850 psi
KiSC issued 11, 2014 A
