C-5000 COMMUNICATION MANAGEMENT CONTROLLER
INSTALLATION MANUAL
Publication No. 150-041118 Page 4-41
Rev A Section 4 –Electrical Installation
Sep 2001

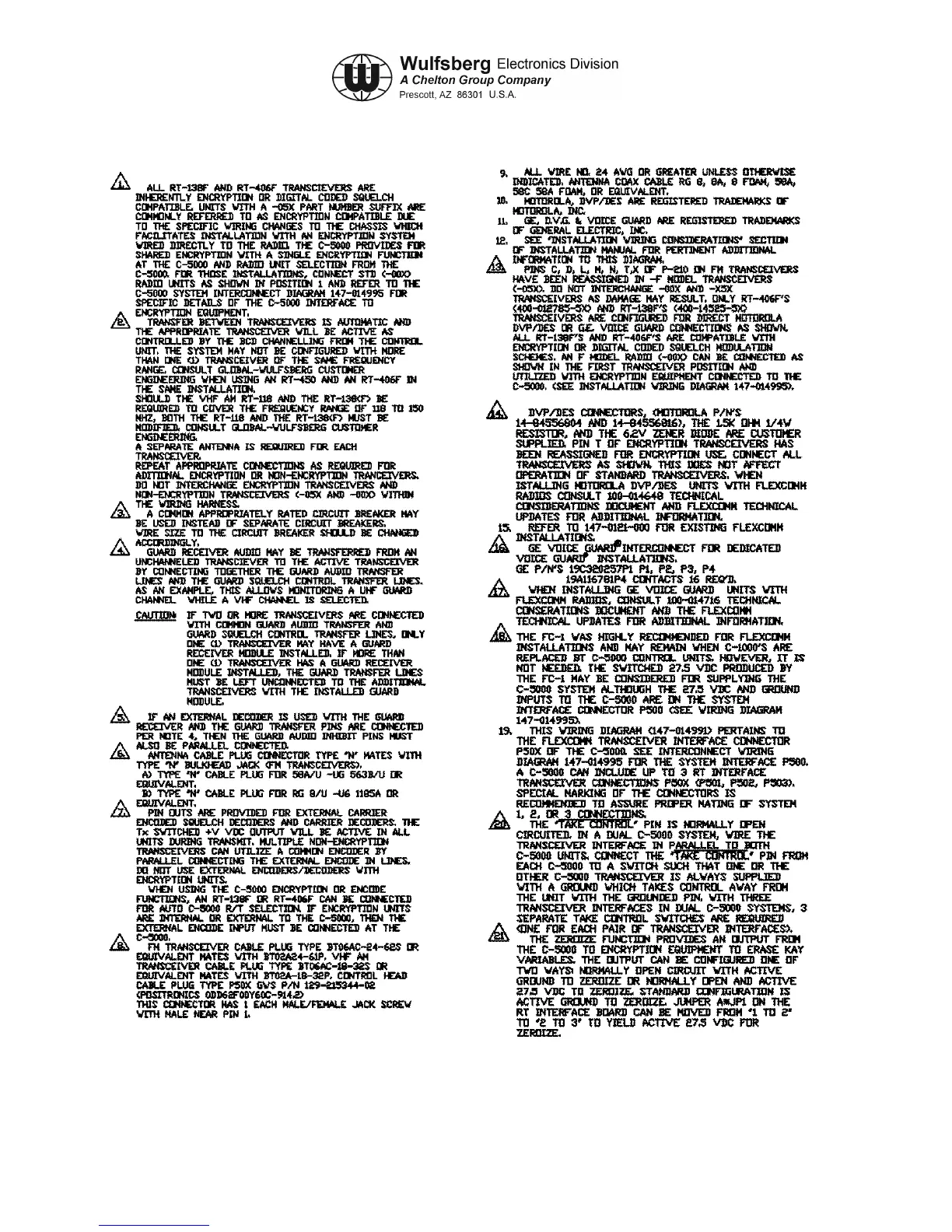

Figure 4-12a. FLEXCOMM Transceivers Installation Wiring Diagram (Sheet 1 of 3)
RT-30, RT-118, RT-138, RT-138F, RT-450 and RT-406F
(Dwg No 147-014991, Rev B)
