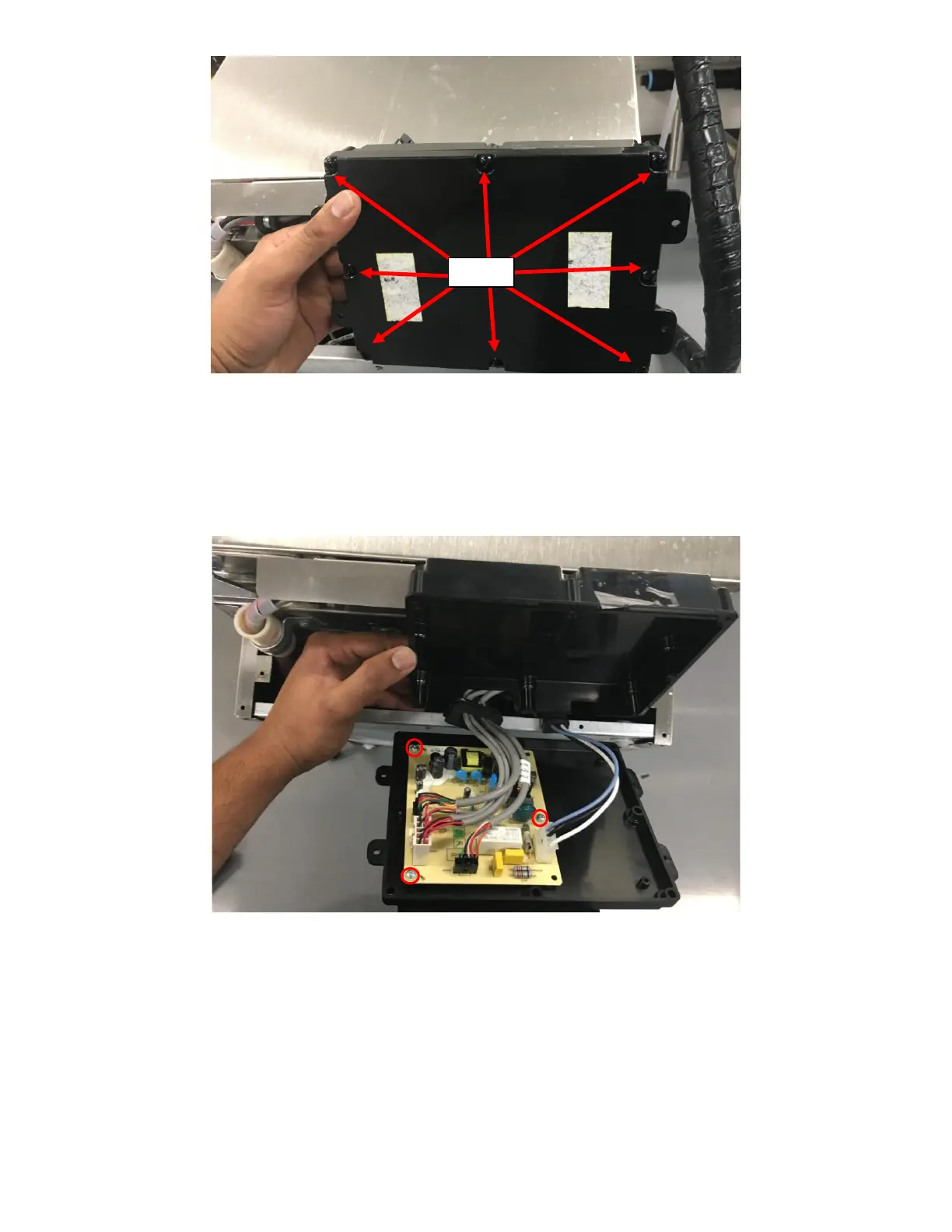

4. Remove the Controller board from the enclosure by removing the screws holding it in place. See Figure K4.
5. Unplug the connectors on the existing/old board and connect it onto the new/replacement board one at a time. See
Figure K4.
6. Secure the new board to the bottom piece of the Controller Board Enclosure. See Figure K4.
7. Insert the grommets on the harness into the appropriate slots in the bottom piece of the Controller Board Enclosure.
See Figure K5.
8. Install the top piece of the Controller Board to align the two halves. See Figure K6. Ensure the grommets on the
harness does not pop out so it is properly sealed.
