Wunder-Bar JoeTap NITCOM - Replacing the Faucet Diaphragm Page

Page | 19
2. Replacing the Faucet Diaphragm:
a. If the faucet is leaking right below the Faucet Handle near the Black Spacer, there is a torn diaphragm inside
the Faucet.
b. Identify that the leak is coming from the Black Spacer. See Figure 36.
c. Remove the Faucet from the tower.
d. Rotate the Silver Threaded Collar directly beneath the Black Spacer to disassemble the Faucet. See Figure 37.
e. Pull the Faucet apart. See Figure 38.
Replace faucet
diaphragm if leak
is coming from
this location

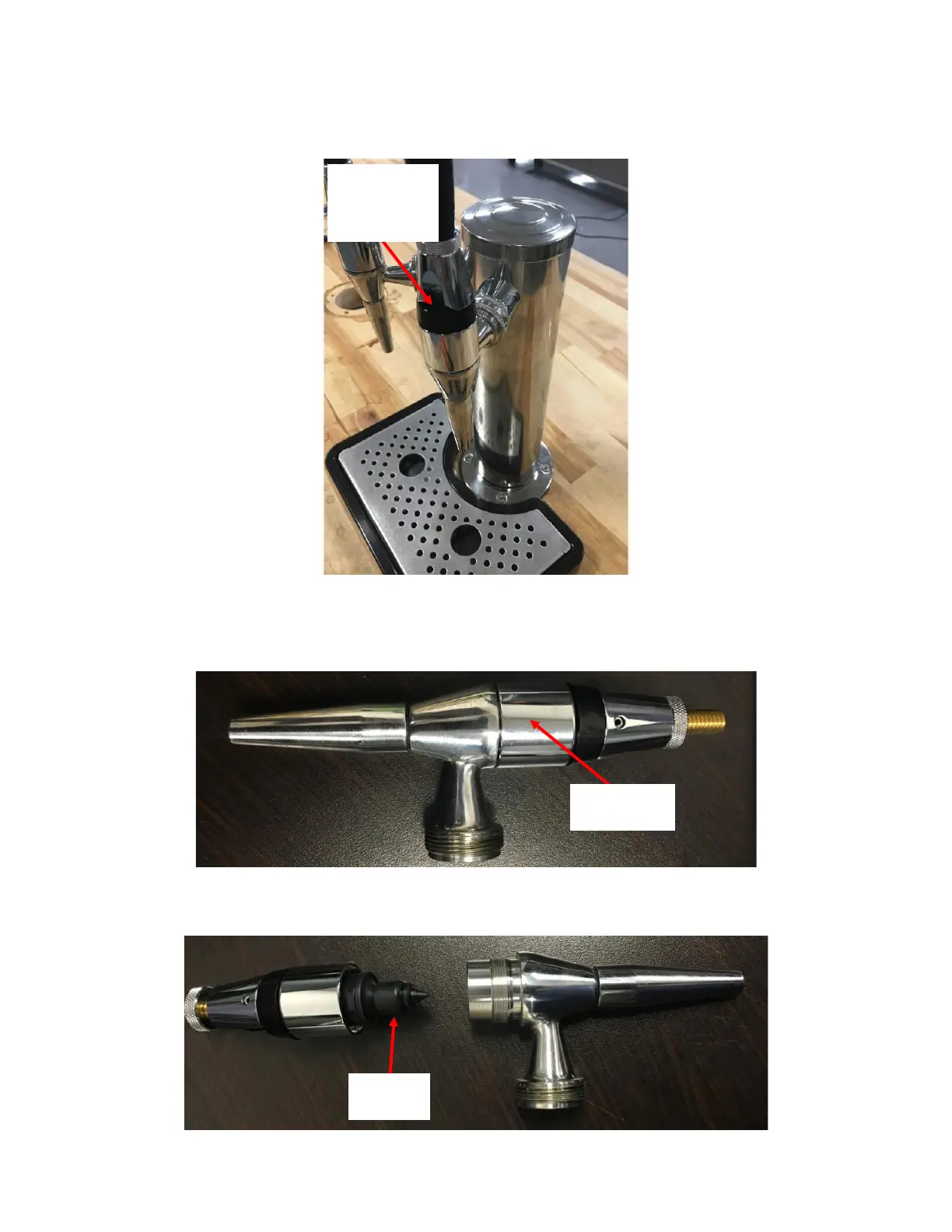

Figure 36: Black Spacer Shown.
Rotate Silver
Threaded Collar
Figure 37: Silver Threaded Collar Shown.
Figure 38: Faucet pulled apart and Diaphragm shown.
Faucet
Diaphragm
