Wunder-Bar JoeTap NITCOM - Disassembling the Elbow Shanks Page

Page | 65
3.2. Use a Flare Wrench to loosen the Elbow Shank Nuts. See Figure H5 and Figure H6.
3.3. Disassemble both Elbow Shanks:
3.3.1. Pull back the Curved Spacer, Elbow Shank Nut, and the Elbow Shank Nut to expose the Snap Ring. See
Figure H7 and Figure H8.
1-inch Flare
Wrench

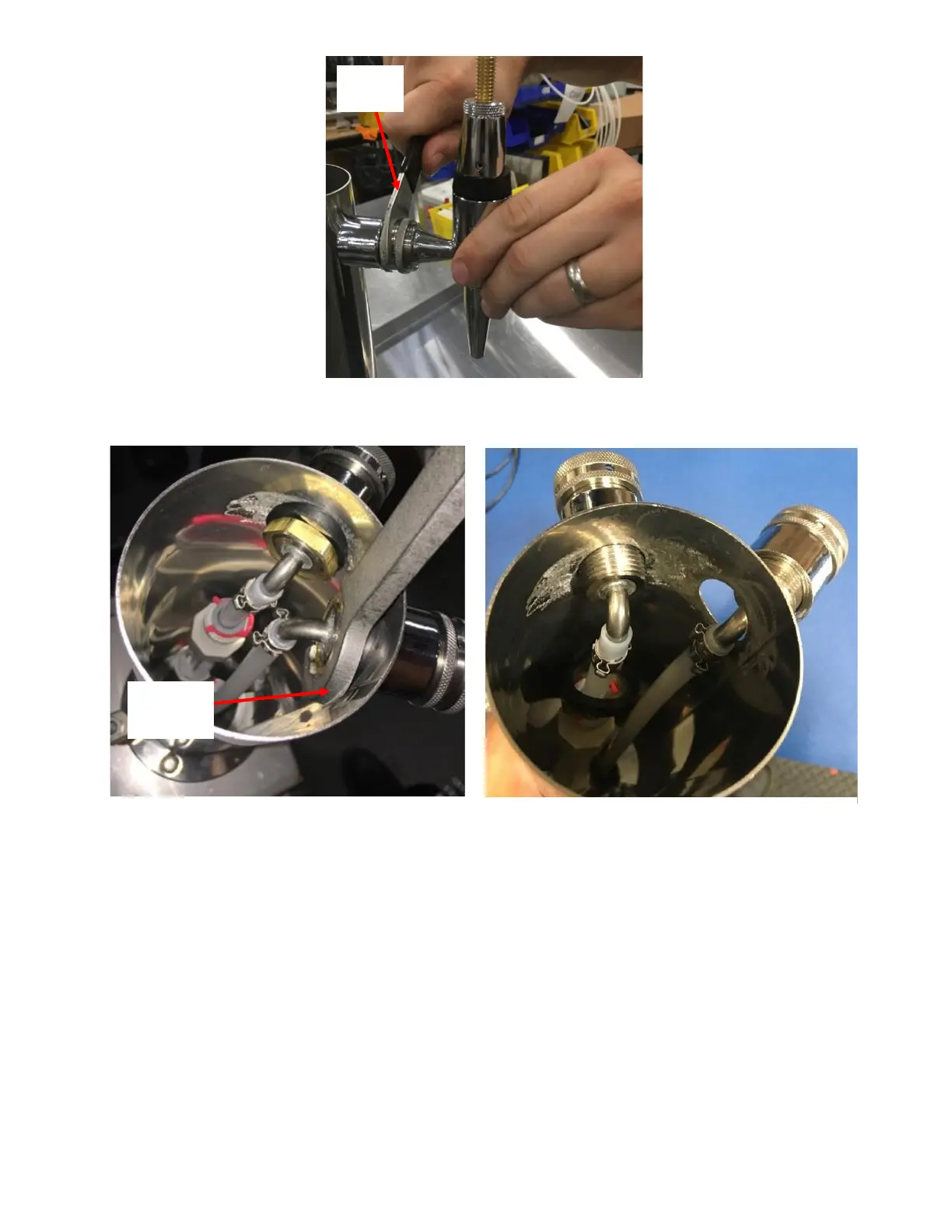

Figure H5: Flare wrench used to remove Elbow Shank Lock
Nut.
Figure H4: Remove Faucet with a Faucet Wrench
Faucet
Wrench
Figure H6: Both Elbow Shank Lock Nuts removed.
