5. Reinstalling the Tower:
5.1 Install two screws, opposite of each other and install nuts on the underside of the counter to secure the
tower. See Figure H35.
5.2 Verify that the Stem end of the Barbed Hose and the White LLDPE Tubing are approximately lined up. If not
lined up, you may have to adjust it to make installation easier and effective. See Figure H36.
5.3 Insert the gray stem attached to the braided tube into the 2-Way Divider and the White LLDPE Tube into
the Check Valve. Seat the tubing fully into the quick connect. Support the tubing with one hand and firmly
Figure H35: Screw location shown.
Figure H33: Connection Shown.
Install two screws
opposite of each other

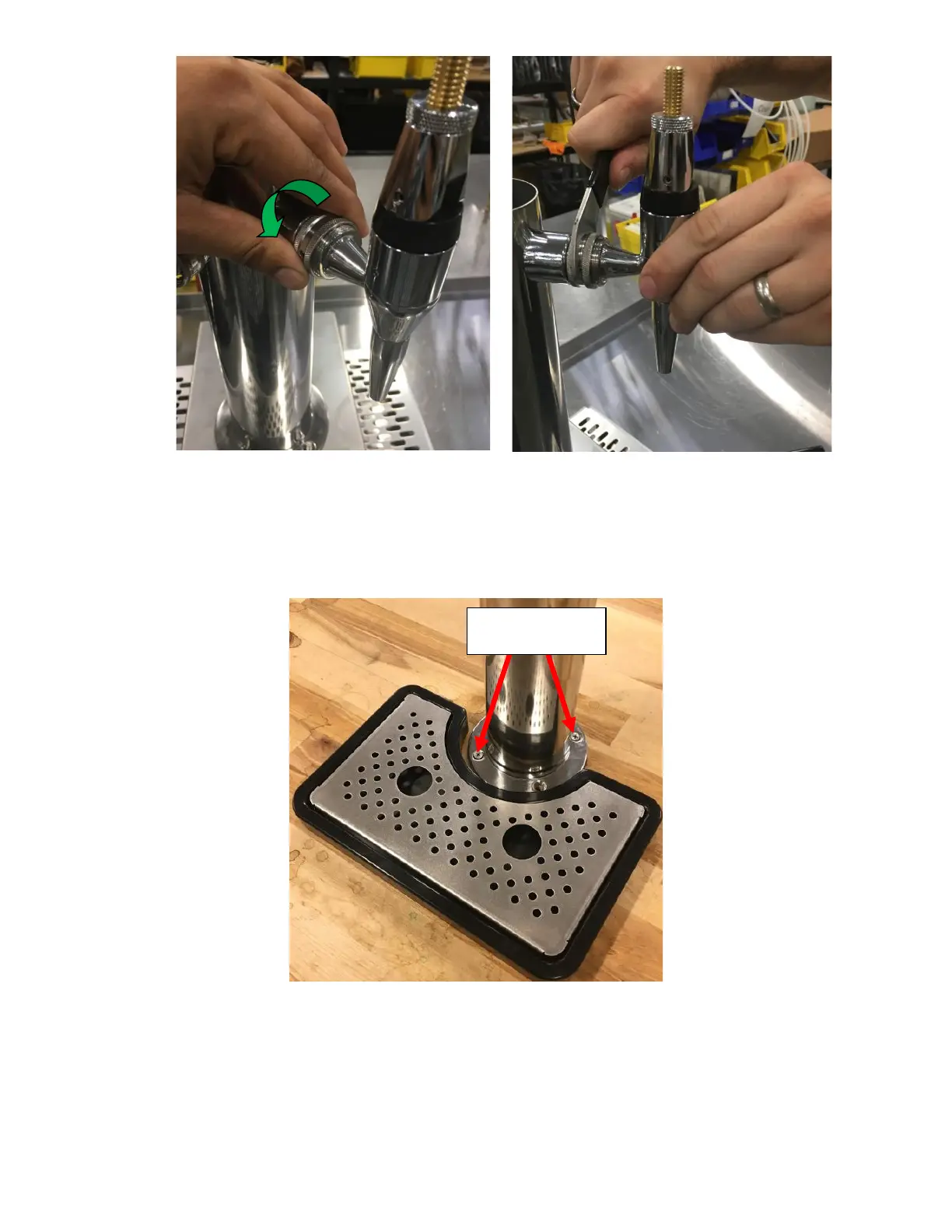

Figure GH5: Install Faucet with Nozzle facing downwards.
Tighten the nut.
