Appendix L: Fridge Thermistor Replacement Procedure
1. Remove the Regulator Cover. There is one (1) screw holding it in place. See Figure L1.
2. Remove the Rear Enclosure Cover. There will be two (2) screws on either side holding it in place. See Figure L2.
3. Remove the Rear Bottom Grill by unscrewing the five (5) screws holding it in place. You will need to open the USB
Cap to remove the Rear Bottom Grill. See Figure L3.
4. Remove the Locking clip in the Push to connect straight fitting threaded into the back of the Left Regulator.

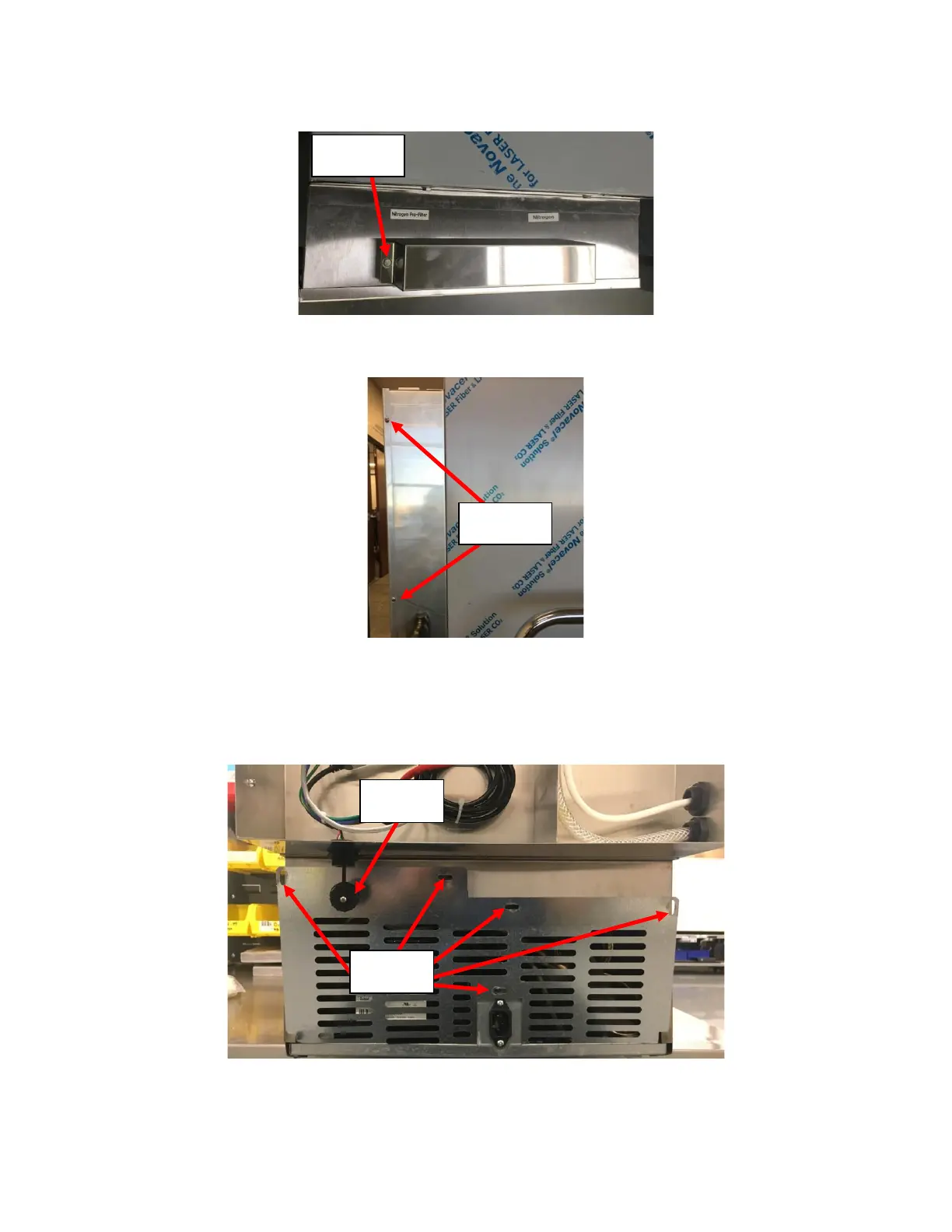

Figure L3: USB Cap shown unscrewed.
Unscrew
USB Cap
Remove
Screws
Figure L2: Rear Enclosure Cover secured in
place using Sheet Metal Screw on either side.
Sheet Metal
Screw
Figure L1: Regulator Cover Shown.
Sheet Metal
Screw
