Page | 82
Appendix K: Fridge Controller Board Replacement Procedure

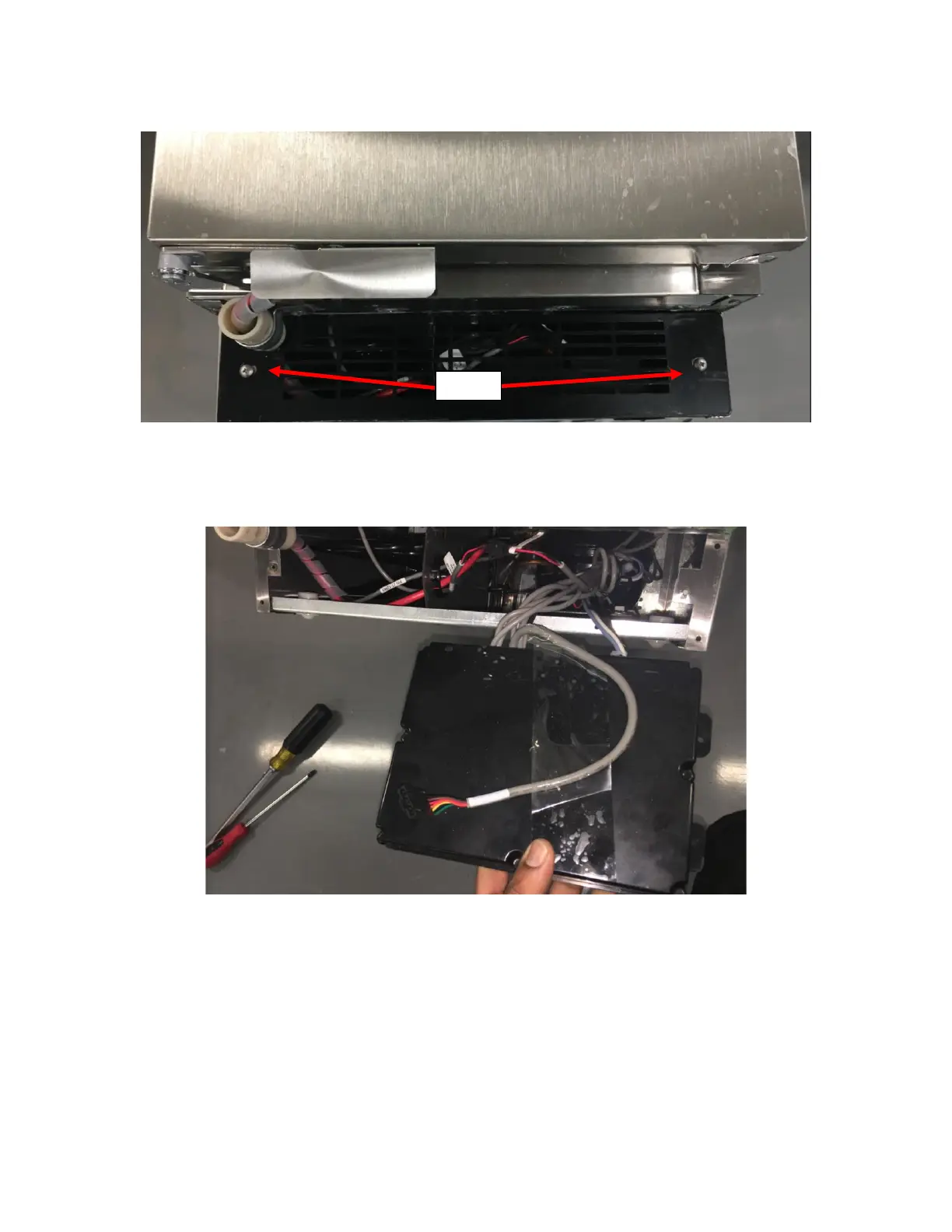

1. Remove the front Access cover by unscrewing the two screws holding it on place. See Figure K1.
2. Pull out the black plastic enclosure on the right. It will be adhered to the floor of the undercabinet space so may
require use of Flat Head Screwdriver to leverage it to detach. See Figure K2.
3. Unscrew the fasteners connecting the two halves of the Controller Board Enclosure. These screws will be found on
the underside of the Control Board Enclosure. See Figure K3.
