APPENDIX:
Appendix A: Oetiker Clamp Application
Make sure the Hose Clamp is crimped between 1/8-inch to ¼-inch away from the tip of the tube as seen in
Figure A1 and the clamp ears are closed as seen in Figure A2.
Appendix B: John Guest Torque Settings

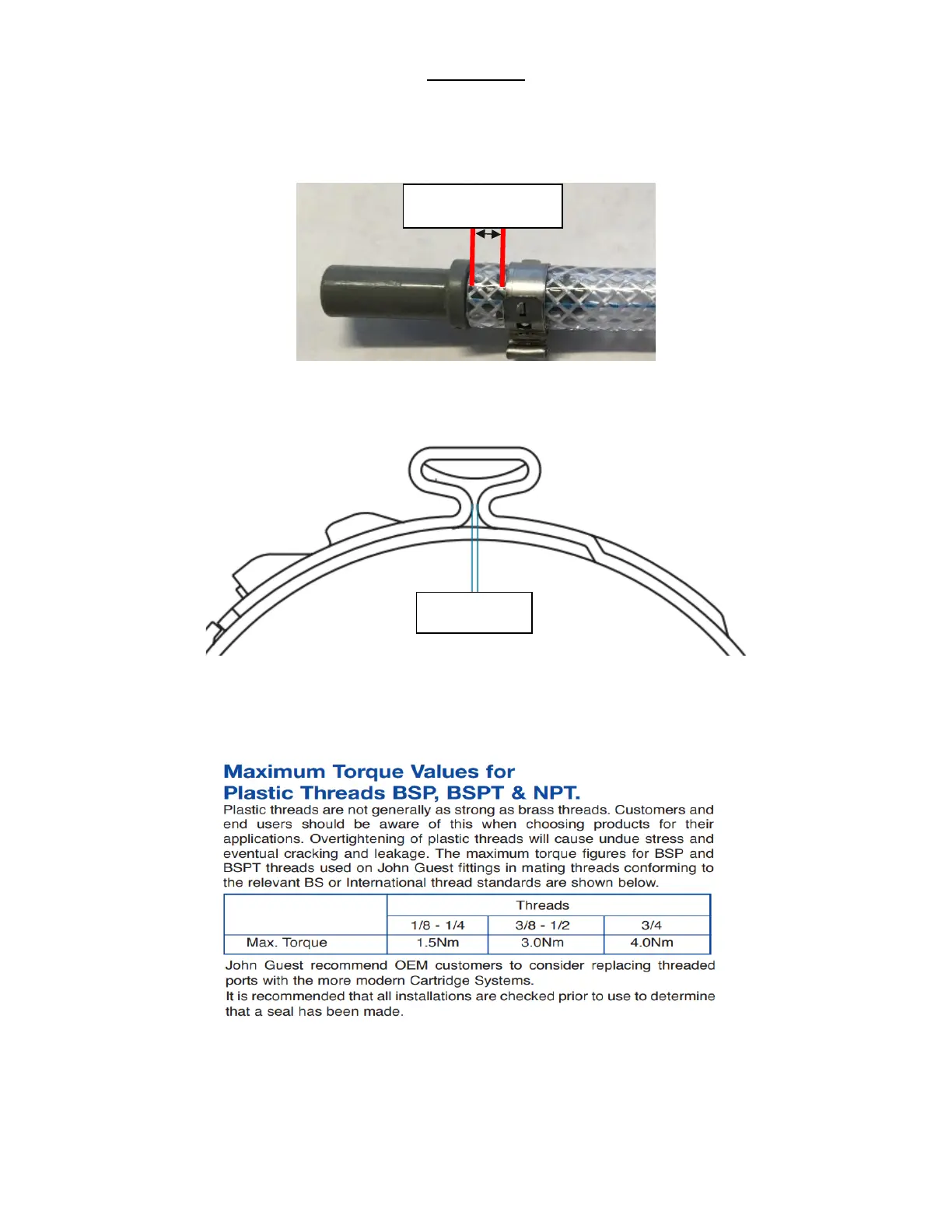

Figure A1: Hose Clamp placement location shown.
Place Hose Clamp 1/8”-
1/4” from tube end
Ears closed
Figure A2: Hose Clamp showing ears closed.
