iv. Roll the replacement UI Harness in a bundle with all the other loose wires and secure it in a bundle with
the Cable Tie supplied. See Figure 123.
v. Place the bundle of wires back into the Fridge Cavity (from where it was removed earlier). See Figure
124.
vi. Replace the Rear Bottom Grill.
Cut off old UI
Harness
Form new
cable bundle
Tuck Bundle
away

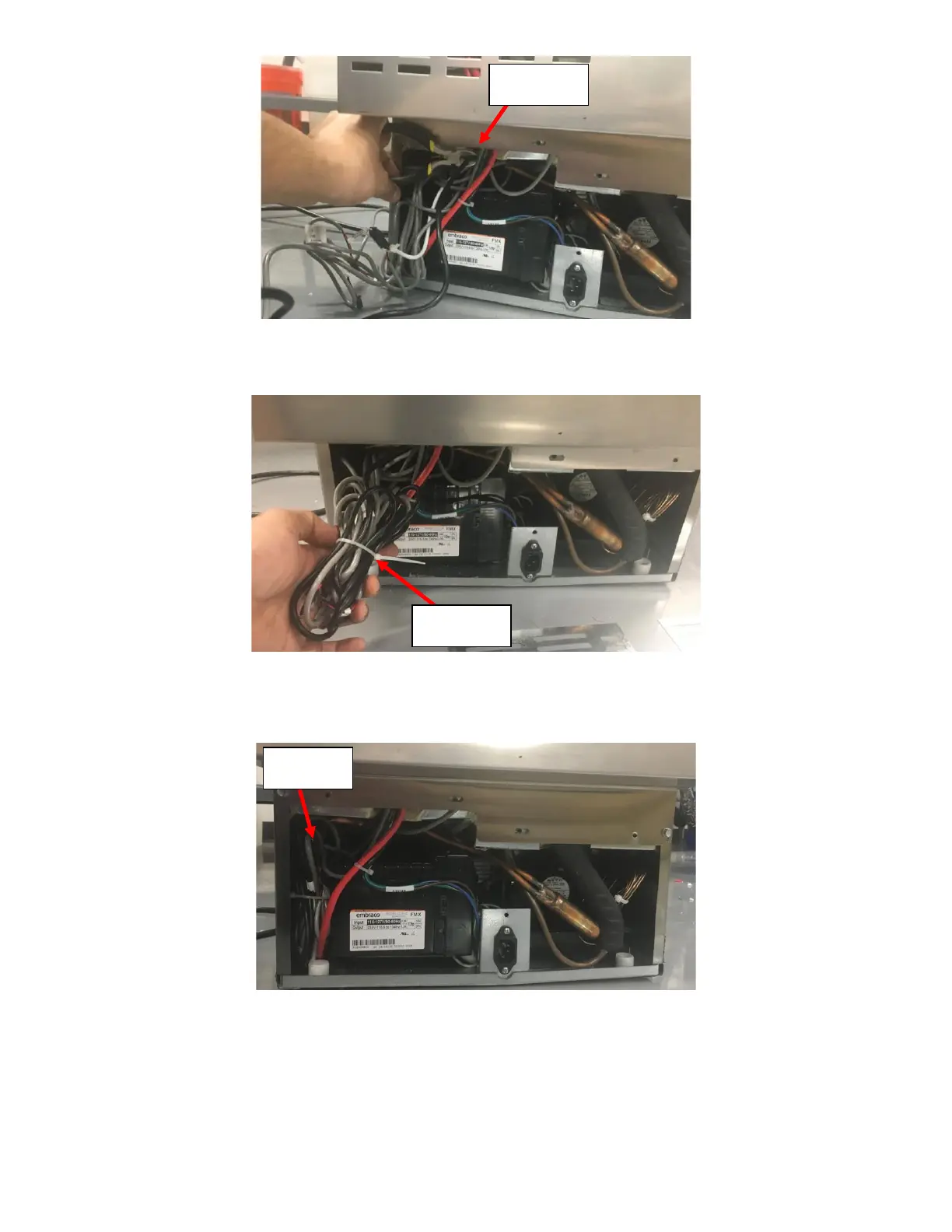

Figure 122: UI Harness connected to J3 Connector.
Figure 123: Wire Bundle formed.
Figure 124: Wire Bundle formed.
