Installation
2–20 975-0402-01-01
This guide for use by qualified installers only

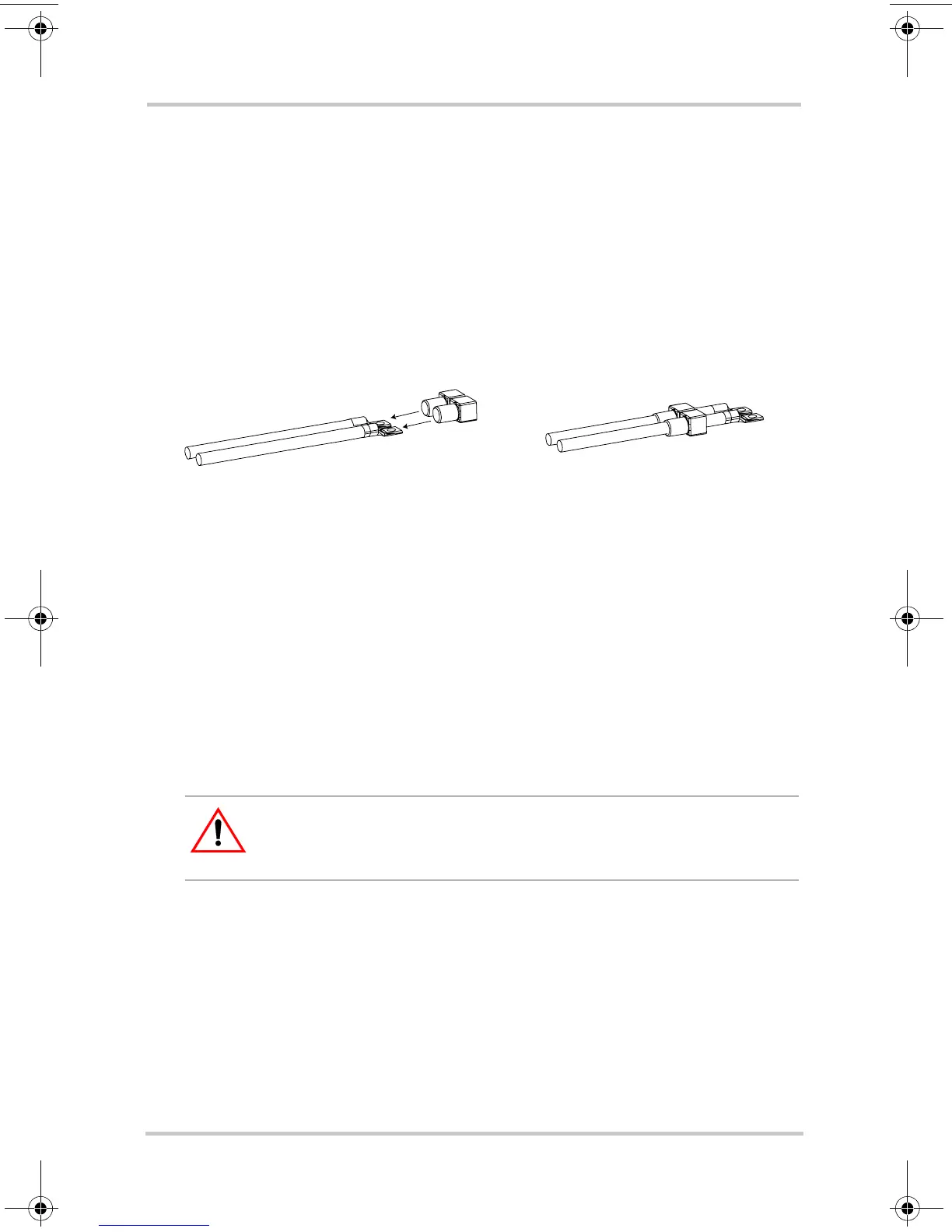

Installing the Drip Protection Rubber Boots
Xantrex recommends that you install the supplied rubber
boots over the Truecharge™ 2 Battery Charger DC terminals
to provide drip and short circuit protection.
To install rubber boots:
1. Before making the DC connections to the charger, feed
the rubber boot over the charger end of the DC cables.
2. Perform all other DC connections as described in
“Planning DC Wiring” on page 2–13.
3. After the DC cables are connected to the charger, slide
the boot up the cables and over the DC terminals. If you
are only using one battery, slide the spare boots over the
unused DC terminals.
The Truecharge™ 2 Battery Charger is provided with drip
protection rubber boots for the DC terminals.
Final DC Connections
To make the final DC connections (see Figure 2-4 on page
2–19):
1. Connect the negative cable from the negative terminal on
the battery (if you are using only one battery or bank), or
the negative ground bar or bus (if you are using more
than one battery or bank), to the negative DC terminal on
WARNING: Fire and burn hazard
Make sure that the DC fuse and circuit breaker are open.
TC2 Series BattChg Install Guide.book Page 20 Monday, June 30, 2008 3:18 PM
