Introduction
1–6 975-0402-01-01
This guide for use by qualified installers only
Rear Panel
This section describes the parts of the rear panel of the
Truecharge™ 2 Battery Charger.

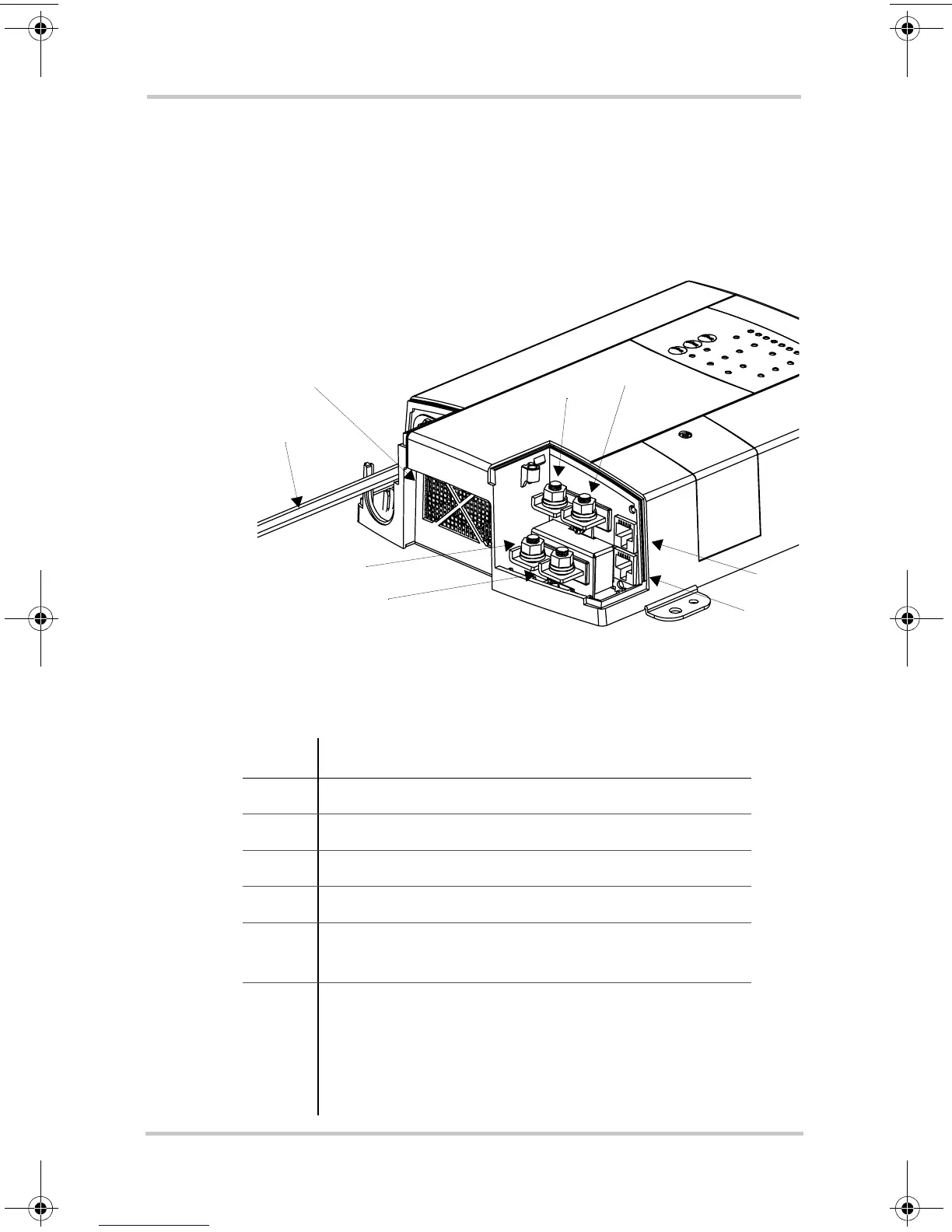

Figure 1-2
Truecharge™ 2 Battery Charger Rear Panel
Item Description
1 BTS port- battery temperature sensor port
2 Communication port - remote panel port
3 Battery positive (+) for bank 3 (6 mm stud)
4 Battery positive (+) for bank 2 (6 mm stud)
5 Battery positive (+) for bank 1 (6 mm stud)
See Important note below.
6 Battery negative (–), common for all three banks
(6 mm stud)
(common for both banks in model TC1512)
(model TC1012 has a single bank only–one positive
terminal and one negative terminal)
2
1
5
7
8
6
3
4
40 A model (TC4012) shown. Other models may vary.
