Remote Panel (Sold Separately)
975-0402-01-01 1–15
This guide for use by qualified installers only
Remote Panel (Sold Separately)
This section describes the parts of the optional remote panel
(Part number: 808-8040-00) of the Truecharge™ 2 Battery
Charger. The remote panel can be mounted using a
communications cable up to 15 m (50 ft) from the
Truecharge™ 2 Battery Charger connected via the
communication port for convenience.
The Remote Panel can be used to:
• Program the charger for battery type and temperature
• Set the charger mode (two or three-stage charging)
• Activate and terminate equalization (not allowed for
GEL and AGM)
Important:
A “press and hold” action on any panel button
means that the button must be held down for more than three
seconds then released in order to send the instruction. A “press”
action on any panel button means that the button must be pressed
and released before two seconds have elapsed.

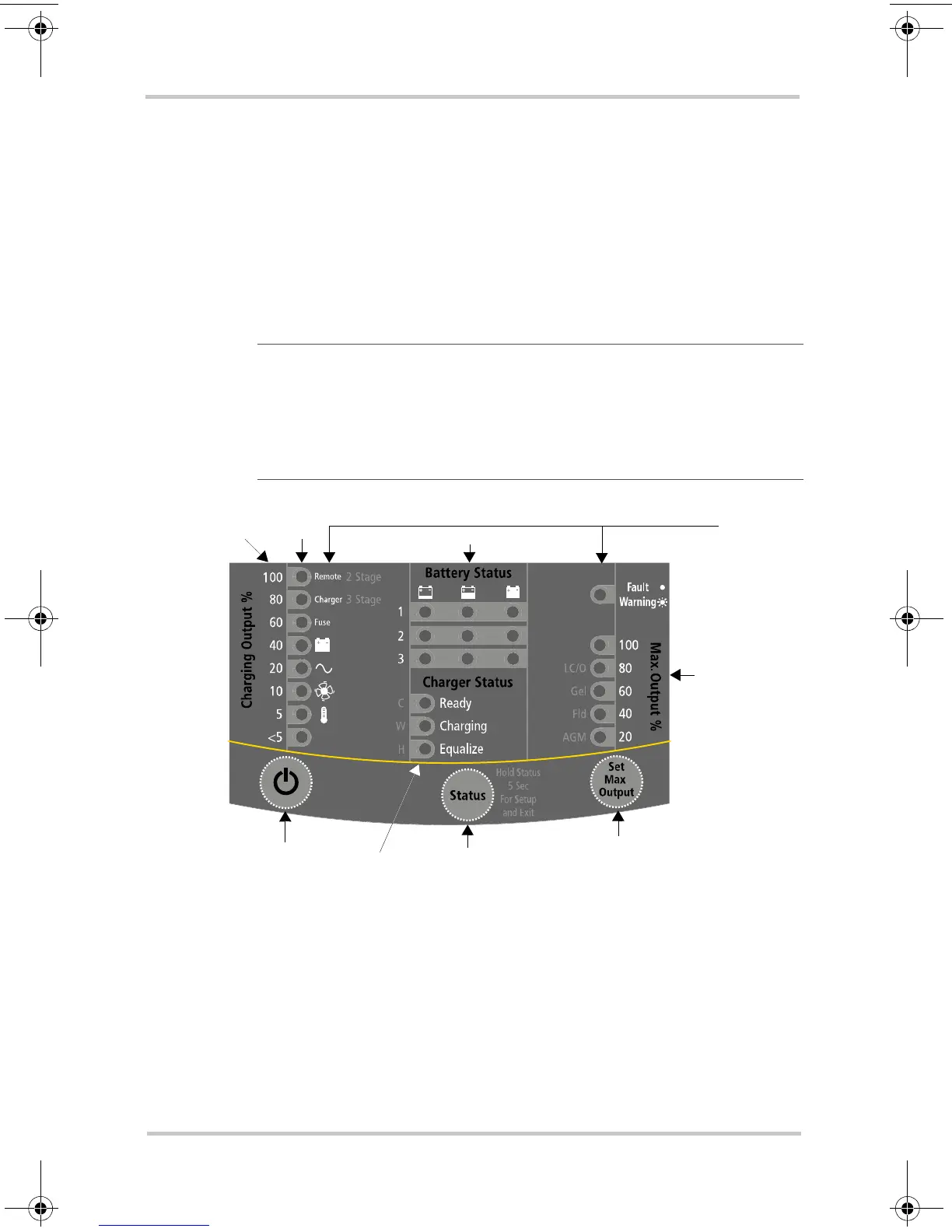

Figure 1-7
Truecharge™ 2 Battery Charger Remote Panel (optional)
1
2a
5
7
4
6
3
8
2
6a
