Installation
2–2 975-0402-01-01
This guide for use by qualified installers only
Preparing for Installation
The Truecharge™ 2 Battery Charger is designed to be
permanently mounted. Figure 2-1 shows a typical installation
with three batteries, a battery temperature sensor (BTS) and a
remote panel (both optional). It also shows the AC and DC
wiring and protection devices required for a typical
installation. Means of disconnection must be incorporated
into the fixed wiring, in accordance with the electrical code
that governs each installation.
WARNING
The battery charger must be properly installed with in accordance
with all local and application-specific codes and ordinances before
it is used.

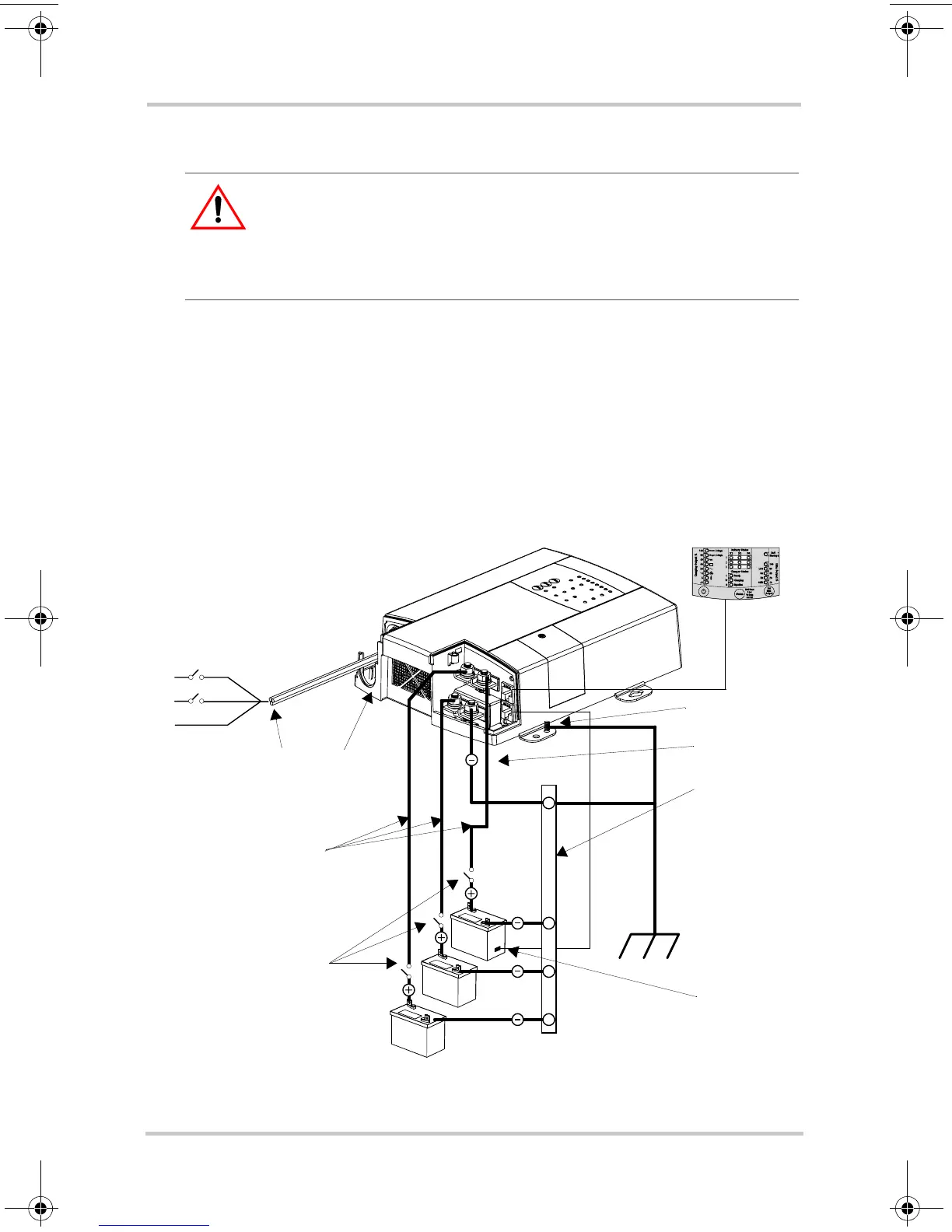

Figure 2-1
Typical Truecharge™ 2 Battery Charger System Installation
L
N
G
NOTE: Not to scale. For illustration purposes only.
5
1
2
3
4
6
6
6
7
8
9
10
TC2 Series BattChg Install Guide.book Page 2 Monday, June 30, 2008 3:18 PM
