This guide for use by qualified installers only
Onboard Control and Status Display Panel
This section describes the parts of the onboard control and
status display panel of the Truecharge™ 2 Battery Charger.
To reduce current draw from the connected battery when AC
power is not present, the panel’s LED control and status
lights are automatically turned off and the buttons are
disabled.
Important:
A “press and hold” action on any panel button
means that the button must be held down for more than three
seconds then released in order to send the instruction. A “press”
action on any panel button means that the button must be pressed
and released before two seconds have elapsed.

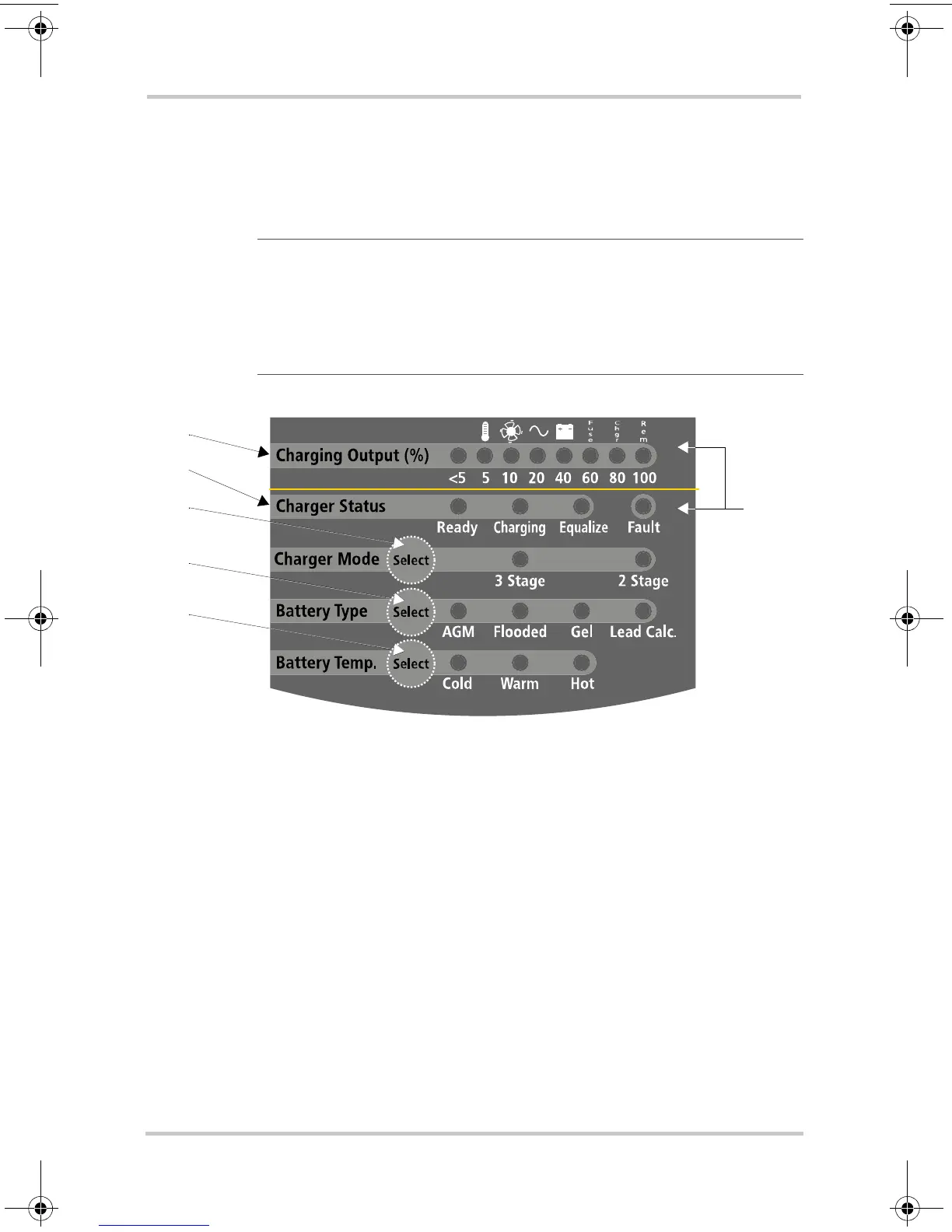

Figure 1-3
Onboard Control and Status Display Panel
2
4
5
6
1
3
