Xantrex XDC User Manual

Remote Operation
Making Connections for Remote Control
Release 3.0 107
Making Connections for Remote Control
See Figure 4.1 for the locations of the RS-232, GPIB and CANbus connectors and
the locations and the pin numbers of the User Lines and the Analog Programming
Lines. GPIB and CANbus are optional.

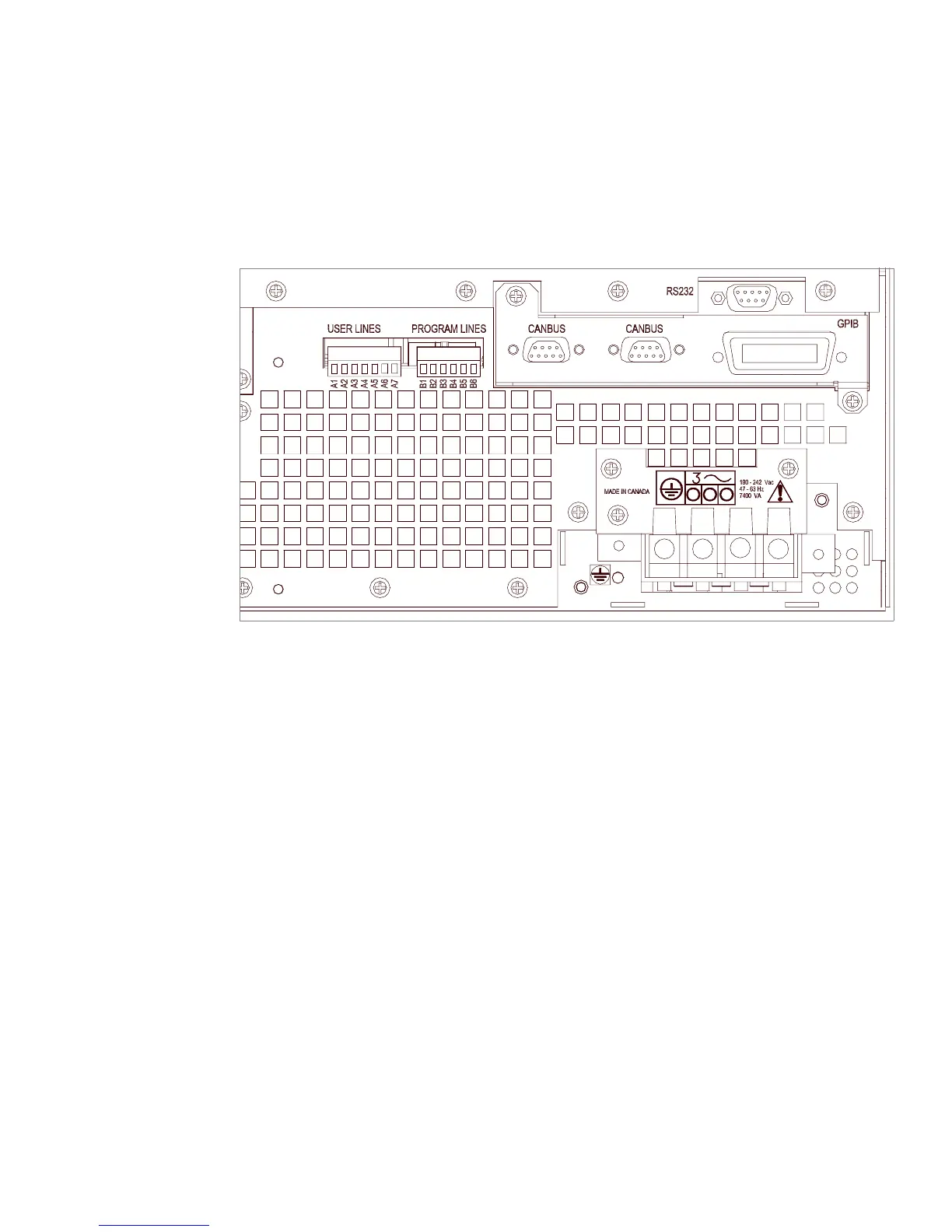

Figure 4.1 View of Remote Interface Connections
Removable mating connectors are supplied for the user lines and program lines,
while the mating connectors and cables for the other ports are supplied by the user.
