About The XDC Power Supply
Rear Panel
30 Operating Manual for XDC Series Power Supply
Rear Panel

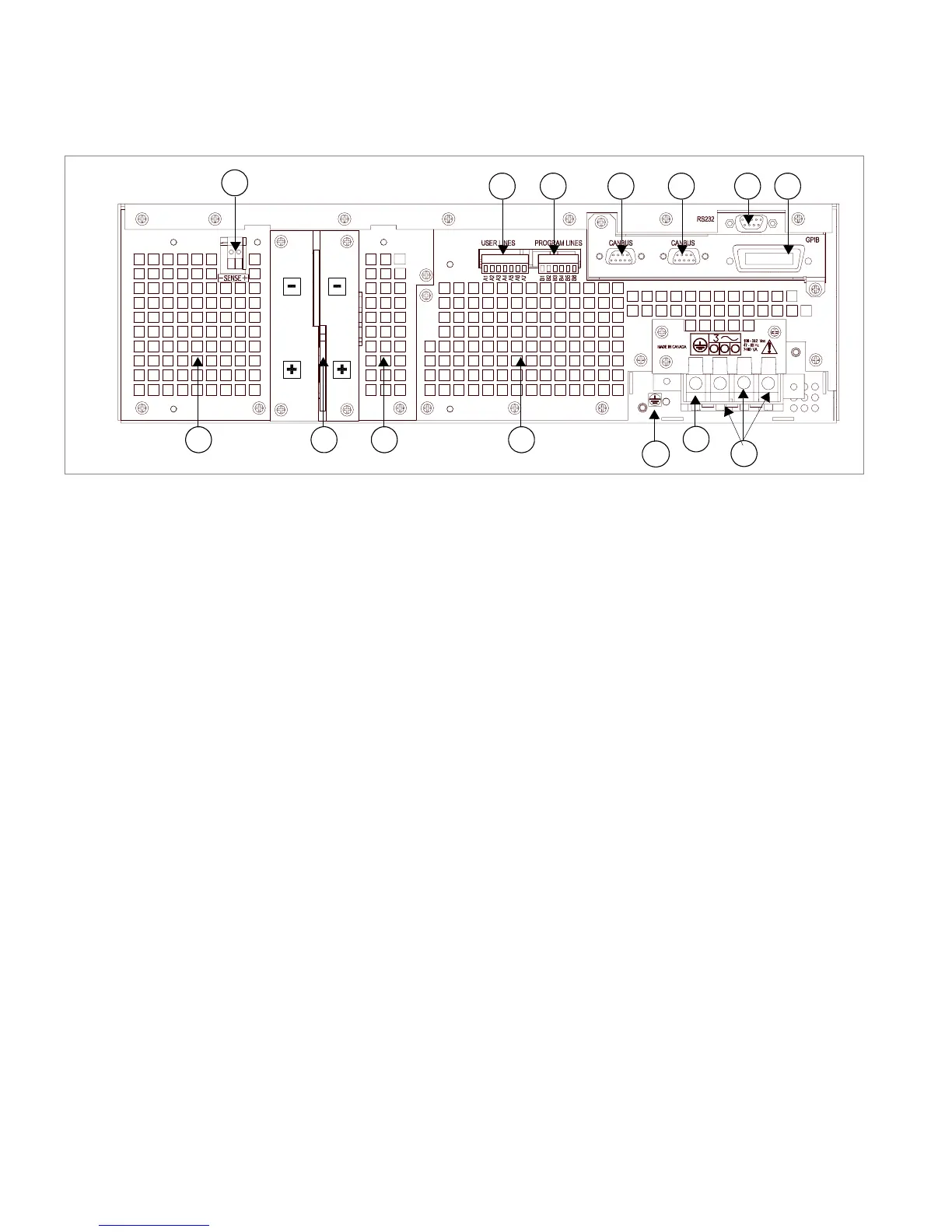

Figure 1.6 Rear Panel (6000 Watt low and medium output shown)
1. Fan Exhaust Vents: Do not obstruct.
2. Remote Sensing Ports: From the rear point of view, left is negative; right is
positive.
3. DC Output: Bus bars are shown. Terminal blocks are used for higher voltages
(300 and 600 Vdc only).
4. Auxiliary Status Lines, External Interlock, and Trigger Input
5. Analog Program and Readback
6. CANbus Port: For current sharing or multichannel operation (optional for
6000 Watt units)
7. RS-232 Connector
8. GPIB (optional)
9. Protective Conductor Ground Screw
10. AC Input
11. Chassis ground stud
1 3
2
4 5 6 7
9
10
1 1
86
1
1
