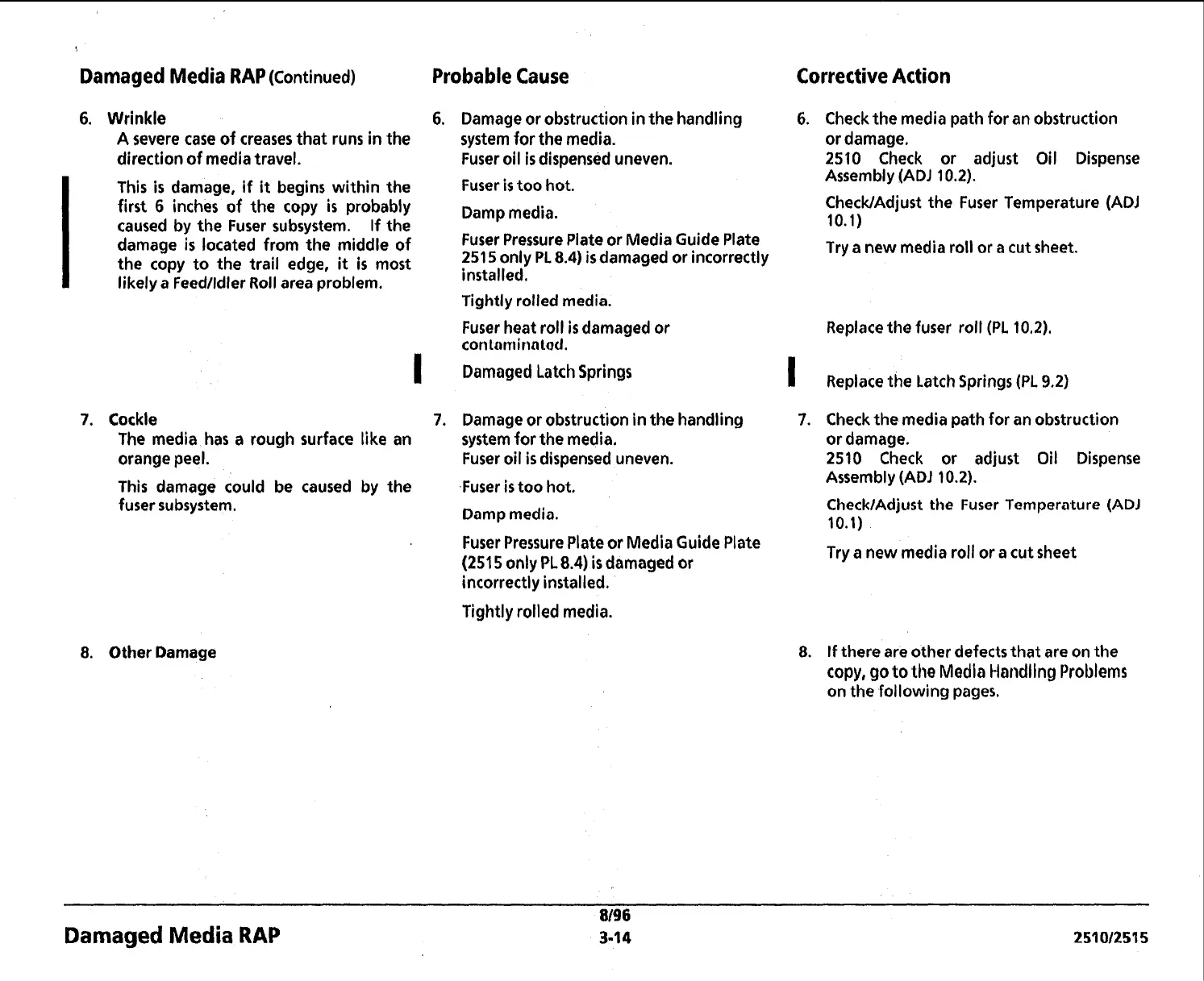

Damaged Media RAP(Continued) Probable Cause Corrective Action
Wrinkle
A severe case of creases that runs in the
direction of media travel.
This
is damage, if it begins within the
first
6 inches of the copy is probably
caused by the Fuser subsystem. If the
damage
is located from the middle of
the copy to the trail edge,
it is most
likely a Feedlldler Roll area problem.
Damage or obstruction in the handling
system for the media.
Fuser oil
is dispensed uneven.
Fuser
is too hot.
Damp media.
Fuser Pressure Plate or Media Guide Plate
251 5 only PL
8.4) is damaged or incorrectly
installed.
Tightly rolled media.
Fuser heat roll
is damaged or
conlnrninnlad.
( Damaged Latch Springs
7. Cockle 7. Damage or obstruction in the handling
The media has a rough surface like an
system for the media.
orange peel. Fuser oil
is dispensed uneven.
This damage could be caused by the .Fuser
is too hot.
fuser subsystem.
Damp media.
8. Other Damage
Fuser Pressure Plate or Media Guide Plate
(251 5 only PL 8.4) is damaged or
incorrectly installed.
Tightly rolled media.
Check the media path for an obstruction
or damage.
2510 Check or adjust Oil Dispense
Assembly
(ADJ 10.2).
ChecWAdjust the Fuser Temperature
(ADJ
10.1)
Try a new media roll or
a cut sheet.
Replace the fuser roll (PL 10.2).
I
Replace the Latch Springs (PL 9.2)
7. Check the media path for an obstruction
or damage.
2510 Check or adjust Oil Dispense
Assembly
(ADJ 10.2).
ChecktAdjust
the Fuser Temperature (ADJ
10.1)
Try a new media roll or a cut sheet
8. If there are other defects that are on the
copy, go
to the Medlo Hondllng Problems
on the following pages.
819 6
Damaged Media RAP 3-14 251012515
