\REP 10.6 Media Deflectors CAUTION
(251 0 Wnag 252 and 251 5)
STEP 3 B: Handle the Media Deflector
Clips with care in order to
avoid bending
(Parts List on PL 10.5
Removal
WARNING:
DISCONNECT THE POWER CORD.
1. Remove the oil dispense assembly (REP
10.5).
them.
2. (Figure 1): Remove the media deflectors.
REMOVE MEDIA
DEFLECTORS
(2)

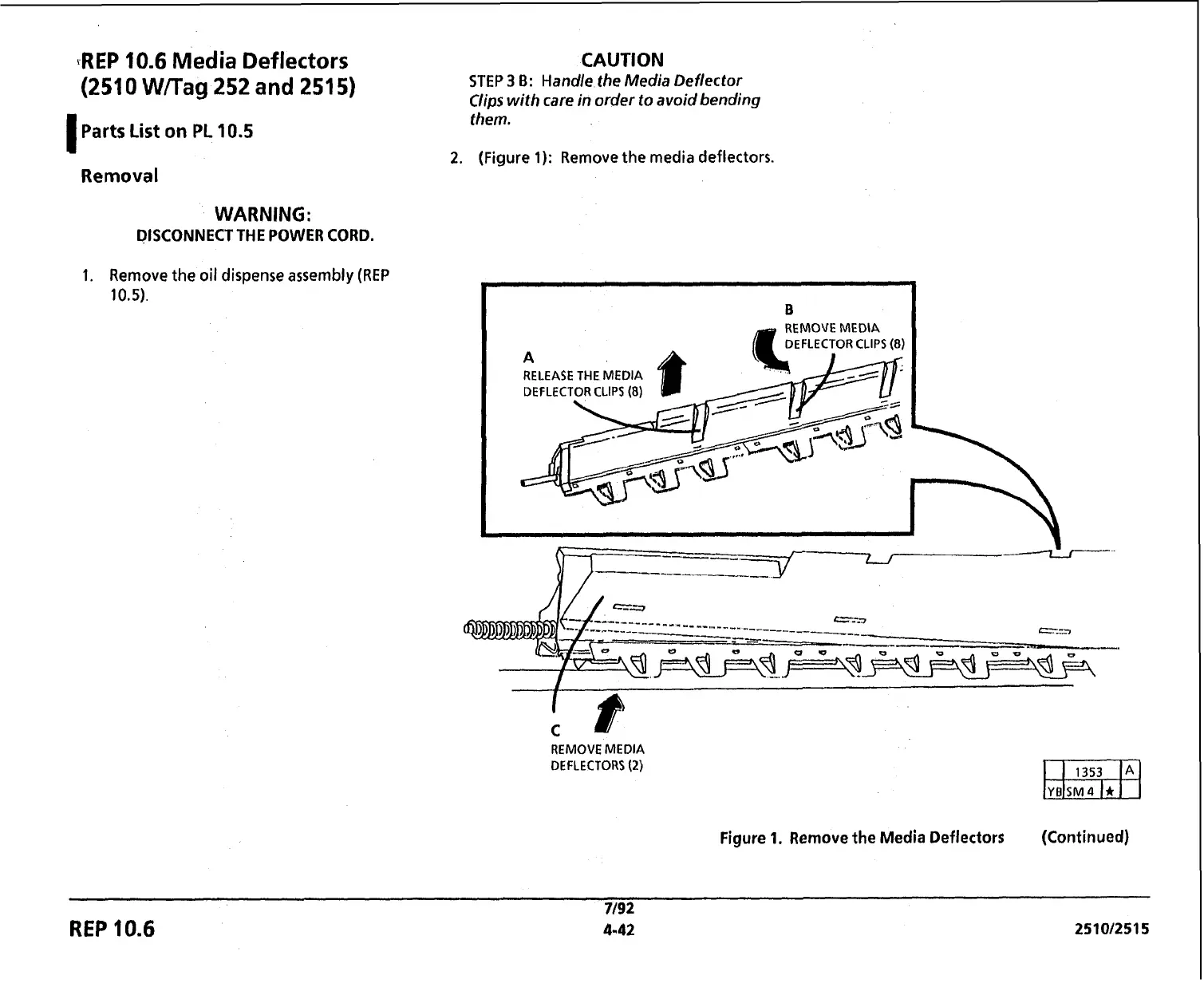

Figure 1. Remove the Media Deflectors
(Continued)
REP 10.6 4-42 25101251 5
