Xerox 2510 User Manual

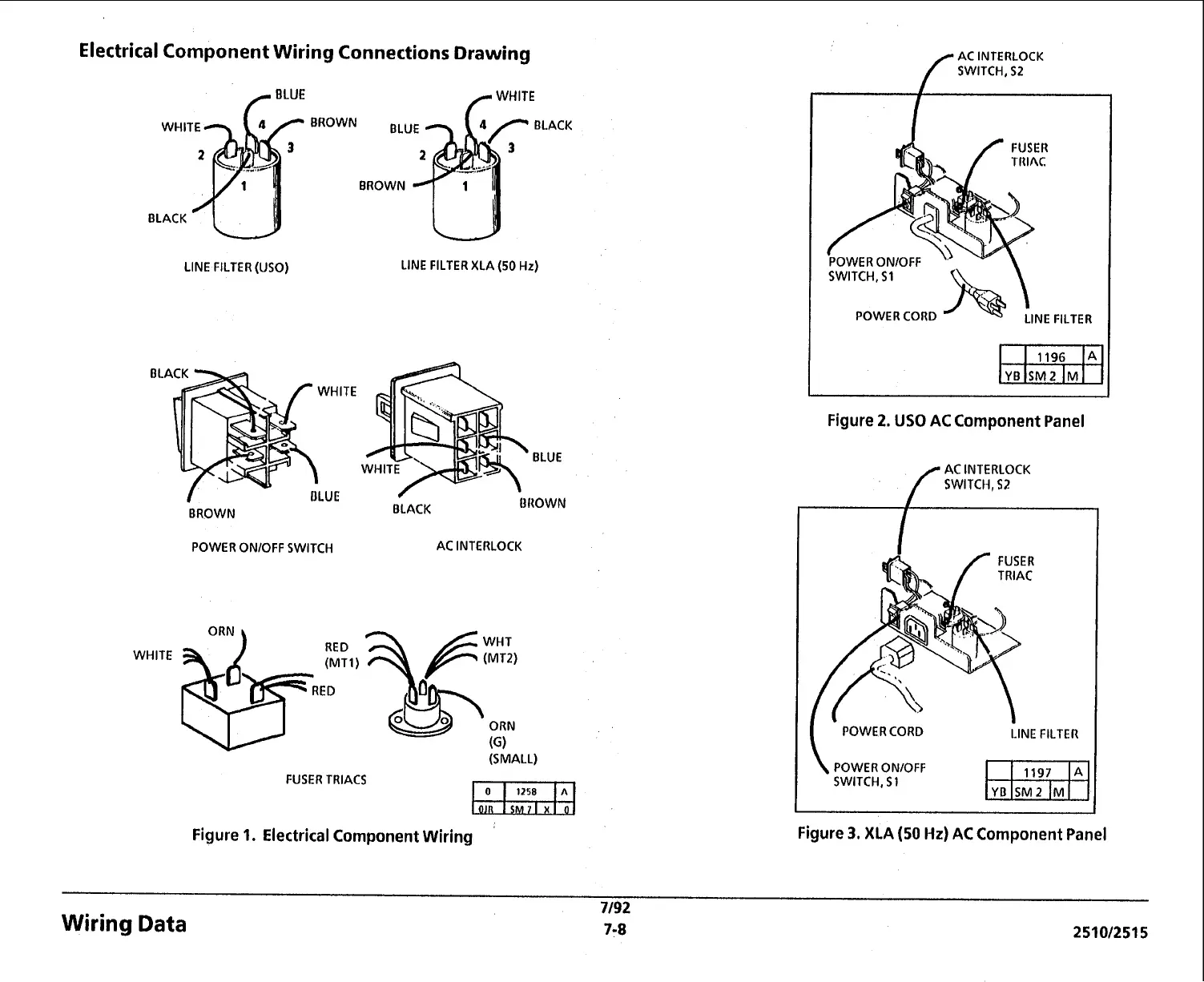

Electrical Component Wiring Connections Drawing
/WHITE
BLACK
LINE FILTER (USO)
LINE FILTER XLA
(50 Hz)
BLA
BLACK
BROWN
POWER ONlOFF SWITCH AC INTERLOCK
(SMALL)
FUSER TRIACS
Figure 1. Electrical Component Wiring
AC INTERLOCK
SWITCH, $2
SWITCH, Sl
POWER CORD
LlNE FILTER
Figure 2. US0 AC Component Panel
AC INTERLOCK
SWITCH,
52
\
LlNE FILTER
\ POWER ONIOFF
SWITCH, St
Figure 3. XLA (50 Hz) AC Component Panel
7/92
Wiring Data 7-8 2510~2515
