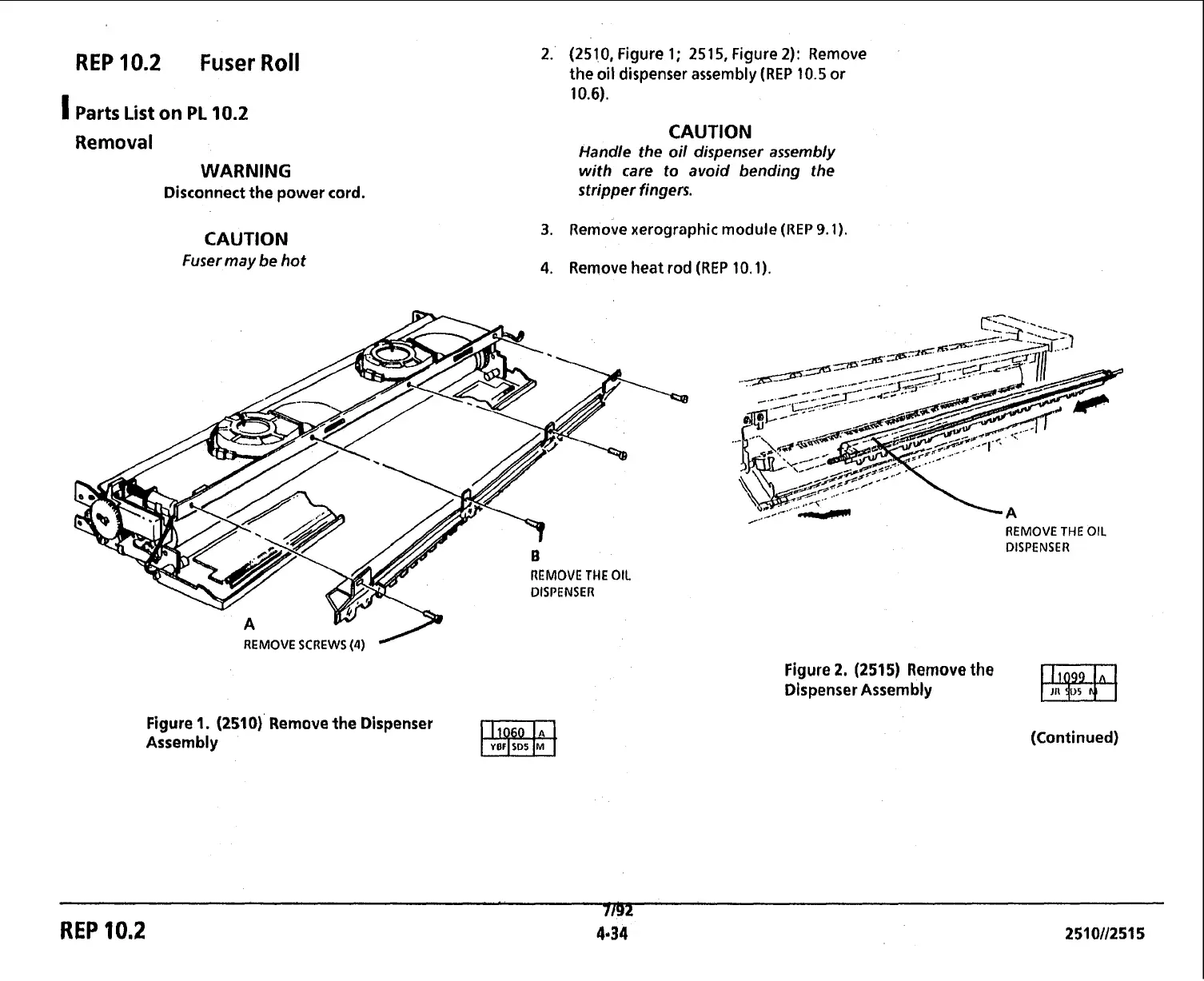

REP 10.2 Fuser Roll
I Parts List on PL 10.2
Removal
WARNING
Disconnect the power cord.
CAUTION
Fuser may be hot
2. (2510, Figure 1; 2515, Figure 2): Remove
the oil dispenser assembly (REP 10.5 or
10.6).
CAUTION
Handle the oil dispenser assembly
with care to avoid bending the
stripper fingers.
3. Remove xerographic module (REP 9.1).
4. Remove heat rod (REP 10.1).
V
REMOVE THE OIL
DISPENSER
REMOVE SCREWS
(4) (
Figure I. (2510) Remove the Dispenser
Assembly
Figure 2. (251 5) Remove the
Dispenser Assembly
REMOVE THE OIL
DISPENSER
(Continued)
REP 10.2
