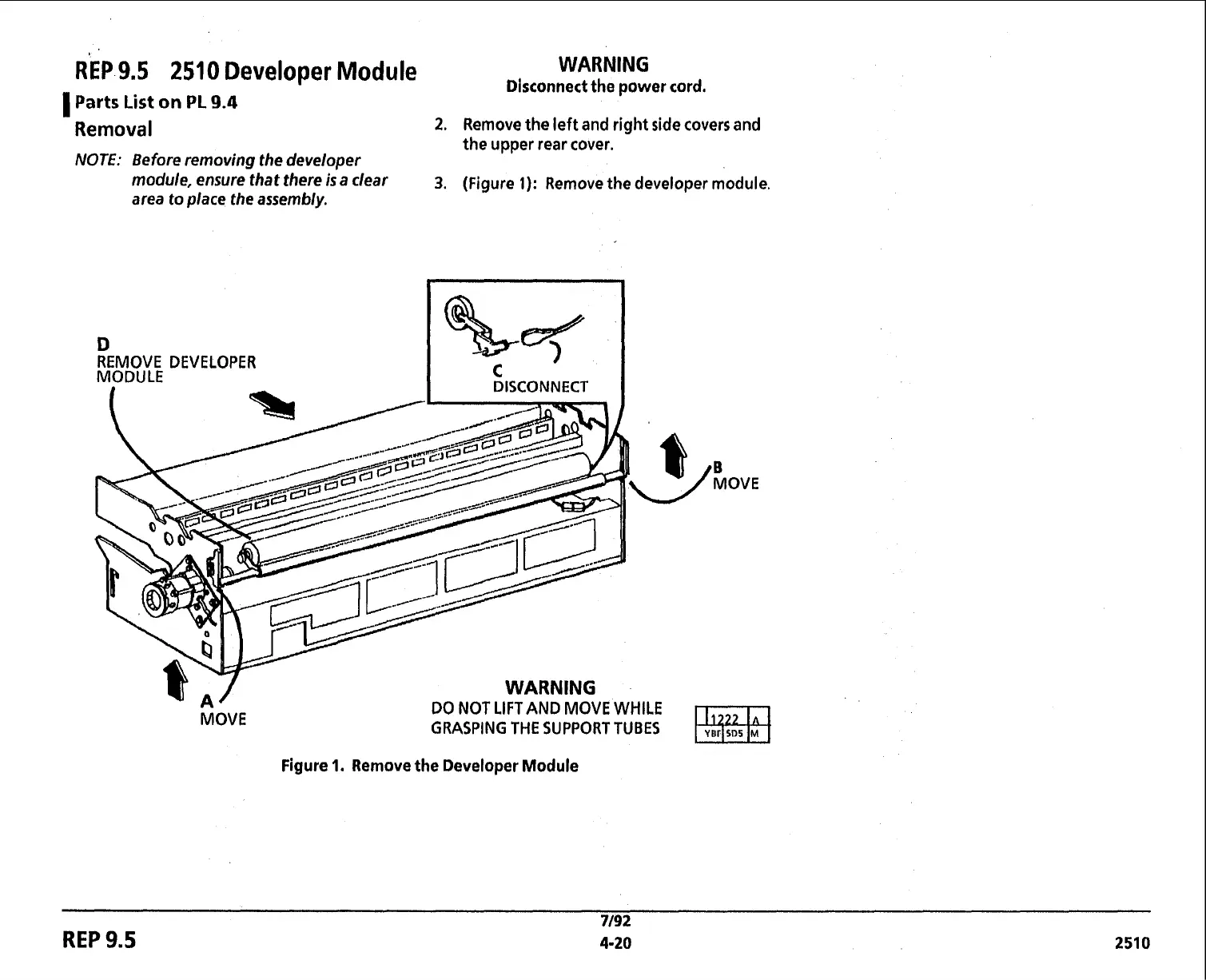

REP9.5 2510 Developer Module
1 Parts List on PL 9.4
WARNING
Disconnect the power cord.
I
Removal
2. Remove the left and right side covers and
the upper rear cover.
NOTE: Before removing the developer
module, ensure
that there is a clear
3. (Fiaure 1): Remove the developer module.
. .-
area to place the assembly.
D
REMOVE DEVELOPER
nnnn111 e
I DISCONNECT
MOVE
WARNING
DO NOT LIFT AND MOVE WHILE
GRASPING THE SUPPORT TUBES
Ynr SDS M
Figure 1. Remove the Developer Module
REP 9.5
